Did you know? Calculate bolt force accurately

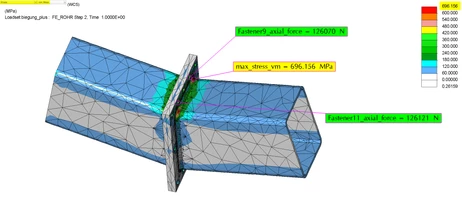

The exact calculation of the bolt force in Simulate is only possible by means of contact analysis:




    4 replies

    ProFeature16-Pearl
    16-Pearl
    Mar 6, 2025 4:12 PM UTC

    Hi @skunks

    Unfortunately, bolts cannot be defined by pattern, so the user must define them individually.

    Translate
    skunks
    skunks19-TanzaniteAuthor
    19-Tanzanite
    Mar 7, 2025 5:22 AM UTC

    yes, but a great help:



    Ctrl+C, Ctrl+V

    Translate
    skunks
    skunks19-TanzaniteAuthor
    19-Tanzanite
    Apr 1, 2025 9:49 AM UTC

    Here's another, smaller example

    Translate
    skunks
    skunks19-TanzaniteAuthor
    19-Tanzanite
    Apr 22, 2025 12:34 PM UTC

    Here is an example of a pylon base plate



    (PDF + Creo / Chapter 4)

    Translate
