Discussion about p and h refinement in meshing.

  • June 26, 2019
  • 2 replies
  • 2807 views

As I am studying some basics of the meshing in FEM.



I found the two kinds on refinement done in FEM Meshing. During the Simulation i have seen the Auto Gem Controls in which we can manipulate the size, length etc.

Is there any way of p refinement in Creo?

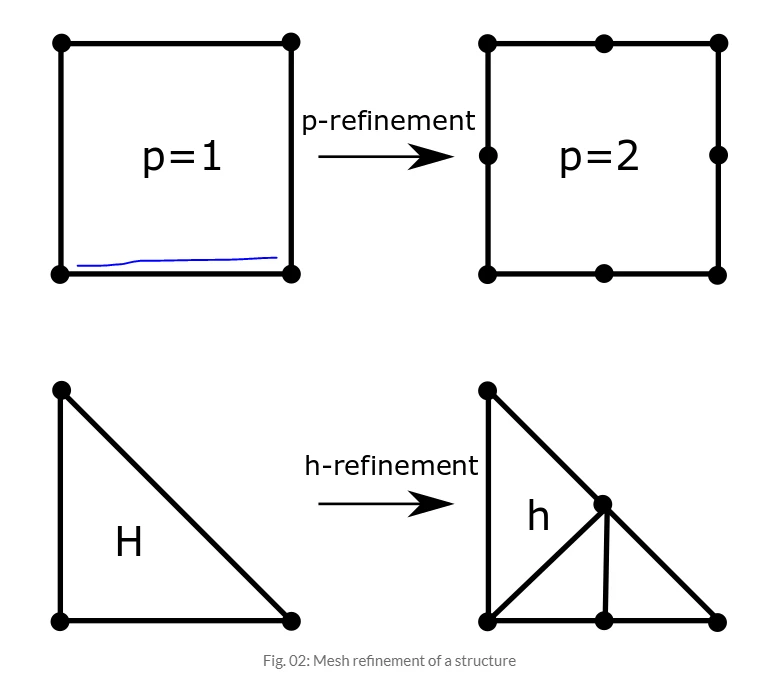

or it does it automatically during the calculation?image.png

Best answer by SweetPeasHub

Yes you can P refine both manual and automatic.

Here is where the settings are made.

Three Methods...

Single pass adaptive, runs two passes, adjusting the order between automatically.

Quick Check, runs order P= 3

Multipass adaptive, runs several passes starting with minimum order and increasing order where needed up to the max order.  The convergence measures and percent can be controlled.



My manual method uses Multipass adaptive.

Set minimum to 2, maximum to 2 to run at P= 2

Set minimum to 3, maximum to 3 to run at P = 3.  etcetera.



The limitation with manual adaptive is every element has the same order.

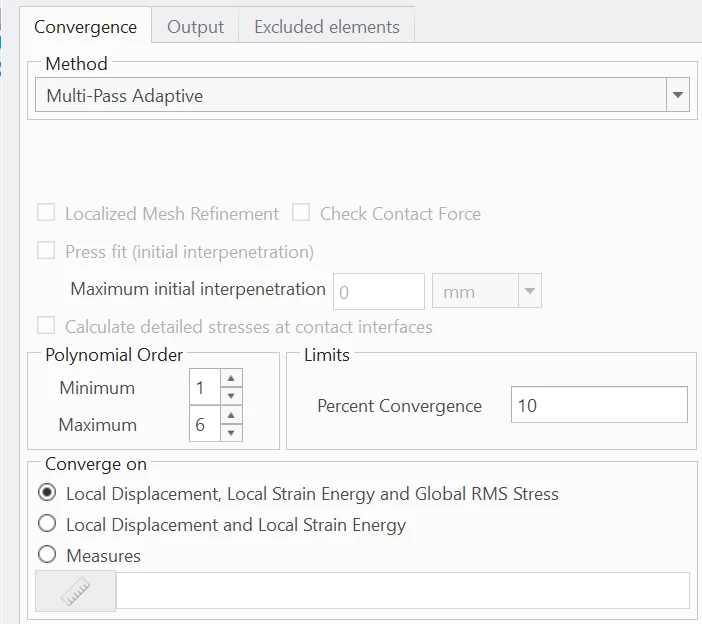

P order settingsP order settings

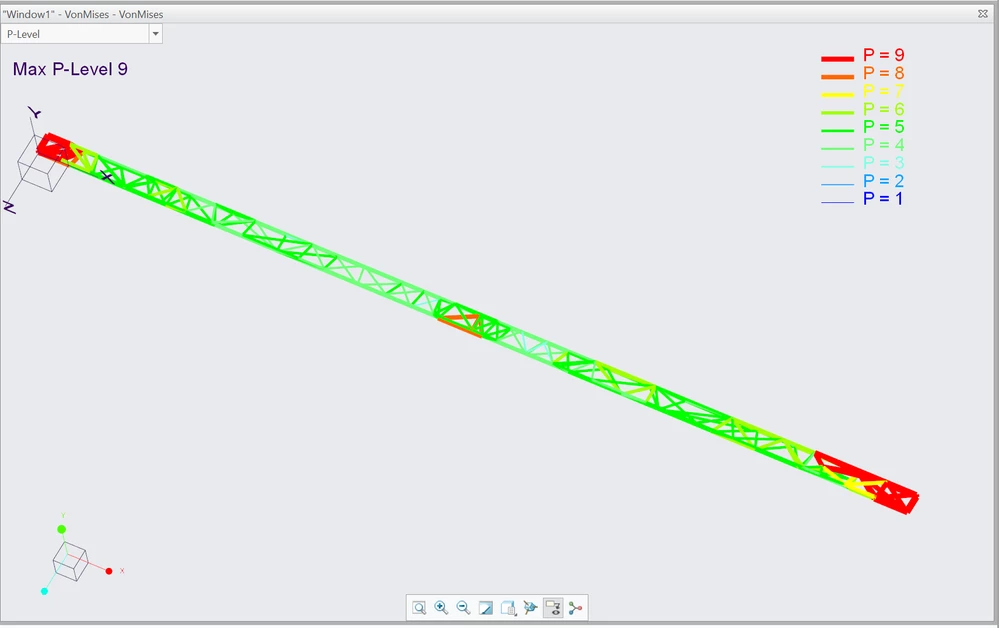

Also you can plot the P-orders used.

P Level PlotP Level Plot





2 replies

S
SweetPeasHub17-PeridotAnswer
17-Peridot
June 26, 2019

Yes you can P refine both manual and automatic.

Here is where the settings are made.

Three Methods...

Single pass adaptive, runs two passes, adjusting the order between automatically.

Quick Check, runs order P= 3

Multipass adaptive, runs several passes starting with minimum order and increasing order where needed up to the max order.  The convergence measures and percent can be controlled.



My manual method uses Multipass adaptive.

Set minimum to 2, maximum to 2 to run at P= 2

Set minimum to 3, maximum to 3 to run at P = 3.  etcetera.



The limitation with manual adaptive is every element has the same order.







P order settingsP order settings

Also you can plot the P-orders used.

P Level PlotP Level Plot





    skunks
    skunks19-Tanzanite
    19-Tanzanite
    June 27, 2019

    Babuska, I., und Suri, M. "The p- and h-p Versions of the Finite Element Method, an Overview." Computer Methods in Applied Mechanics and Engineering. 80 (1990): 5-26.
    Babuska, I., und Szabo, B. "On the Rates of Convergency of the Finite Element Method." International Journal for Numerical Methods in Engineering. 18 (1982): 323-341.
    Babuska, I., Szabo, B., und Katz, I. N. "The p-Version of the Finite Element Method." Society for Industrial and Applied Mathematics. (1981): 515-545.
    Szabo, B. "Geometric Idealizations in Finite Element Computations." Communications in Applied Numerical Methods. 4 (1988): 393-400.
    Szabo, B. "Mesh Design for the p-Version of the Finite Element Method." Computer Methods in Applied Mechanics and Engineering. 55 (1986): 181-197.
    Szabo, Barna, und Ivo Babuska. Finite Element Analysis. New York:Wiley, 1991.
    Szabo, B., und Sahrmann, G. "Hierarchic Plate and Shell Models Based on p-Extension." International Journal for Numerical Methods in Engineering. 26 (1988): 1855-1881.
