"Drainage slope" in Creo?

  • December 2, 2014
  • 2 replies
  • 2907 views

Hello all!



First time poster here and also a recent graduate, so I might not even be using the proper terminology.



I'm making a series of tanks that share walls, with "built-in drainage" since it'll be 3D-printed (see attached file). What I'm trying to add is a slope from the edge of the drain at the bottom of each tank to the edge of all 4 sides of each tank. I want the "rise" of this slope to be 5mm, though this doesn't have to be exact, or I can calculate an angle, etc.



I have absolutely no clue where to start. What function do I use? My "go-to" is Round or Chamfer, but those don't give me control over what the slope is, since this will be rather gentle.





Thank you in advance!!!







Paul


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MartinHanak

Paul,

I added Revolved surface and Solidify feature in Creo Parametric 3.0 M010.

Martin Hanak

2 replies

P
ptc-53663871-VisitorAuthor
1-Visitor
December 2, 2014

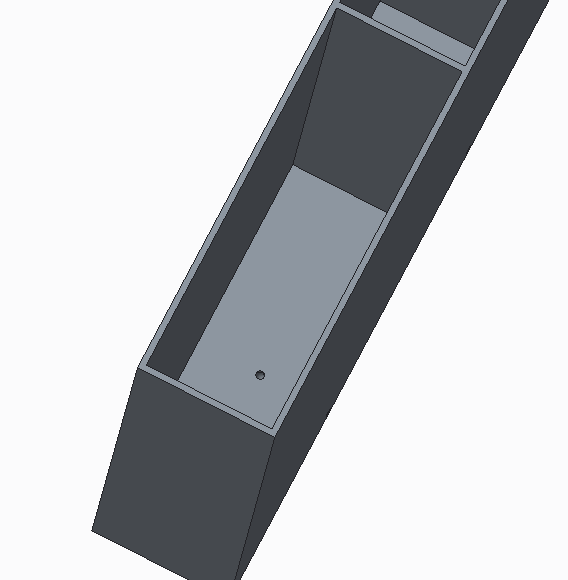

* I should add that my files are created in the full version of Creo, not the student version so you'll be able to open it. Also, to make things easier, I'm putting a screenshot as well.

I think that what I'm trying to do can be best described as a shower drain at the center of a shower stall.


M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
December 2, 2014

Paul,

I added Revolved surface and Solidify feature in Creo Parametric 3.0 M010.

Martin Hanak

    P
    ptc-53663871-VisitorAuthor
    1-Visitor
    December 2, 2014

    Martin,

    You are a saint. Thank you! (I too am running Creo Parametric 3.0 M010).


    I see you added the feature in the biggest tank, I'll add in the features for the rest. Could you give me a little bit of a walkthrough on how to do this? (teach a man to fish.. lol)

    Many, many thanks again and in advance!

    M
    MartinHanak24-Ruby III
    24-Ruby III
    December 3, 2014

    Paul,

    I am sorry I do not have enough time to create detailed tutorial for you. I can provide you a couple of tips...

    If you want to know how specific feature is built, select it on Model Tree, press right mouse button and use Edit Definition command. Then examine feature section and feature settings.

    Revolve feature:

    • it is created as SURFACE feature - Surface button is pressed in feature UI
    • section is related to the hole you made in tank bottom
    • diameter dimension value must ensure that the surface goes beyond the outline of tank bottom (reorient the model to see it from TOP)

    Solidify feature:

    • uses Revolved surface as reference
    • is adding material under Revolved surface

    Martin Hanak
