Hello,

I don't undestand why Simulate don't save the exploded views...

What is the correct procedure to it?



Thank you

Best answer by SweetPeasHub

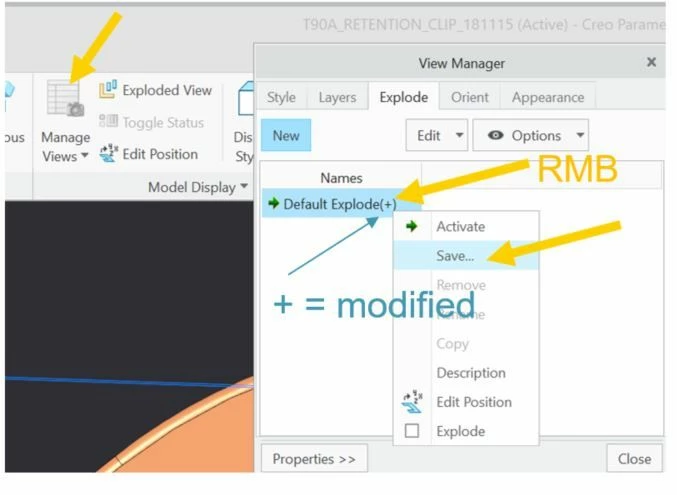

Only the active (green arrow) will show in simulate results viewing.  The exploded view must be saved and active before simulating.











1 reply

S
SweetPeasHub17-PeridotAnswer
17-Peridot
November 21, 2018


Only the active (green arrow) will show in simulate results viewing.  The exploded view must be saved and active before simulating.
