EZ Tolerance Radial stackup problem

  • September 12, 2023
  • 1 reply
  • 2859 views

I use Creo Parametric 7.0.8.0.

I have a problem with EZ Tolerance extension, my problem is described bellow.

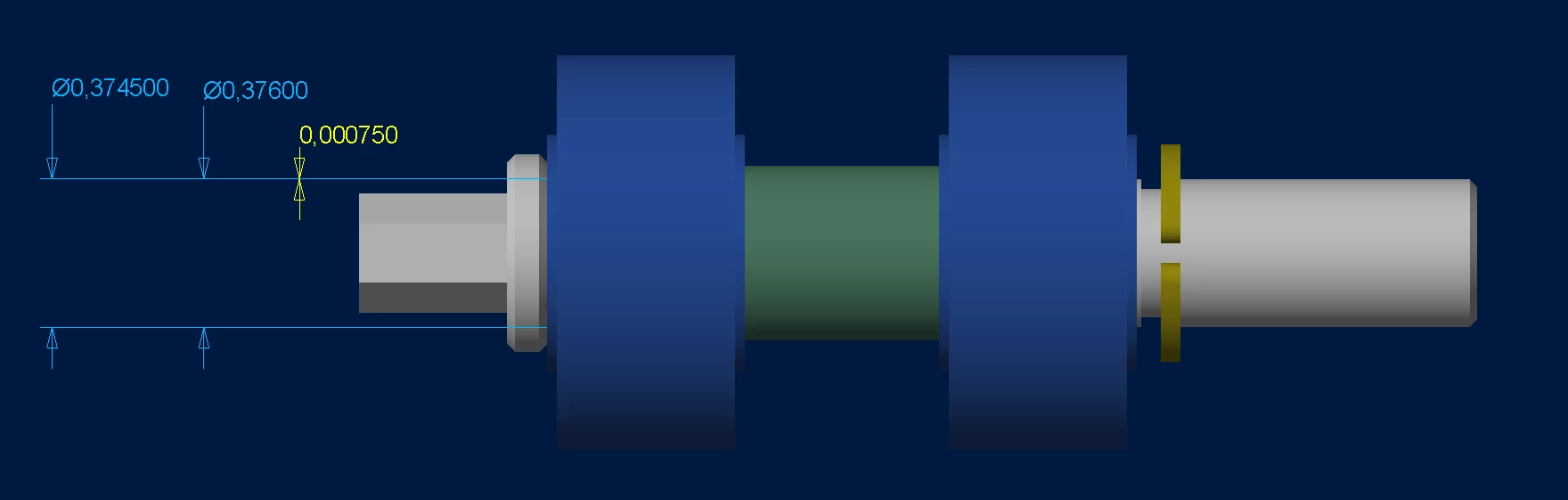

 I was using set of a shaft and a bearring with a hole, firstly I calculated it by hand ańd then with EZ Tol., but the results were not same.

Here are my calculations:

1. Nominal Clearence

Hole-Shaft=(0.3760-0.3745)/2= 0.00075 mm

2. Maximal clearence


3. Minimal clearence

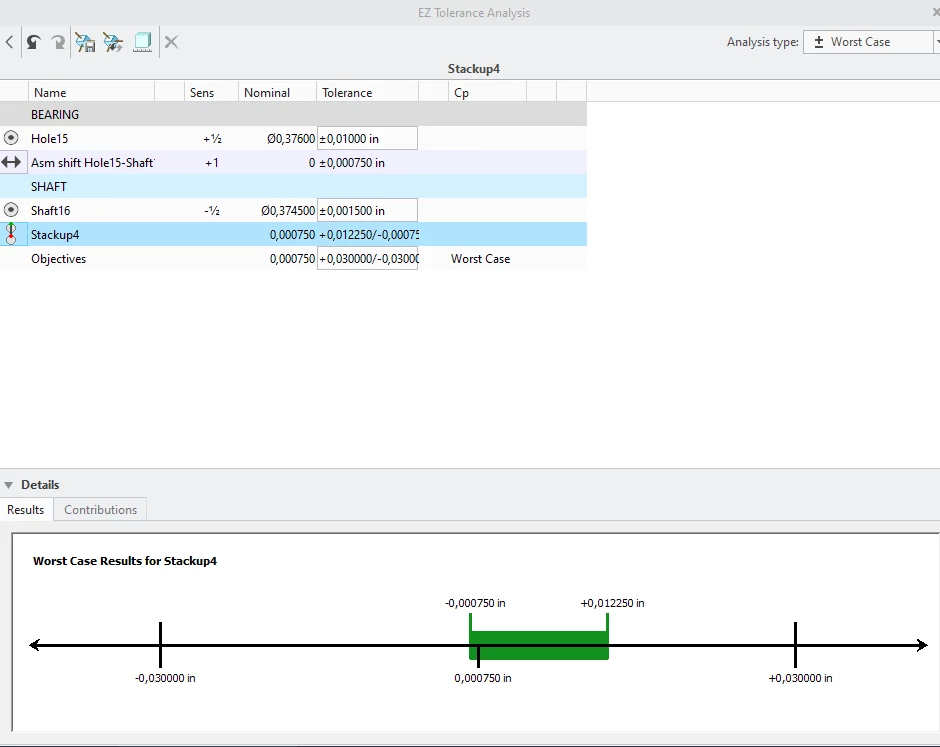

EZ Tol did the Nominal clearence good, but not the min/max clearence. (I attached some pictures with the assembly).

Thank you.





Best answer by RŠ_10780990

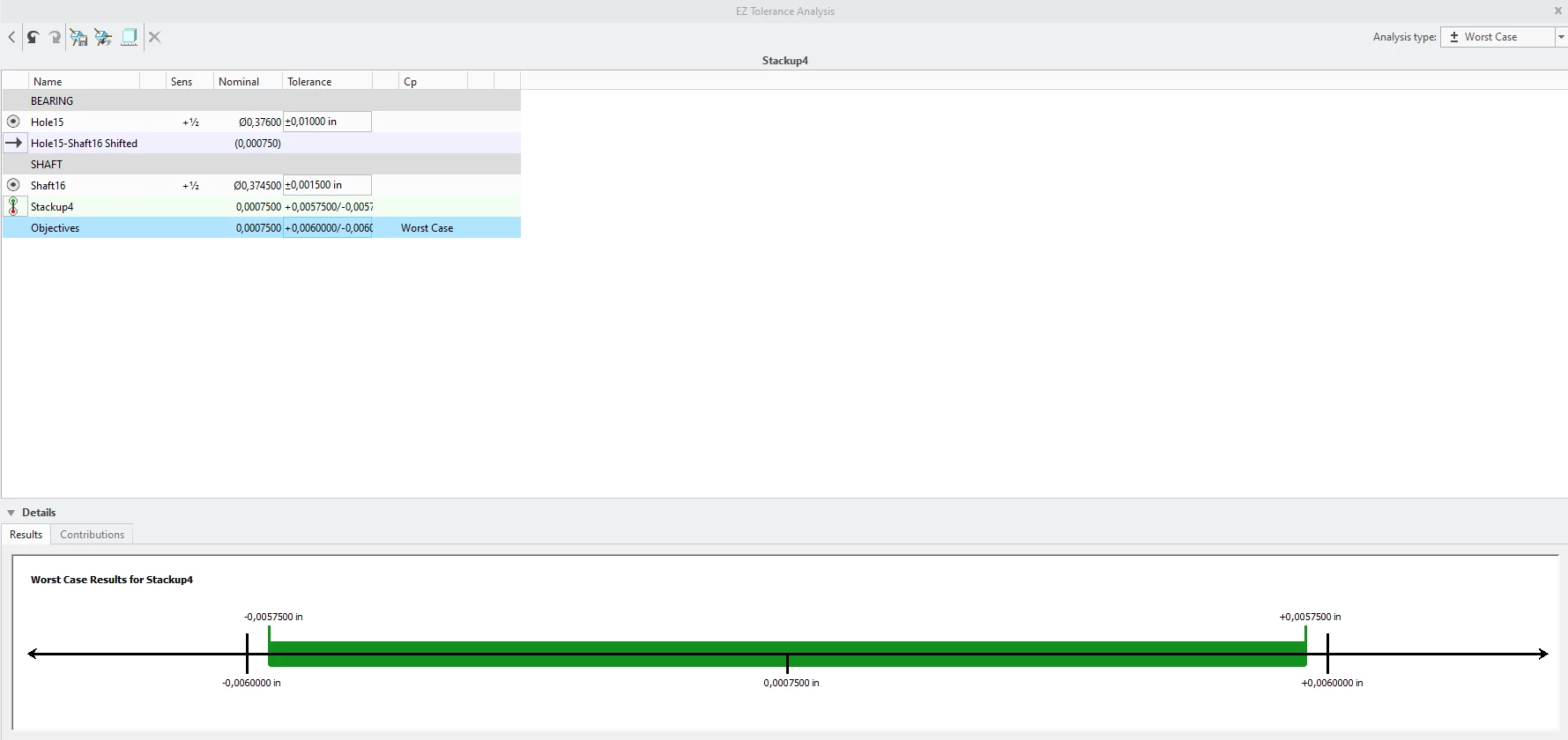

I had to set Assembly Shift to Maximize and Attachment to CENTER-CENTER and then it calculated to be 0.00075 +/- 0,005750, which is right. Thanks anyway 🙂







1 reply

S
SweetPeasHub17-Peridot
17-Peridot
September 12, 2023

Is it possible that your EZ tolerance setup includes positional tolerance and your hand calculations do not?

    R
    RŠ_107809907-BedrockAuthorAnswer
    7-Bedrock
    September 12, 2023

    I had to set Assembly Shift to Maximize and Attachment to CENTER-CENTER and then it calculated to be 0.00075 +/- 0,005750, which is right. Thanks anyway 🙂







      S
      SweetPeasHub17-Peridot
      17-Peridot
      September 13, 2023

       https://www.youtube.com/watch?v=J4kOg-kyoio
