Finding stress at an angle for a rotating part

  • June 21, 2024
  • 2 replies
  • 9673 views

Hi,

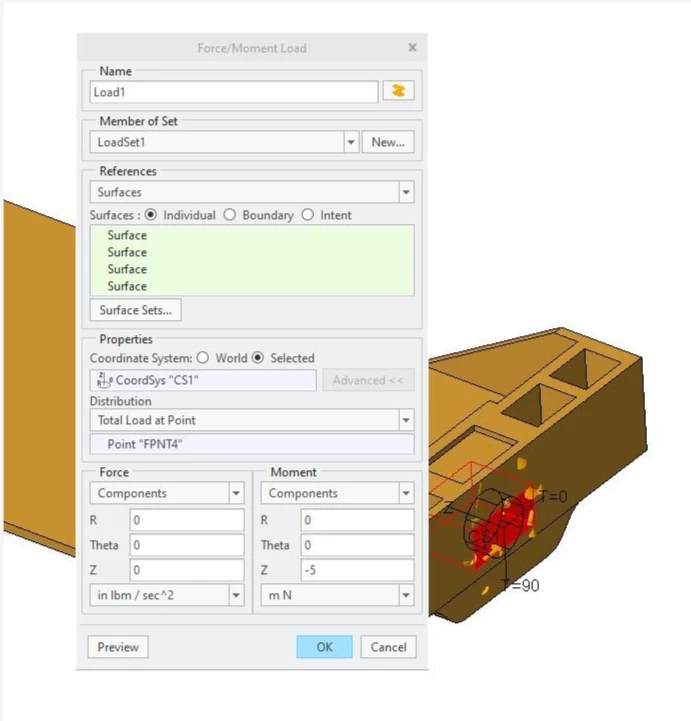

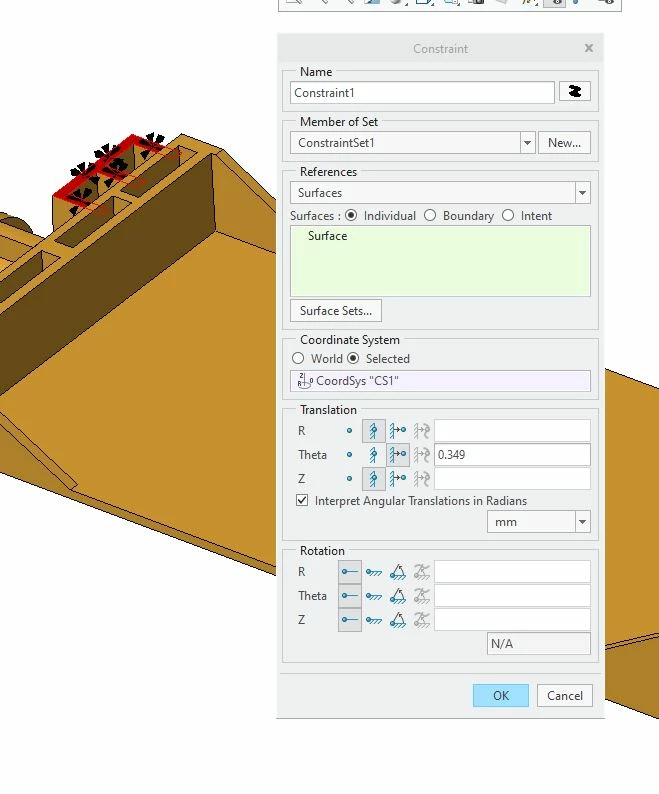

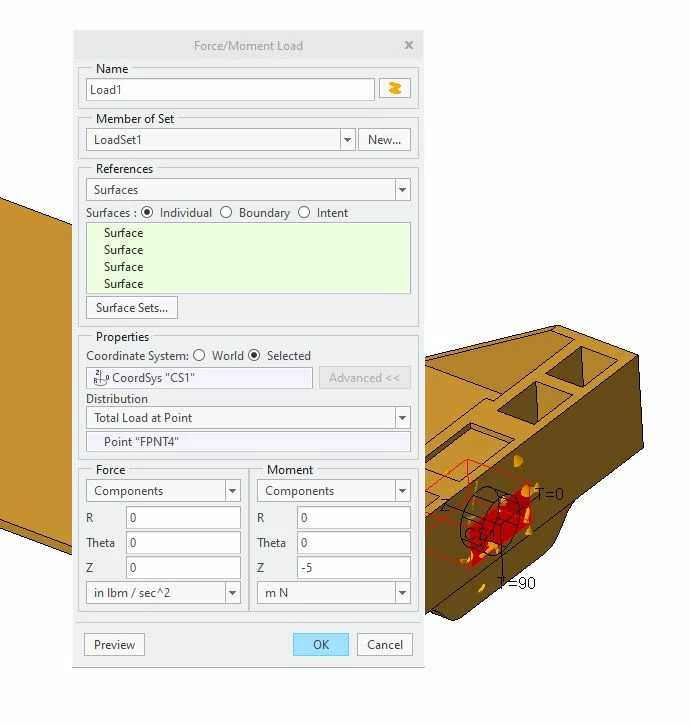

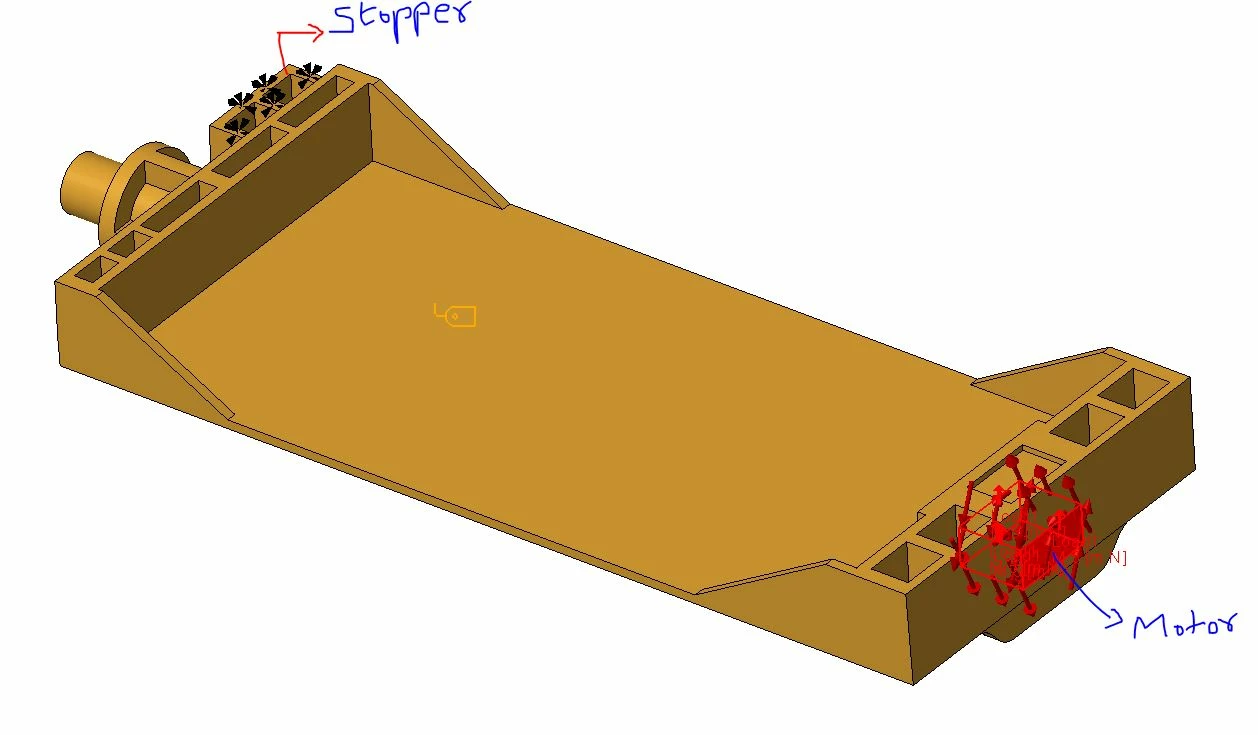

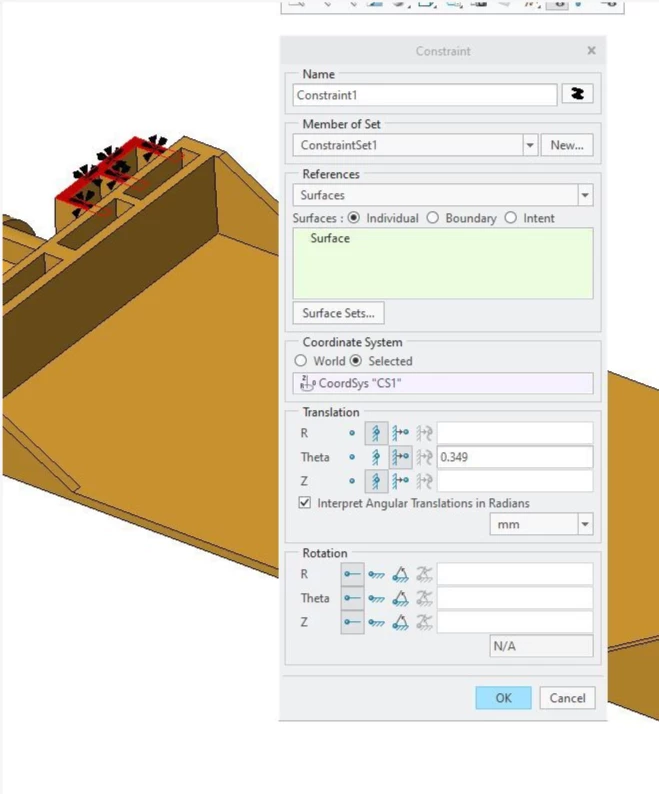

We need to find the stress when the part is twisted at an angle. It's shown in the capture-1 below that a motor powers the pocket at one end, while the other end has a stopper. load (capture 2) & constrains (capture 3), kindly advise me on how to calculate the stress values at various angles?

Plastic is the material that is used & currently I am using Creo 7



Thanks










Best answer by skunks

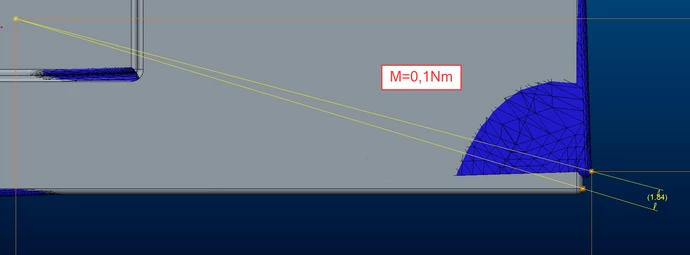

example


2 replies

skunks
skunks19-Tanzanite
19-Tanzanite
June 24, 2024

please send a step-file

    S
    Sam_928-GravelAuthor
    8-Gravel
    June 24, 2024

    Please find attached file.



    Thanks

    skunks
    skunks19-Tanzanite
    19-Tanzanite
    June 24, 2024

    attached file ZIP

      L
      Lewis_Maina_M13-Aquamarine
      13-Aquamarine
      July 18, 2024

      Do you know you can perform mechanism analysis and get reaction forces at defined point location then transfer the force measured to simulation for accurate results.

        S
        Sam_928-GravelAuthor
        8-Gravel
        July 19, 2024

        I thought of doing it. I will definitely try that.

        Please do share if you have any examples for reference.

        Thanks.
