Flipping model without using mirror function

  • April 21, 2017
  • 1 reply
  • 4511 views

Hi All,
I want to flip my entire model (mirror) with respect to top plane in Creo 2.0. I am facing issue regarding feature failure (depended features are failing) if I am flipping first feature.



Is there any possibilities that I can flip my entire model with respect to plane and co-ordinates?

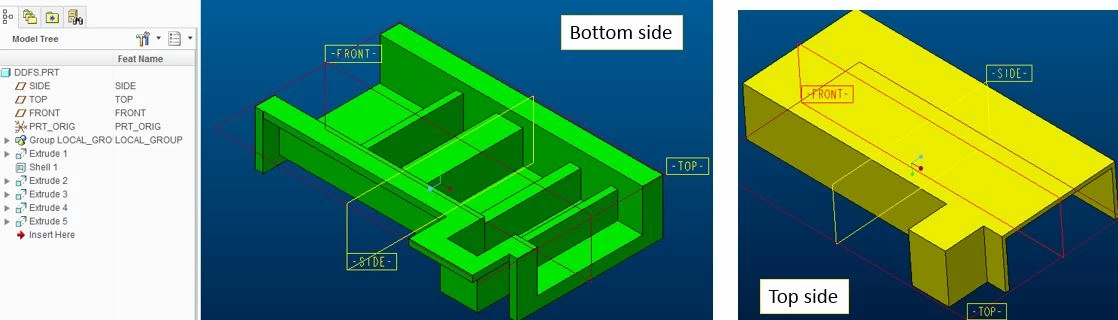

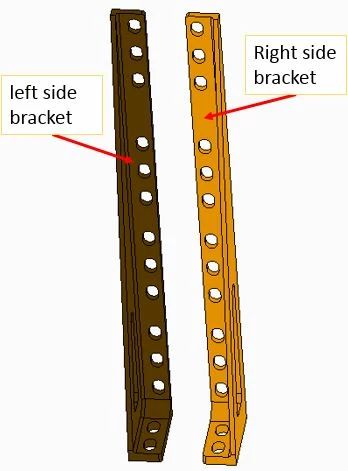

I have attached snapshots simple example of actual model and required model for better understanding. This is very simple example and I have to do this for very complex models.



So any help will be great.

Thanks in advance.

1 reply

M
MartinHanak24-Ruby III
24-Ruby III
April 25, 2017

Hi,

in CR3 you can use:

  • in Part mode File > Save As > Mirror Part ... the symmetry is executed about the XY plane of default coordinate system, you cannot select mirror plane
  • in Assembly mode, select Create in Component group under Model tab and select Part as Type and Mirror as Sub-type > OK

MH

A
apansare1-VisitorAuthor
1-Visitor
April 25, 2017

I know that option is available in CR3. But currently I am using CR2.

M
MartinHanak24-Ruby III
24-Ruby III
April 25, 2017

Hi,

in CR2 you can use Assembly mode variant.

MH
