Help with the hole function

Hello,

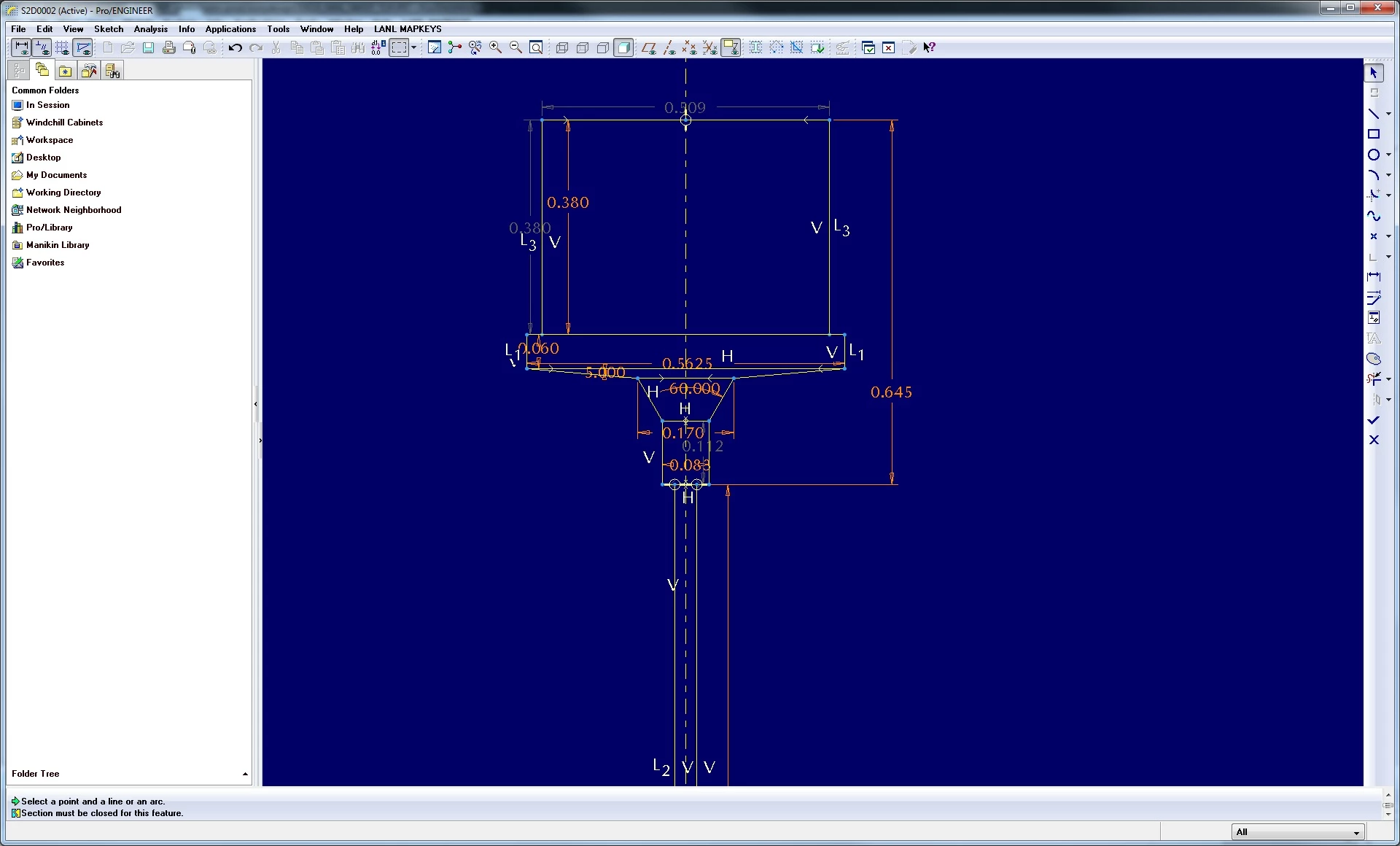

I am trying to use the sketch option in the hole function. I have sketched what i want my hole to look like, but I keep getting an error that says the section is incomplete. I have attached a screen shot of my sketch. When I get the error, little red crosshairs show up on almost every intersection.

Thanks

D


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
KevinAnswer
1-Visitor
December 16, 2010

You only sketch half of the hole geometry like a revolved feature. You also need to trim out the inner lines to create a single closed loop (you currently have multiple closed loops).
