hexa mesh not created - why?

  • May 8, 2019
  • 2 replies
  • 6289 views

Hello,

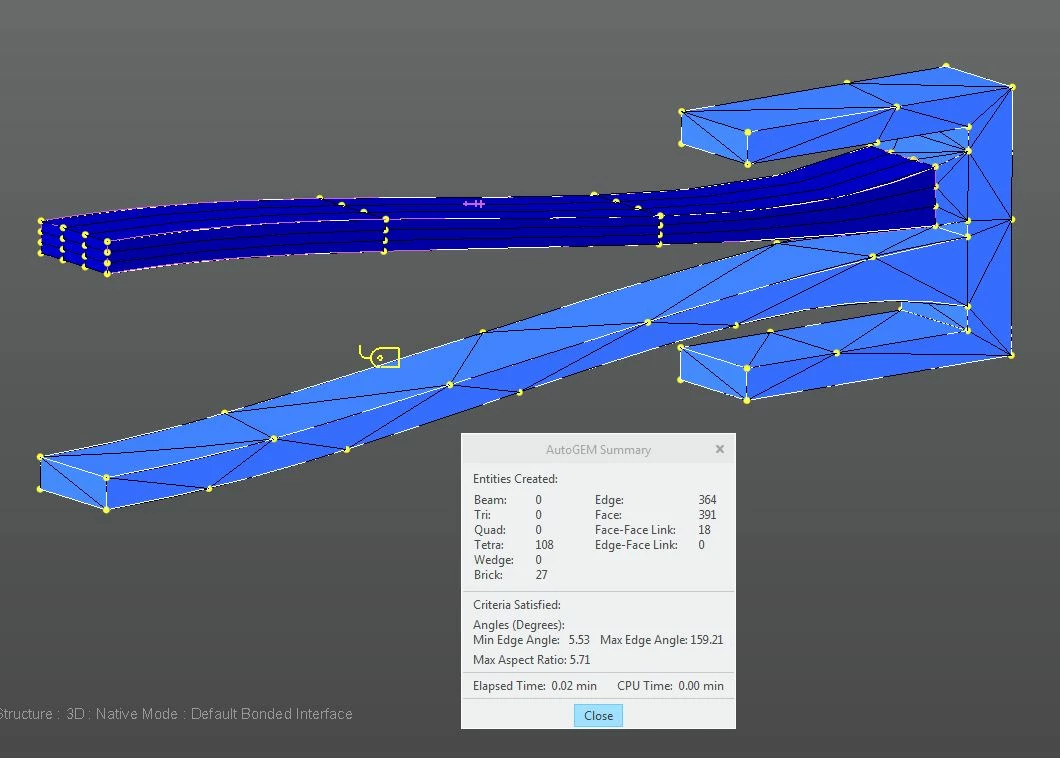

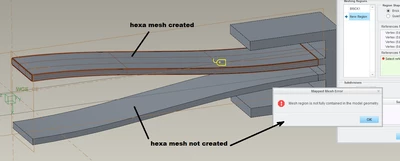

I tried to create mapped hexamesh for a full symmetric geometry. The first side was OK, but the second side is not. Error nitice can be seen at picture:



mech error.png



The two mesh region is total same. What is the reason of this errror?



Thanks

Roland

2 replies

17-Peridot
May 8, 2019

Can you compress the file to a .zip and attach it?

rrakos1-VisitorAuthor
1-Visitor
May 9, 2019

File is attached.



Thanks

R.

17-Peridot
May 9, 2019

Hi,

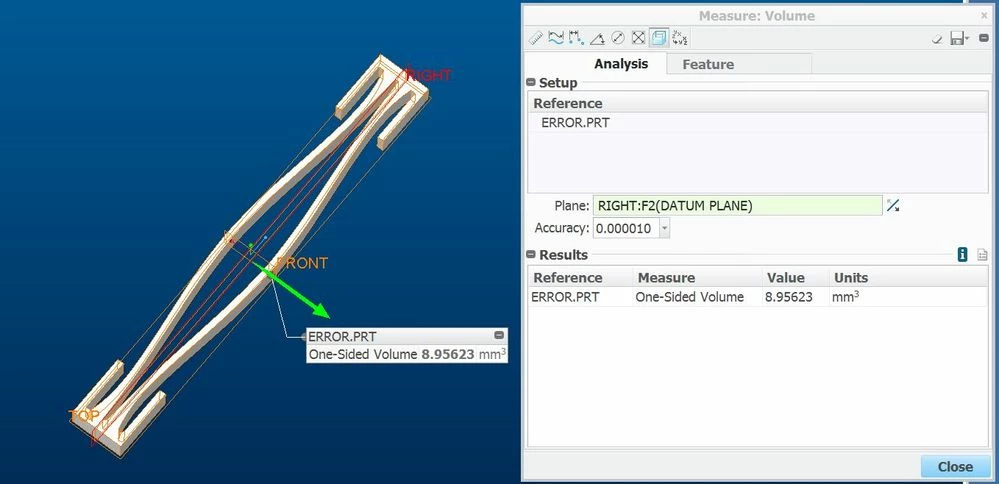

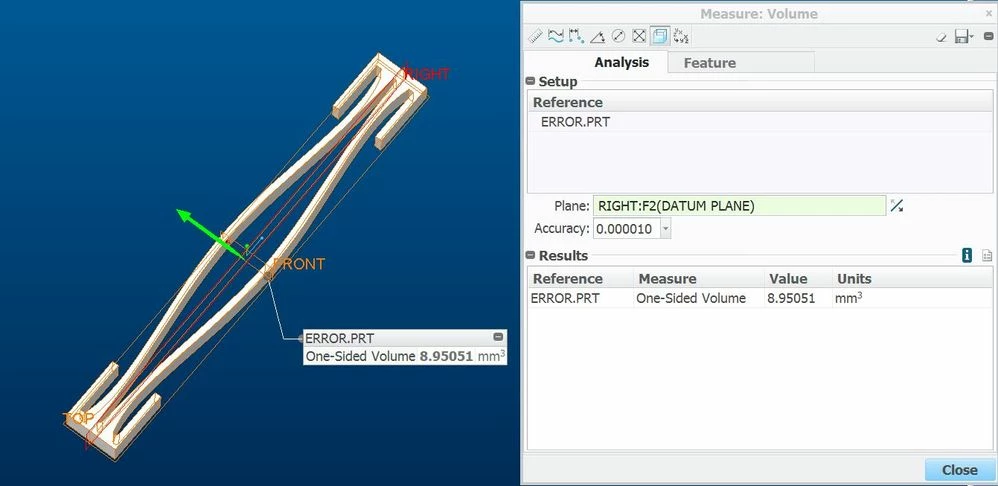

I made the volume region attached to the geometry and not to the plane.









Bye

skunks
19-Tanzanite
May 9, 2019

please check the sketch 1

rrakos1-VisitorAuthor
1-Visitor
May 9, 2019

The sketch 1 is a simple and closed contour. What should I check on it?

skunks
19-Tanzanite
May 9, 2019
