Hello:

I am working hydraulic pumps' dynamic mechanical simulation by your mechanism module. it is very good and successful to built dynamic mechanical model by your module. but it can not impose the hydraulc flow force on the model and could not get a useful dynamic simulation result. If we only impose some ideal force or function force, it have not any actual value, the simulation goal is for simulating the actual situation, right?

AMEsim is a good hydraulic simulation software and can calculate a detailed force result, if Creo have co-simulation interface, I can add hydraulic flow force to the mechanism and can get a useful result. by the way, ADMAS have this interface.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    Best answer by bzarkhine

    Hi, Jason.

    If you can formulate a function representing your hydraulic force (depending on time, different positions, velocities etc.) you should create a user-defined  force. This should be quite simple and straightforward.

    If this is not possible, or if you want to use an external simulation software together with Creo mechanism simulation, you should use Custom Load. Custom Loads functionality allows you to bundle external simulation application with the mechanism simulation. Your code will be called at every step of the mechanism simulation thus allowing simultaneous integration of mechanism's equations of motion with hydraulics equations.

    You should be able to find examples of using Custom Loads in the help.

    Thanks,

    Boris

    3 replies

    B
    bzarkhine7-BedrockAnswer
    7-Bedrock
    January 19, 2016

    Hi, Jason.

    If you can formulate a function representing your hydraulic force (depending on time, different positions, velocities etc.) you should create a user-defined  force. This should be quite simple and straightforward.

    If this is not possible, or if you want to use an external simulation software together with Creo mechanism simulation, you should use Custom Load. Custom Loads functionality allows you to bundle external simulation application with the mechanism simulation. Your code will be called at every step of the mechanism simulation thus allowing simultaneous integration of mechanism's equations of motion with hydraulics equations.

    You should be able to find examples of using Custom Loads in the help.

    Thanks,

    Boris

    J
    jwu-21-VisitorAuthor
    1-Visitor
    January 20, 2016

    Hello Boris,

    up to now we didn't purchase TOOLKIT license, so I can't use custom loads function. I have tried to exert the hydraulic force to the mechanism by the function, but the effect is not good, however, thanks for your reply and support!

    Jason

    G
    gfraulini17-Peridot
    17-Peridot
    December 13, 2016

    Hi all,

    Boris could you give us more informations regard how custom loads works?

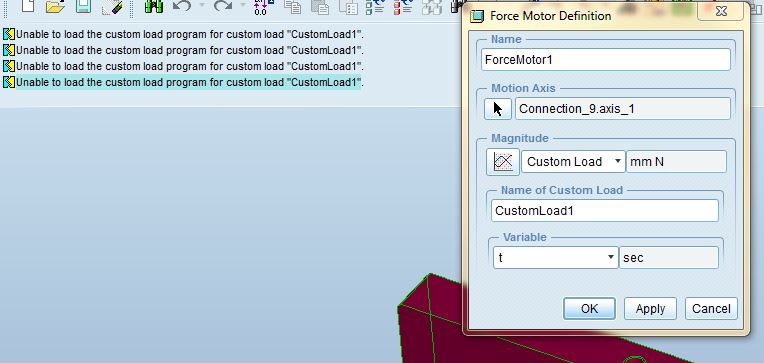

    In my case I don't understand how could I link the load with the external application because ProE doesen't ask me nothing (application, folders,...) and returs me «Unable to load the custom load program for custom load "CustomLoad1"» in the Message log.


    PS: I use WF5.

    How we can link the Mechanism environment with an external application to make a feedback circuit?

    I think, for example, with Mathcad 15?

    In AMEsim you can build a feedback circuit and, with the latest versions, you can link the analysis with the CAD.

    Thanks

    B
    bzarkhine7-Bedrock
    7-Bedrock
    December 13, 2016

    Giulio,

    there is a config.pro option "mdo_cl_executable" which you should use to specify the path to the Custom Load executable. So it should look like:

    mdo_cl_executable your_path_to_the_DLL_directory\CustomLoad.dll

    Thanks,

    Boris

    G
    gfraulini17-Peridot
    17-Peridot
    December 13, 2016

    Sorry but also reading the PTC Help section I don't understand: I need always the toolkit?

    How can I link Pro/Mechanism with an external software to let them communicate together?

    It is possible having some example?
