How to get the model size (solid geometry)

Question

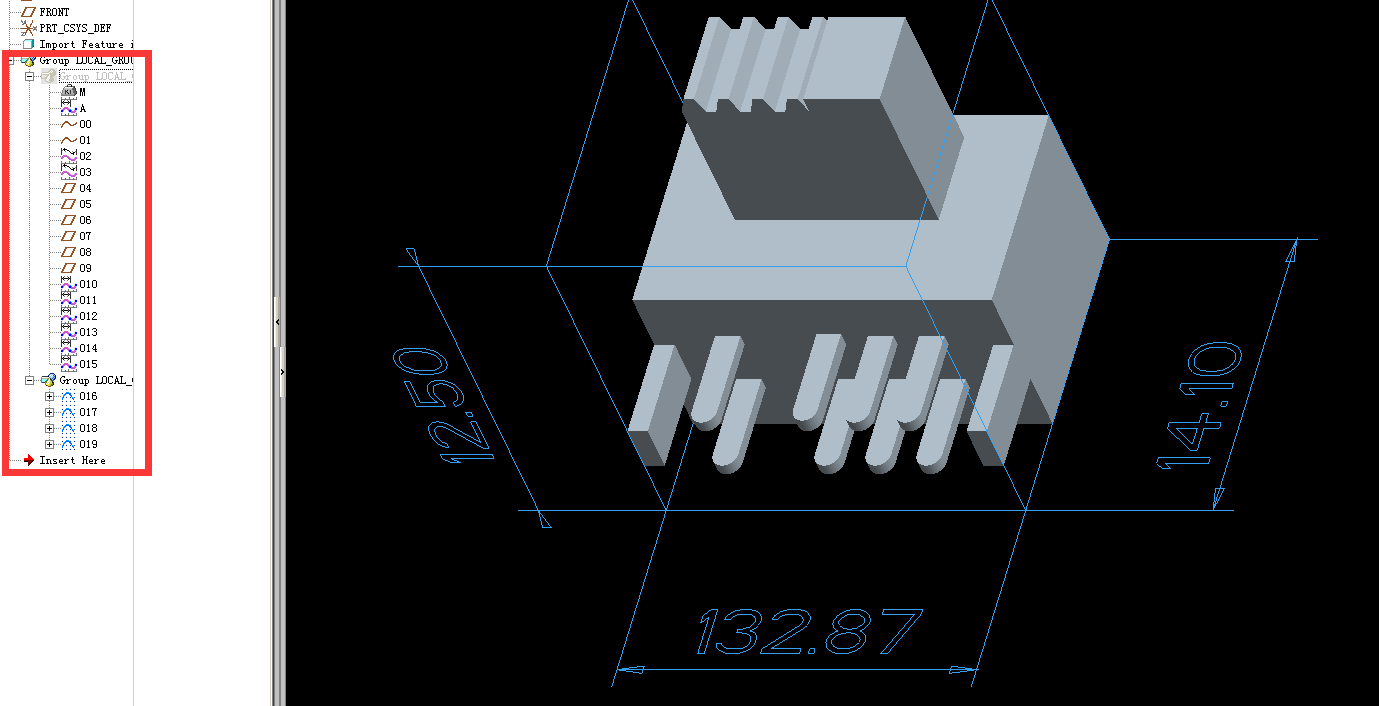

HI，In the parts module, how to get the maximum size（L，W，H） of the parts as the function of the automatic work piece in the mold module?I tried using the model checking function in the Overall Size Model parametersHowever, it is not ideal, the size is often not the maximum size of the physical geometryTKS~! (No related modules are installed)（Could not understand this parameter）This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Chris3 · Accepted Answer

You might want to vote on this idea:Create a analysis feature that will give you the bounding box size

James62 · Answer

You are correct, the Overall Size from ModelCheck isn't good for anything.

Not sure about your version of Pro/E but for Creo Parametric 2.0 template models for automatic workpiece are stored in <install_idr>\Creo 2.0\Common Files\<datecode>\text\ncmdl_data

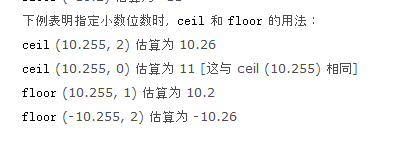

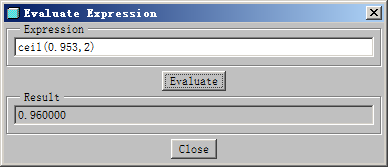

I'd start adding some new parameters and relations to those template models. Defining of all of those relations is pretty intimidating as there is no rtos() function and you might require a param that holds values such as this 11.15x45x105.4 maybe because of the usage within drawing repeat region tables.
