In Creo Simulate, how to pull Snapshots into FEM?

Forum|Forum|2 years ago
September 11, 2023
2 replies
1766 views

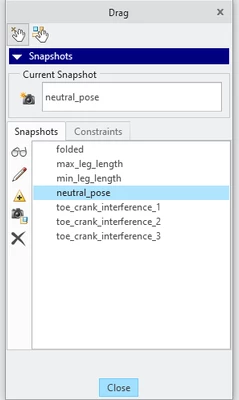

I have a robot leg CAD and I need to run FEA on several key poses. Now I have these key poses stored in 'drag component' as different Snapshots (see picture below). And I have Simp Rep that hides all the non-structural components. However when I open Simulate, the model always seem to go to the default pose ('neutral_pose'). Any idea how to simulate diffrent poses?

Simulate

C

ChrisKaswer

16-Pearl

I believe you need to add/set the desired snapshot as the default position in a specific SimRep itself. Then, when you enter Simulate with the SimRep active you wish to use, it should be oriented/arranged according to the snapshot. You will need to make a SimRep for each different snapshot you wish to analyze, each set to have its default position associated with the different snapshots.

I hope this helps!

S

SweetPeasHub

17-Peridot

That would be nice to have and much clearer for the next time someone opens the model. Please put this in as a feature suggestion. I will upvote that!

-regards.

S

SweetPeasHub

17-Peridot

There is no ability to set "default" snapshot, so why is it always looking like neutral position?

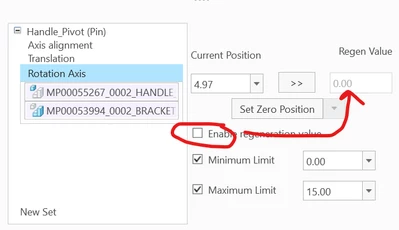

Do not enable regeneration value on your pin joints. The model regenerates when you enter simulation and will go to the value set here.
