Is simulation possible for a fibre reinforced composite? If possible then how?

  • February 10, 2016
  • 2 replies
  • 2431 views

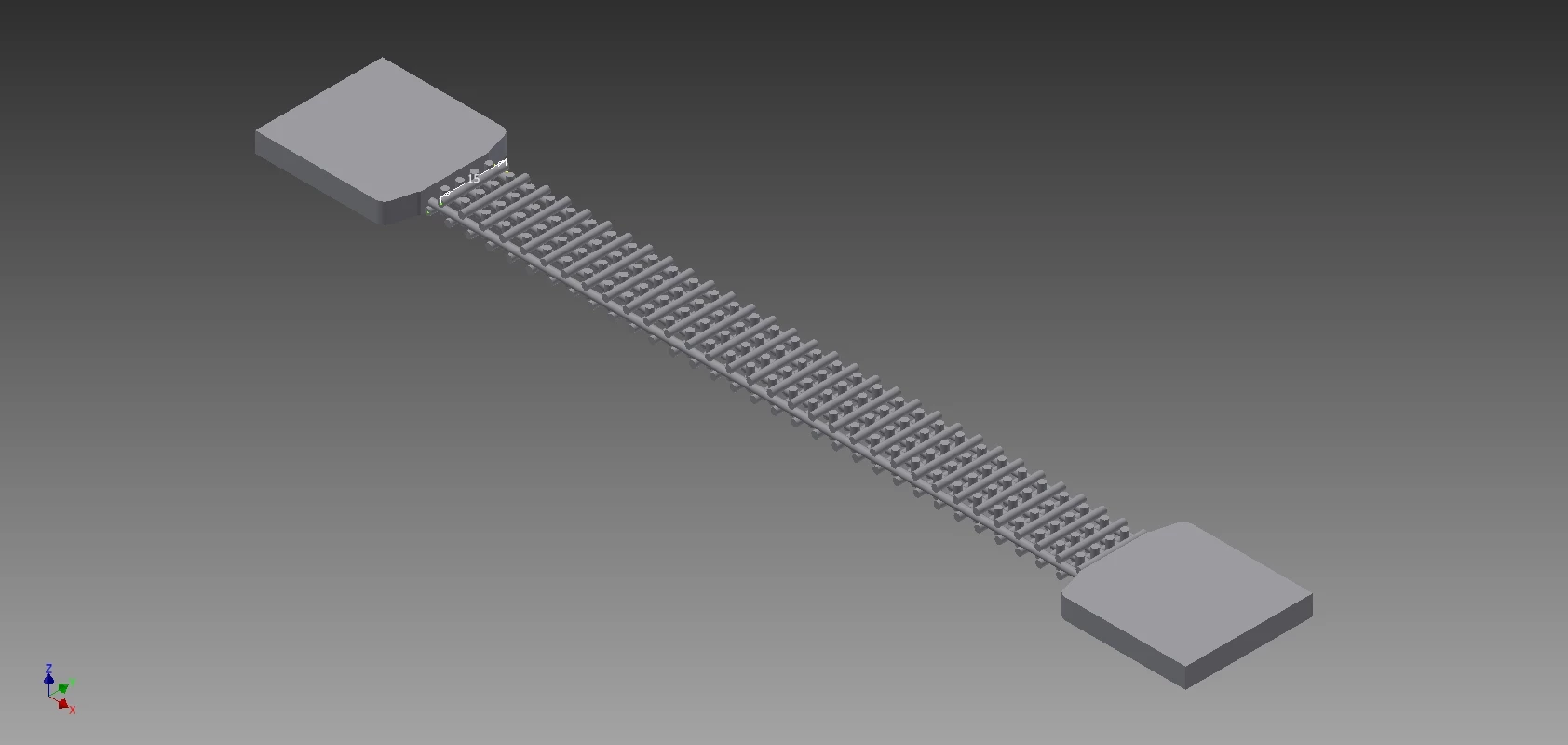

Here i have attached picture of fiber structure and another is matrix structure. Is simulation possible for a fibre reinforced composite after assembling it? if yes, then how??


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

D
DenisJaunin15-Moonstone
15-Moonstone
February 11, 2016

Hello

Some values for information.

Kind regards.

Denis

    R
    rubenvillarreal14-Alexandrite
    14-Alexandrite
    February 12, 2016

    Define the material properties as Steven says using the values of Denis pdf.

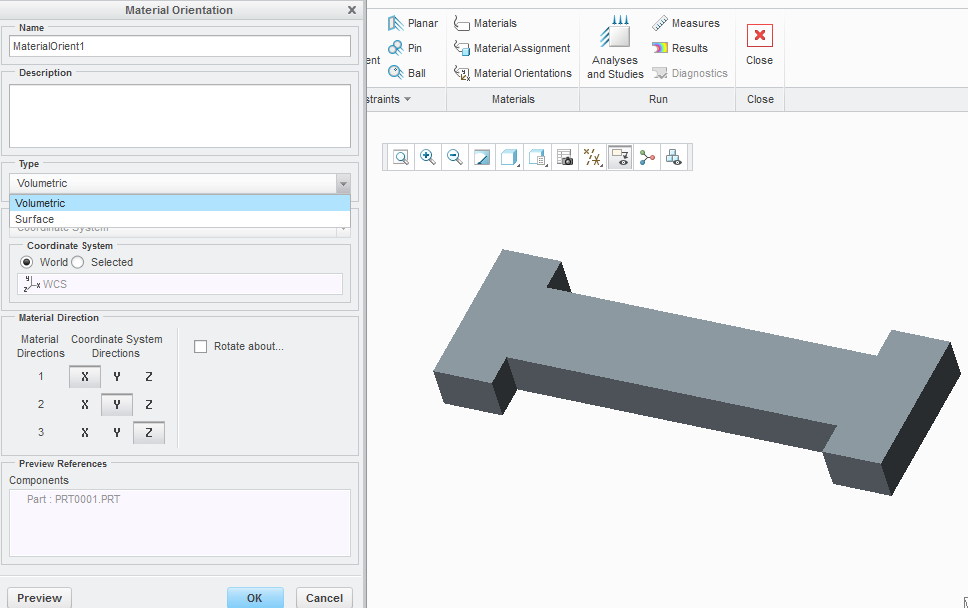

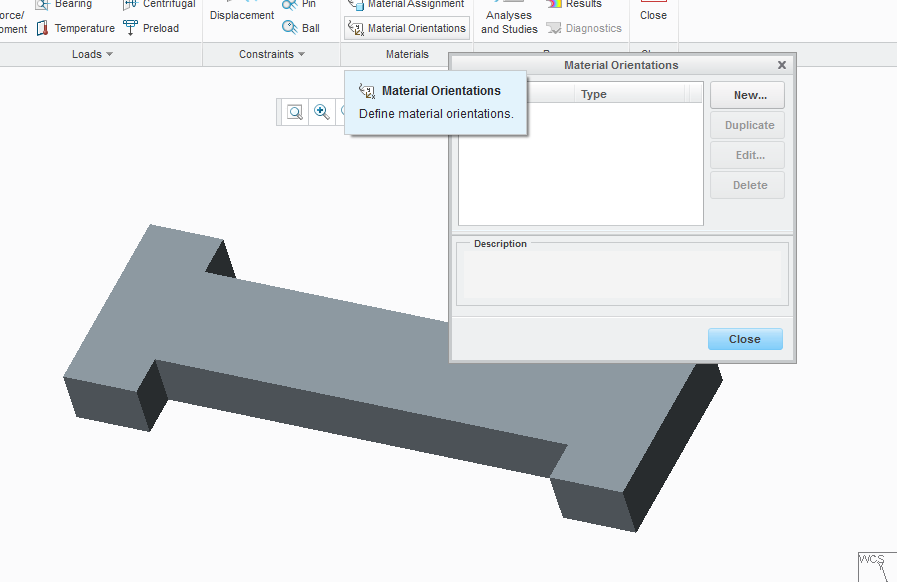

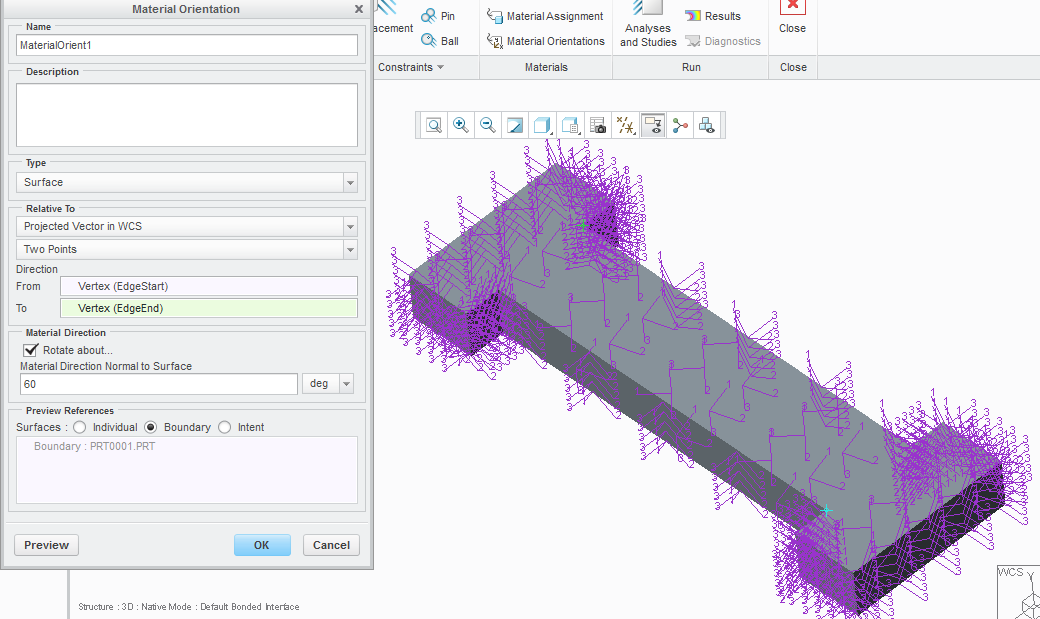

    Next, define a material orientation for your piece. Remember that material orientation is applied to features, not to the material itself. Check the preview button and use the several tools that the dialog box has in order to set the desire orientation.
