Mapped Mesh doesn't work on a very simple part

  • March 26, 2024
  • 2 replies
  • 2098 views

Creo 9.0.7.0. T5 license

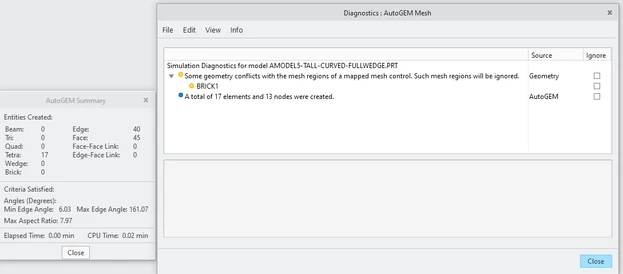

I'm trying to create a mapped mesh on very simple shape.  But when I try to create the mesh it fails to make bricks and reverts to tets.  I've spent a lot of time trying to do this very simple task and I am frustrated.


My geometry an extruded sketch.  It has (or had) some fillets on the vertical edges but I have suppressed them. I have selected every surface combination possible (there are 3 possibilities - top+bottom, the two sides, and the ID and OD).





2 replies

skunks
skunks19-Tanzanite
19-Tanzanite
March 26, 2024

I only have Creo Simulate Advanced 2 ( or 3).

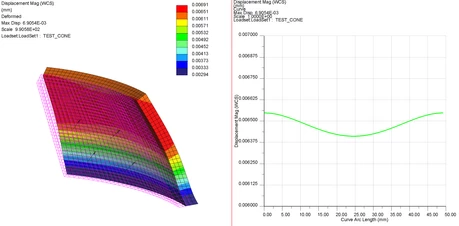

Here is my model in Creo 2, does it work for you?


D
drush10-MarbleAuthor
10-Marble
March 26, 2024

Thank you Skunks.  Your geometry was more complex than mine (you made a cone and I made a section of a cylinder) and you helped me think things through.

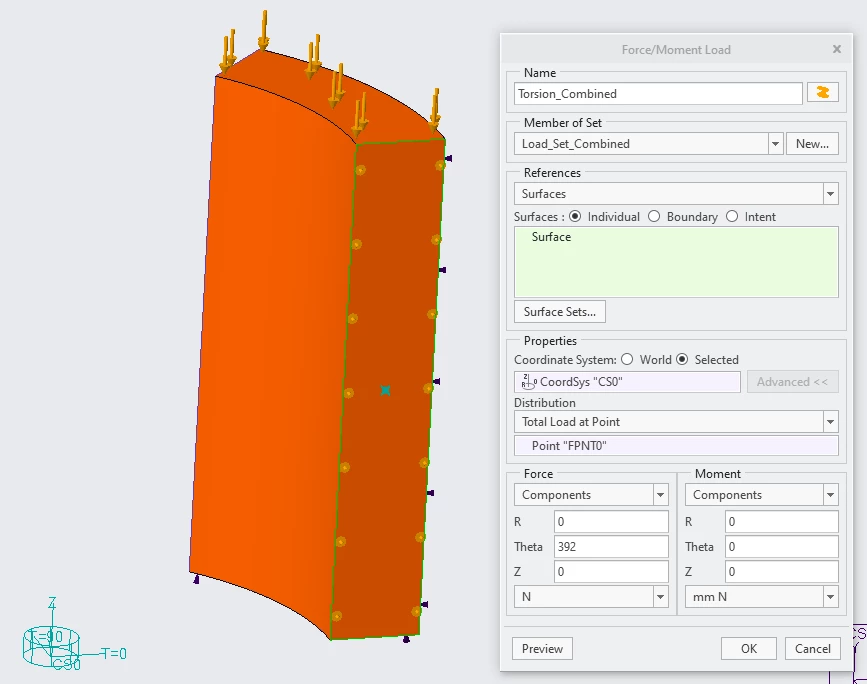

The problem is that I applied a load using the "total load at point" option .  Which appears to be the only way to apply a force in a cylindrical coordinate system such that it can be analyzed using non-linear analysis.  My attempts to work around this problem have failed, but when I suppress this load it meshes.  Which makes sense - the mesher wants to put a node where I applied the force, but I randomly selected the point and it is not associated with any geometry and is not where a node is created by the mesher, so it creates a meshing conflict. I have since created a datum point (and a simulation point) in the geometric center of the face hoping that if the datum point was at the location of a node mapped meshing would work, but it doesn't.  I have determined why mapped meshing didn't work, but I have yet to overcoming the challenge of applying a load to the face (in a cylindrical coordinate system) so I can run the model non-linear.

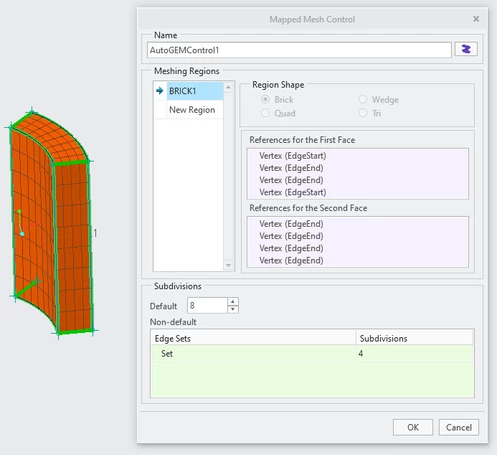

This is preventing me from map meshing bricks:




    skunks
    skunks19-Tanzanite
    19-Tanzanite
    March 27, 2024

    ..."total load at point"...

    For "total load at point", I would click on a corner point.



    PS: example attached

    V
    vnamboodheriCommunity Manager
    Community Manager
    April 2, 2024

    Hello @drush,



    It looks like you have some responses on your topic. If any of these replies helped you solve your question please mark the appropriate reply as the Accepted Solution.

    Of course, if you have more to share on your issue, please let the Community know so other community members can continue to help you.

    Thanks,
    Community Moderation Team.
