Mass Properties - How does CREO determine assembly weight?

  • April 24, 2024
  • 2 replies
  • 3455 views

Folks,

I am using CREO 7 and I want to understand how CREO sums part weights to arrive at the total assembly weight. Is there code or relation that can be accessed to learn how this is done and where can I find that? Thank you.

Best answer by BenLoosli

Article - CS25581 - How to display the summation of parameters values in repeat region of assembly drawing in Creo Parametric (ptc.com)



Add a column to your table for the per object price and add a row at the top or bottom of your table. Then follow the steps in the CS article.

2 replies

B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
April 24, 2024

Since Creo is building solid models, they all have a mass. When you apply a material with a density to that mass, you get a weight. The software will add the weights of your assembly components and give you an assembly weight.



    S
    SweetPeasHub17-Peridot
    17-Peridot
    April 25, 2024

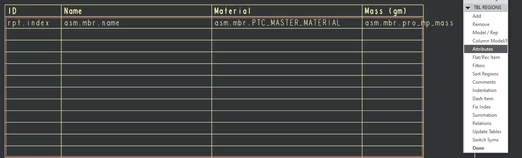

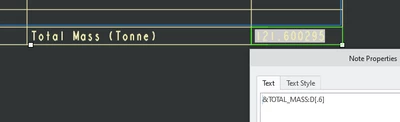

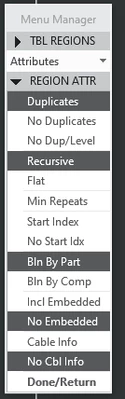

    Parts do not need to be solid to have mass, they can also have ASSIGNED mass such as for example bulk items like grease. Since it is simple addition, I am reading in between the lines that there is something about the mass reported that does not seem correct and you want to investigate. I would look into making a drawing with a repeat region reporting the mass and material for the assembly. I do not remember if Creo7 has options for the repeat region to recursively expand all subassemblies but up-to-date Creo can. These screenshots should get you on your way to making a drawing table for this. It is generic so be sure to save the table for later use so it can be used as "table from file". The exact keywords changed recently so you may need to look up the correct key words for the repeat region. Once you have this table it is much quicker to identify incorrect masses and it can be saved to Excel.  (At least in Creo 11)










      C
      Chris321-Topaz I
      21-Topaz I
      April 25, 2024

      @SweetPeasHub 's solution only works if the mass property parameter is being updated. Depending on your config settings it may not be. You can get a full report (although the formatting leaves a lot to be desired) if you run Analysis -> Mass Properties or file-> Prepare -> Model Properties -> Mass Properties -> Change -> generate report

      with the config

      mp_calc_level all_models

      Alternatively you can make sure

      mass_property_calculate automatic

      is turned on, regen and then run the repeat region like @SweetPeasHub mentioned above.

        W
        wbottis14-AlexandriteAuthor
        14-Alexandrite
        April 25, 2024

        Thanks for the recent replies folks. I am assigning a parameter called 'price' to my parts and I would like the assembly 'price' to be calculated in the model as the sum of those parts (analogous to what is done with mass). Can this be done with a relation in a simple way? Thank you.

        B
        23-Emerald III
        BenLoosli23-Emerald IIIAnswer
        23-Emerald III
        April 25, 2024

        Article - CS25581 - How to display the summation of parameters values in repeat region of assembly drawing in Creo Parametric (ptc.com)



        Add a column to your table for the per object price and add a row at the top or bottom of your table. Then follow the steps in the CS article.
