Question

Need help creating springs

  • August 26, 2011
  • 2 replies
  • 2494 views

I am trying to create a spring using mechanism and I looked in the help file and saw that it says to Click Insert > Spring. I am using WF5 and when I click on the insert tab, I only see Cam, gears and belts under this category.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

D
DavorGranic16-Pearl
16-Pearl
August 26, 2011

Aaron,

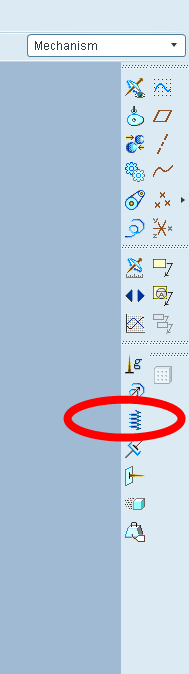

There should be spring icon on your toolbar.


A
Aaronm8714-AlexandriteAuthor
14-Alexandrite
August 26, 2011

That's what I thought, but all I have under the mechanism toolbar is the first and second row of icons, I have nothing in that 3rd row. And there is no spring icon listed under the Insert menu.

We have a mechanism design license, does this have the spring feature?

D
DavorGranic16-Pearl
16-Pearl
August 27, 2011

Seems you have kinematic based Mechanism design licence. No dynamic stuff.

Mechanism design has option for dynamics which includes springs.

S
s.iyer1-Visitor
1-Visitor
August 28, 2011

There are two aspects...

  1. One: you wish to model the spring
  2. Second: You wish to insert a "Spring Body" in the Assembly mechanism.

While the first option can be achieved by Insert -->Helical Protrusion, the second option requires a licence of MDO (Mechanism Dynamics), a spring being a dynamic element.
