Not able to get Desired results in Creo Simulate

Forum|Forum|13 years ago
April 16, 2013
1 reply
7243 views

Hi all,

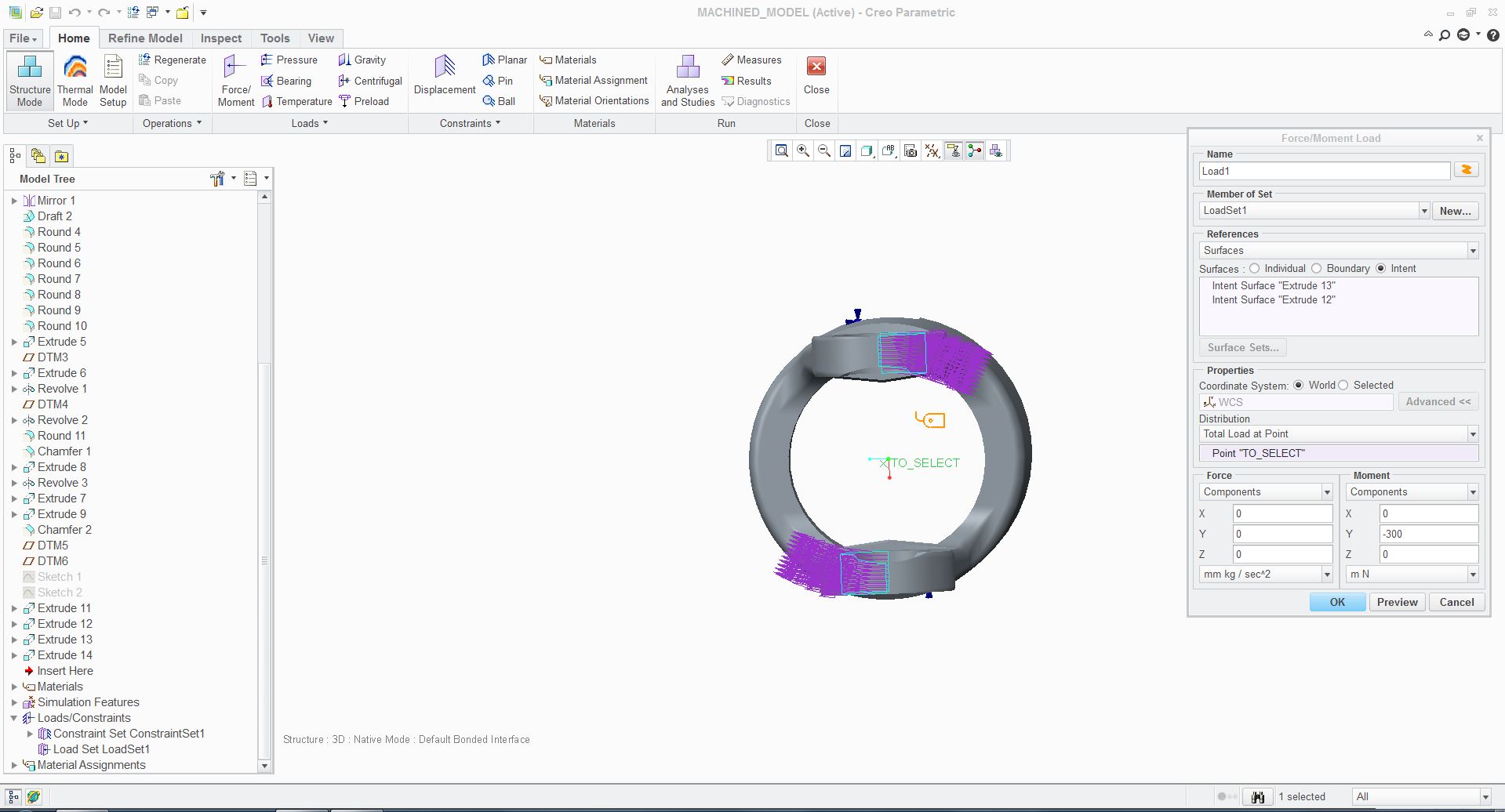

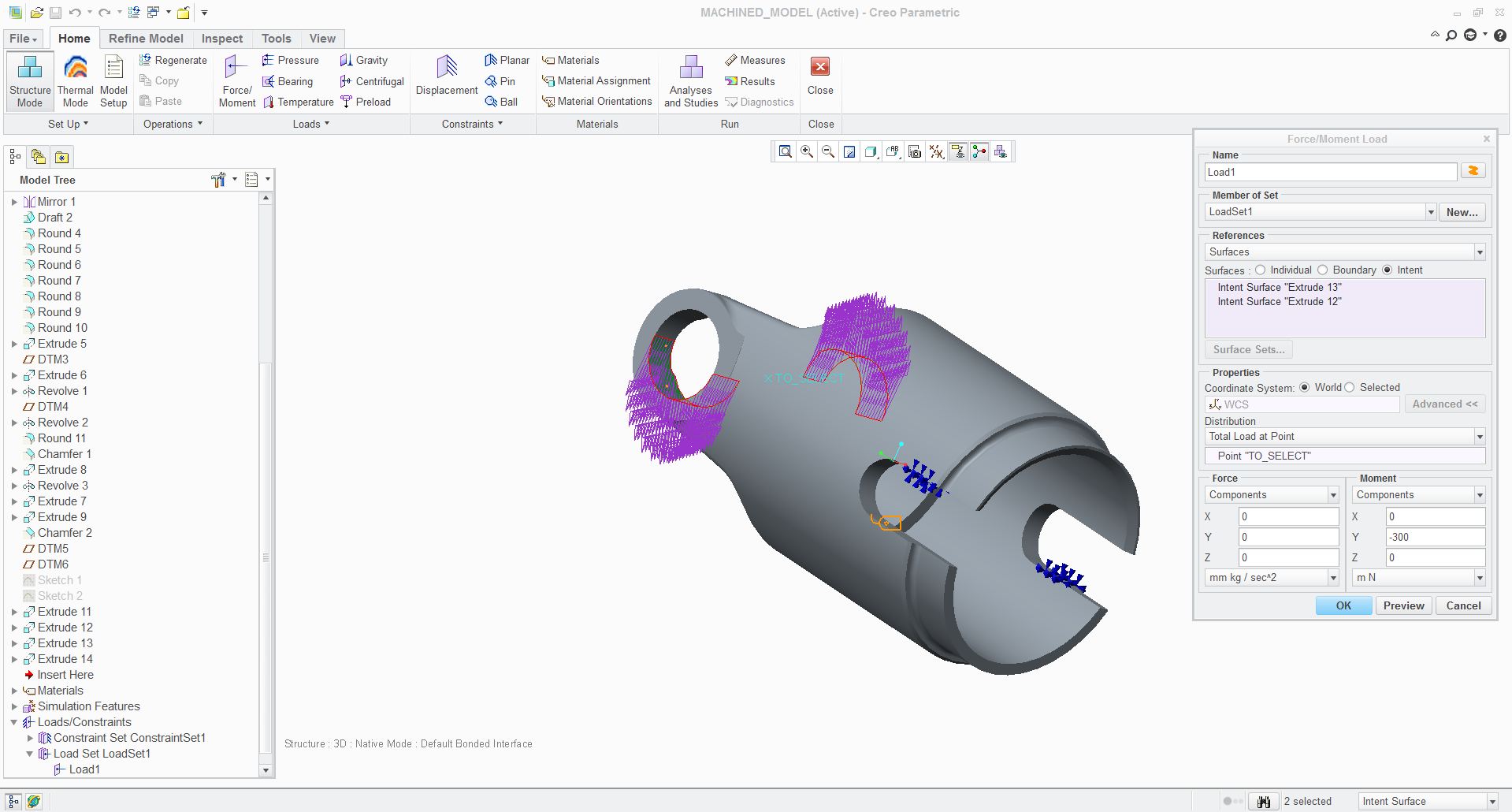

I think I've defind all constratints and Moment load correct, but the result values for Stress Von Mises is coming much much higher than the expected,

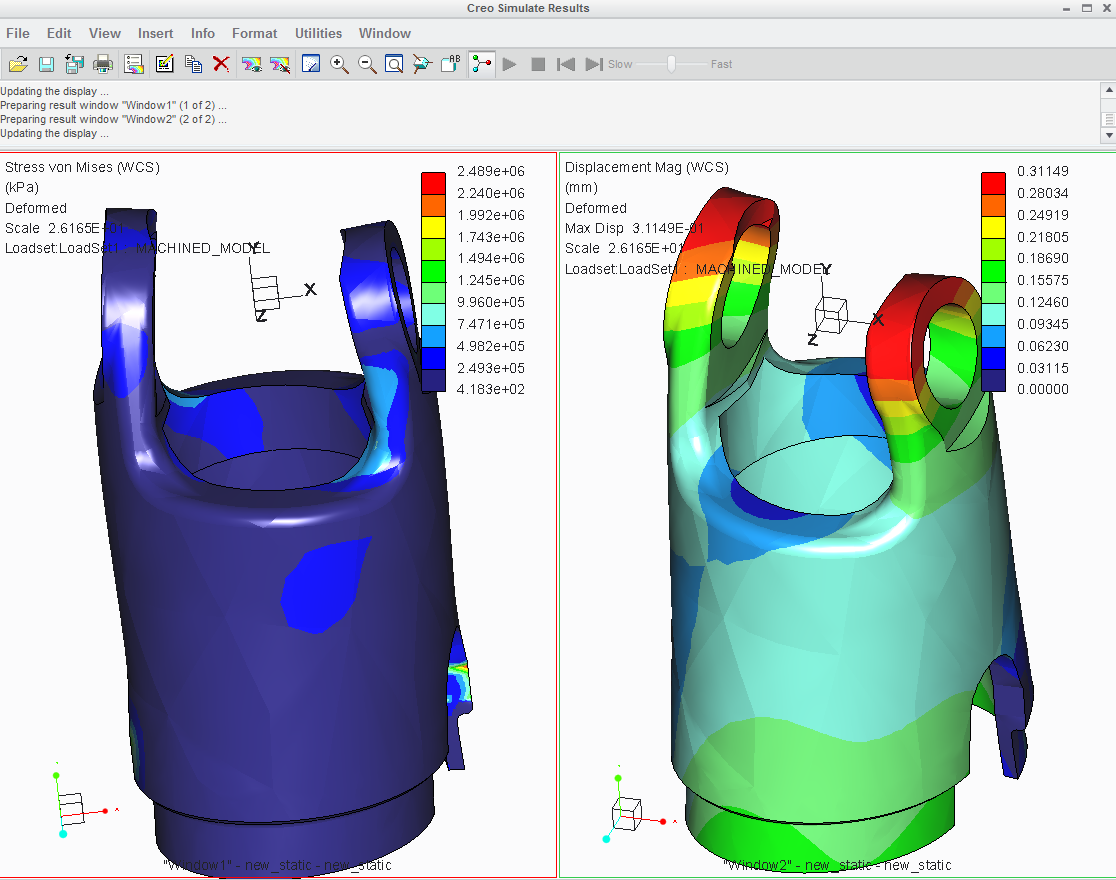

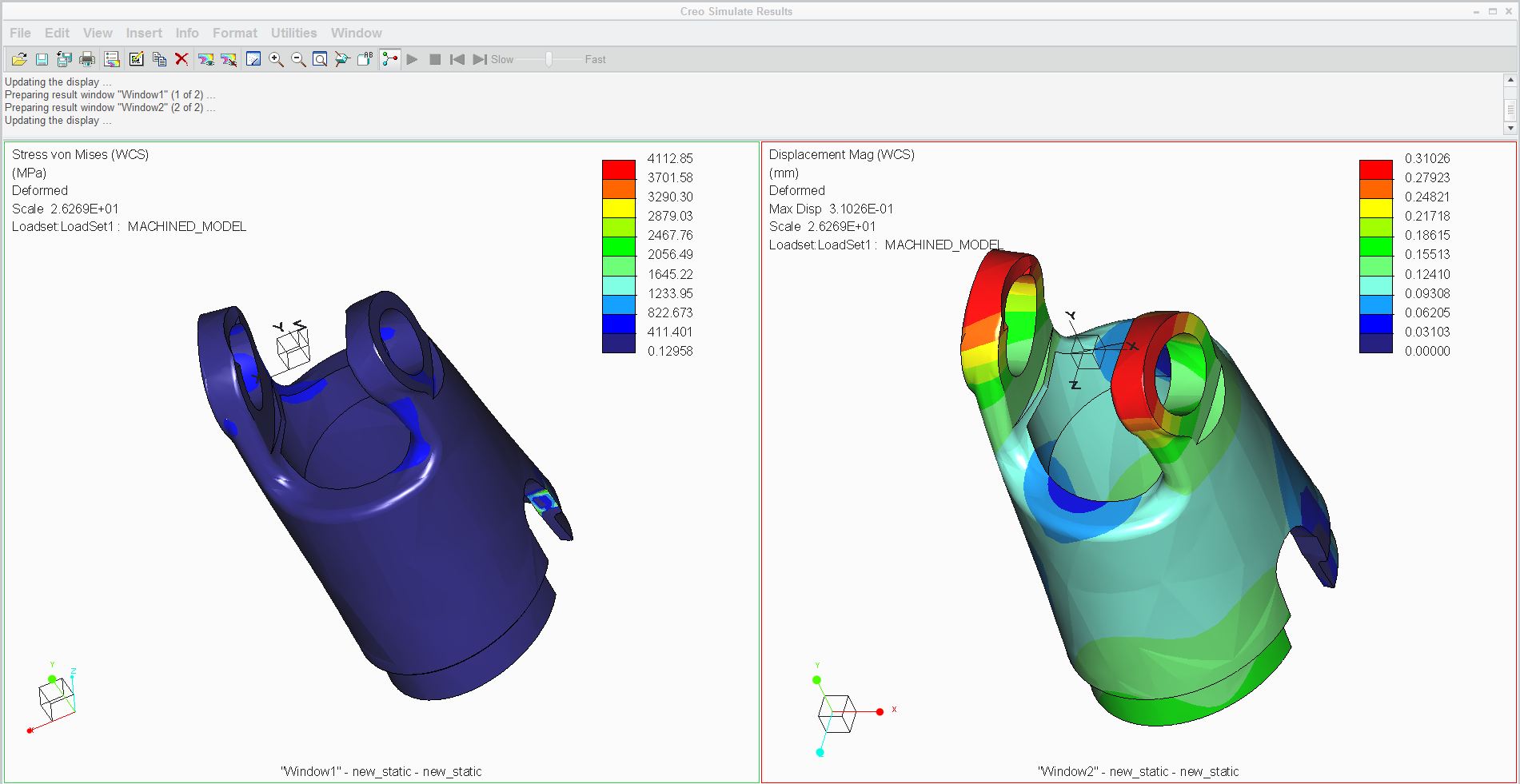

Expected values should come withing the range of 200-300 MPA, but its coming 4000+ MPA.

Please Help

Thanks

Shashank

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1_machined_model-prt-10.zip

General

I

integrisbrad

1-Visitor

I didn't look at your attached model, but it appears to me that your results are near that approximate expected range close to the "ears" where the moment is applied. The 4000+ MPa readings are near the constraint locations. Change your legend scale and/or probe the results near the area of interest.
