Hi,

I'm having problems with the display of Planes and Axis controls in Creo 2.0

When starting up the software I get the following Warning Error Message.

Upon trying to create an Axis on a revolved surface, the Axis line is not visible. This makes of adding a hole a pain.

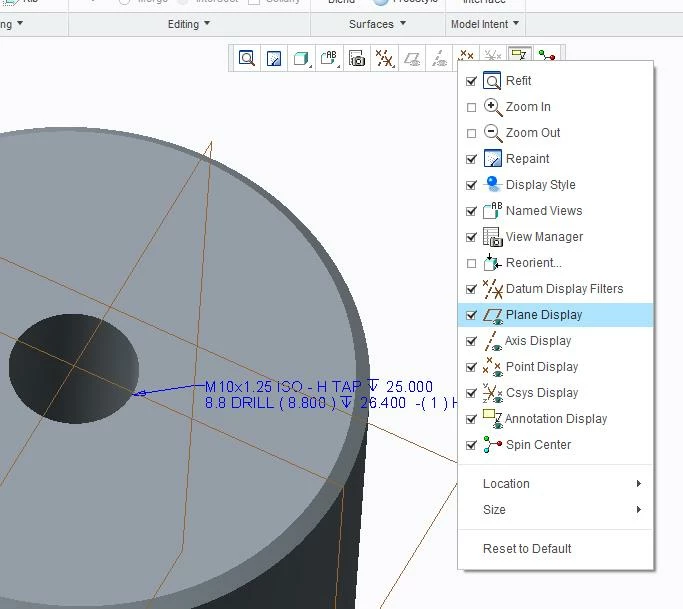

In the filters, you can see I have the Axis and Planes active in the shortcut menu, but the options are grayed out and not selectable.

Sorry for wrong terminologies, I'm just transitioning over from SolidWorks to Cero.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Steven,

For a quick test, run Creo without any config.sup and check it out.

5 replies

M
MartinHanak24-Ruby III
24-Ruby III
January 16, 2015

Steven,

check layers. If they contains axes and are set as hidden then you have to unihide them.

Martin Hanak

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    January 16, 2015

    Martin may be correct about layers but your screenshot of what's turned on and off is showing something.

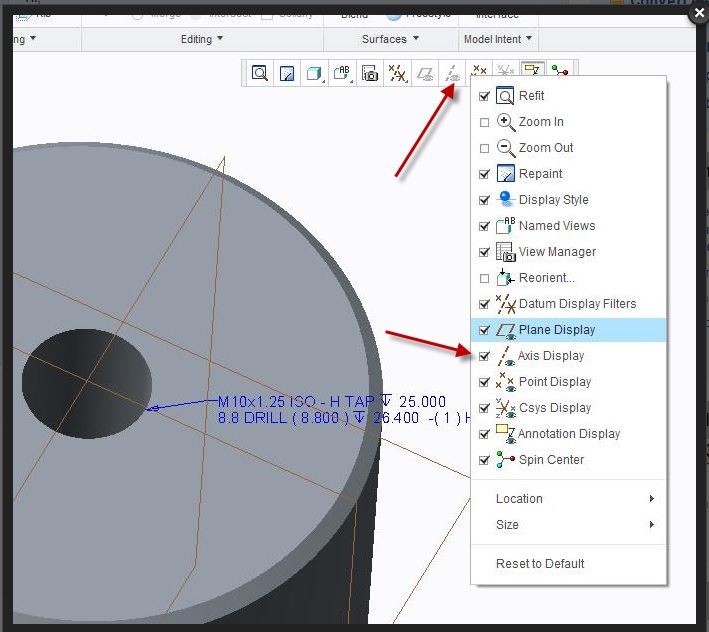

    The drop down list you are showing is the quick tool bar add list. Axis is checked to show an icon for the toggling the axis display on and off. If it's checked, you see the icon, if it is not check, you don't see the icon (for axis). It is not controlling the display of axis, it is control the toolbar. You access the toolbar controls using a right mouse button click. You toggle the icon using a left mouse button pick.

    The axis icon in the toolbar is dimmed, signifying that the display of axis on the screen is still turned off.


    S
    StevenSmith1-VisitorAuthor
    1-Visitor
    January 16, 2015

    Hi Stephen,

    This is what I was trying to point out. Even though I have added them to the toolbar. They still appear to be off, or in this case "Dimmed" out.

    I'll try again tomorrow, to see if there is a problem with the layers.

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    January 16, 2015

    I was mistaken, the Icon being greyed out signifies it is not selectable. I can't remember ever seeing it this way. Layers would not cause the axis display toggle to be de-activated.

    Is this the only part/assembly that displays like this or is the axis and plane display icons greyed out all the time? I notice the plane icon is greyed out also but the planes are displaying, so this seems contradictory.

    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    January 16, 2015

    Steven,

    As Doug mentioned one of the possible reason for axis is option display_axes no in config.sup.

    Regarding warning on start "Feature obtained" is to inform that the license for Routed_System_set is obtained by Creo and that is correct as this license is not for Creo. You can edit your *.psf file in <Install Location>\parametric\bin and remove Routed_System_set. Warning will not prompt after removing this license from PSF.

      S
      StevenSmith1-VisitorAuthor
      1-Visitor
      January 19, 2015

      Hi Mahesh, there is no option in the .psf file to remove the Routed_System_set.

      // PTC - PSF file: parametric

      //

      PRODUCT=Creo Parametric

      DESC=Creo Parametric (default)

      SHIPCODE=M110

      CREO_COMMON_FILES=Common Files\M110

      //

      ENV=MECH_LP=%PRO_DIRECTORY%\mech

      ENV=MECH_HOME=%MECH_LP%\%PRO_MACHINE_TYPE%

      ENV=PRO_MECH_COMMAND="%CREOAPP_DIRECTORY%\bin\parametric.exe" "%CREOAPP_DIRECTORY%\bin\parametric.psf"

      ENV=RPC_TIMEOUT=31536000

      ENV=MEDI_HOME=%MECH_HOME%

      ENV=PATH+=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\deflib

      ENV=PATH-=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\lib

      ENV=PATH-=%INTRALINK_DIR%\%PRO_MACHINE_TYPE%\illib

      ENV=PATH+=%PRO_DIRECTORY%\libs\dfor\lib

      ENV=NMSD_TIMEOUT=300

      ENV=PRO_COMM_MSG_EXE=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\obj\pro_comm_msg.exe

      ENV=PROE_START=%CREOAPP_DIRECTORY%\bin\parametric.exe

      ENV=CDRS_DATA=%PRO_DIRECTORY%

      ENV=PRO_IMAGE_CONVERTER=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\obj\convert_image.exe

      ENV=PROGUIDE_DIRECTORY=%PRO_DIRECTORY%\uifdoc

      ENV=SPG_DIRECTORY=%PRO_DIRECTORY%

      ENV=PRO_USRMAIN=%PRO_DIRECTORY%\usrprog\umain\usrmain.c

      ENV=PROTABLE_DIRECTORY=%PRO_DIRECTORY%\protable

      ENV=MOZILLA_FIVE_HOME=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\obj\MOZILLA

      ENV=PROTAB=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\obj\protab.exe

      ENV=ZIP_EXEC=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\obj\zip.exe

      ENV=CLHOME=%PRO_DIRECTORY%\text\pcldata

      ENV=PVIEW_PROEPVIEW_HOME=%PRO_DIRECTORY%\apps\prodview

      ENV=CV_ENV_HOME=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\CV140

      ENV=DEBUG_HLP_DLL_PATH=%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\lib\dbghelp.dll

      ENV=PTC_D_LICENSE_FILE-=********

      ENV=CREO_APP=PMA

      ENV=CREOPMA_FEATURE_NAME=PROE_Foundation PROE_FoundationAdv (*** ** *** ***4 *****)

      RUN="%MECH_LP%\install\nt\pro_mech_env.bat"

      RUN="%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\nms\nmsd.exe" -noservice -timeout %NMSD_TIMEOUT% &

      RUN="%PRO_DIRECTORY%\%PRO_MACHINE_TYPE%\obj\xtop.exe"

      // USER - PSF

      // Add User specific environment or run applications below here

      ENV=DBG_NCPOST_PATH=%CREOAPP_DIRECTORY%\bin

      ENV=PRO_ALLOW_EARLY_RETURN=TRUE

      M
      MartinHanak24-Ruby III
      24-Ruby III
      January 19, 2015

      Steven,

      Routed_System_set is represented by numerical code 10105 inside the brackets on ENV=CREOPMA_FEATURE_NAME line. Simply delete this code.

      Martin Hanak

        P
        Praveee1-Visitor
        1-Visitor
        January 20, 2015

        Steven,

        There is a very similar issue with solution here "http://communities.ptc.com/thread/54084" titled Axis Display and Csys display on Creo 2.0 M100 is grayed out !

          S
          StevenSmith1-VisitorAuthor
          1-Visitor
          January 20, 2015

          Hi folks,

          I managed to get it working now. It appears that by removing the following from the config.sup file resolves the issues I was having.

          display_planes yes

          display_plane_tags yes

          display_points yes

          display_point_tags no

          display_axes yes

          display_axis_tags no

          display_coord_sys yes

          display_coord_sys_tags yes

          Thanks all for your help.
