Prismatic element Mesh Control utilize

Hi folks,
I'm wondering if it's possible manage elements that era created using the "Prismatic Elements" control.

Screenshot 2025-01-26 102528.png



It doesn't feel the other control on the geometry like "Maximum element size" or also the general Mesh setting as Max aspect ratio.

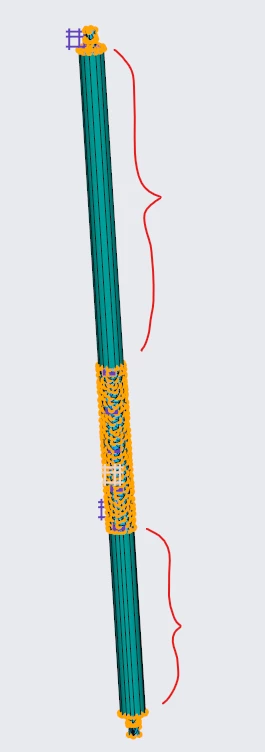

If you see the attached pic, where I've marked the two red brackets, I can't set the Wedge depth.



At the moment I work around this issue with the addiction of much volume regions (second pic attached).

Thanks

skunks
skunksAnswer
19-Tanzanite
Jan 28, 2025 8:54 AM UTC

yes, the prismatic elements control is not practicalabel

4 replies

skunks
19-Tanzanite
Jan 27, 2025 2:33 PM UTC

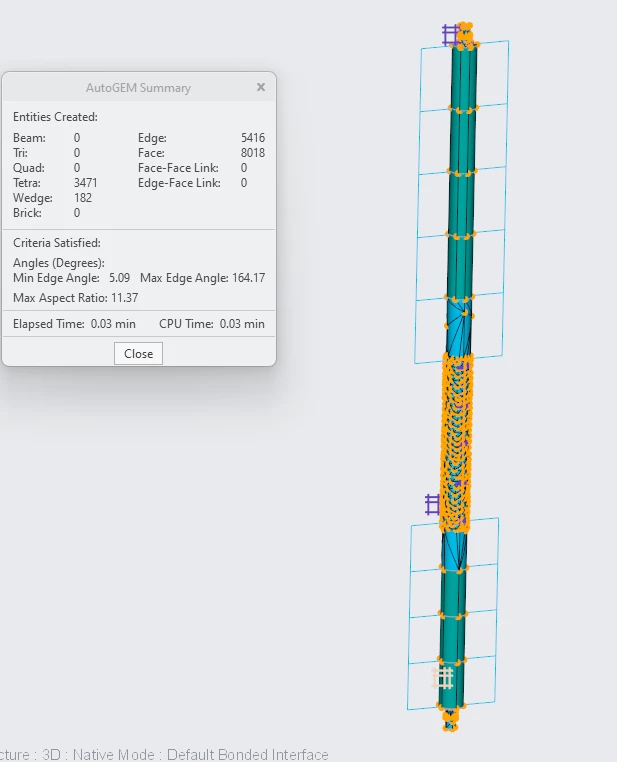

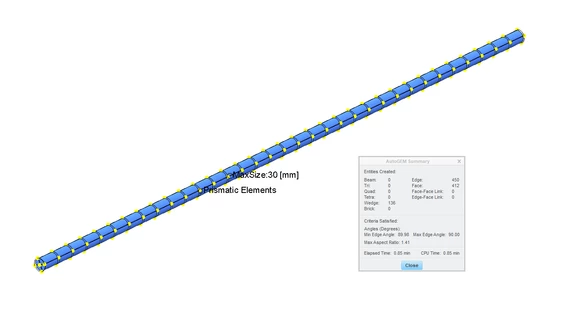

If I model like you, Simulate has some restrictions, like in the following picture:


I haven't used this control so far either, but have tried manual nets, as in the example here.

Translate
skunks
19-Tanzanite
Jan 28, 2025 7:15 AM UTC

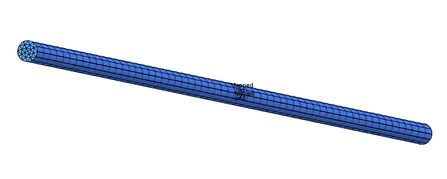

mesh:


Translate
