PTC CREO SIMULATE THERMAL STEADY

Forum|Forum|10 years ago
November 19, 2015
1 reply
4223 views

Hi all, my name is Gorka Garcia... I work by Integral PLM Experts, Partner PTC Spain

I've a customer that ask me about Thermal Analysis axisymmetric

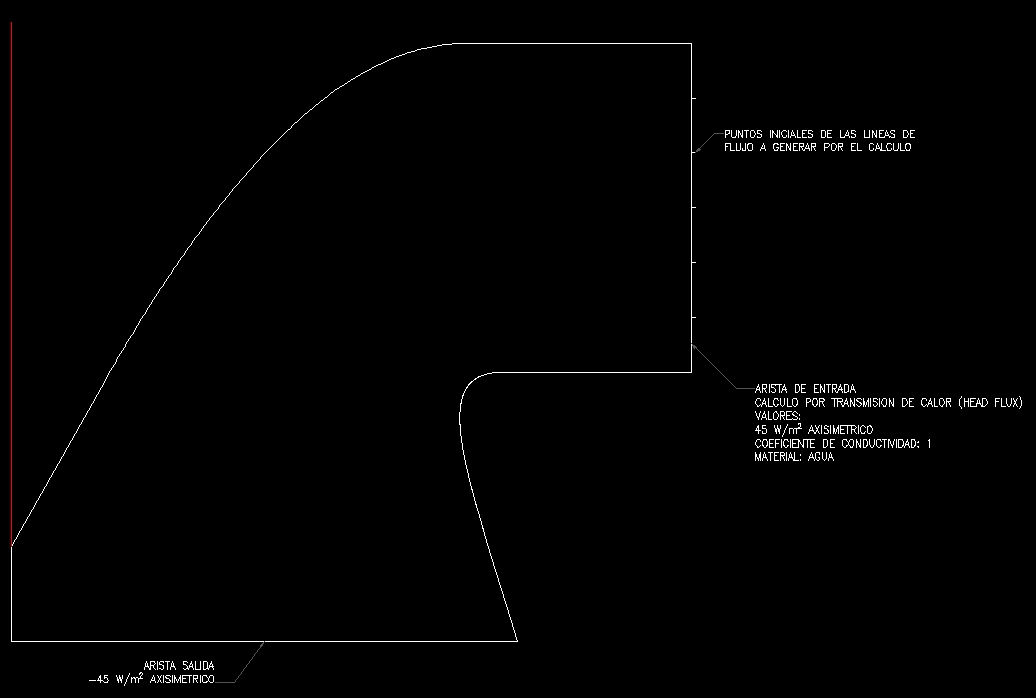

I've the load input (Vertical Line 45 W/m^2) and output (Horizontal Line -45 W/m^2)

The constraints temperature is 25ºC

The material is water... Then the properties of water for Coef. Poisson and Young Module are similar to Steel ( a small cheat )

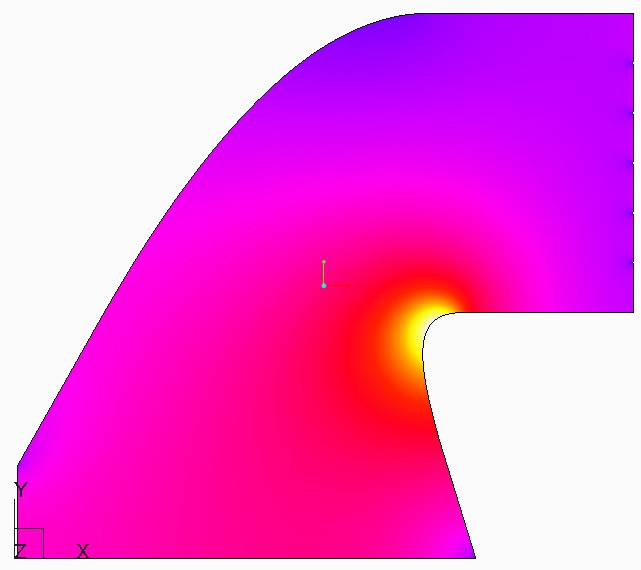

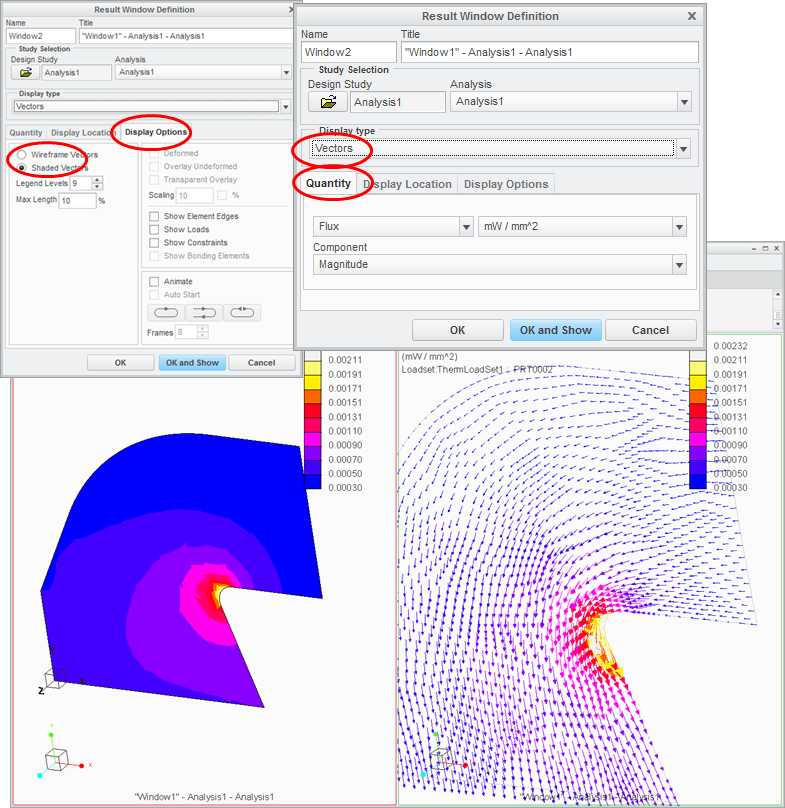

The result of Flux (W/m^2) is this.... initial in yellow curve zone and finished in output horizontal line... when should begin in input vertical line and continue to output horizontal line.

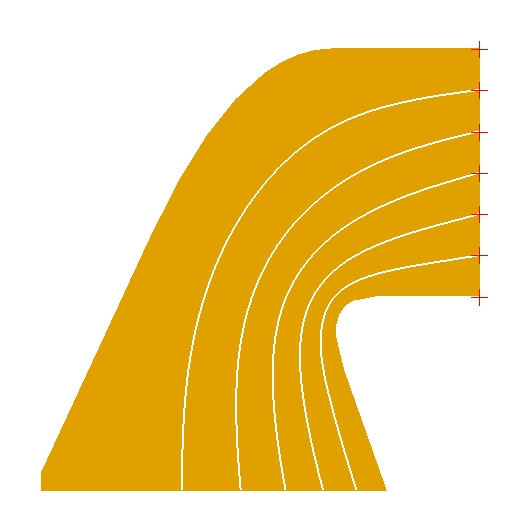

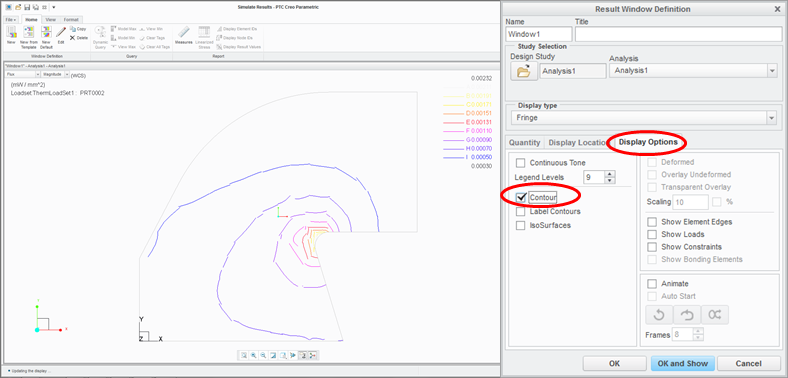

Also I should get the curves that go from line input to line output... as example this image of customer.

Who can you help me?

Thanks.

BR

Gorka Garcia
