Simulate Anchor Point Constraints [Please Help me !]

  • August 17, 2022
  • 1 reply
  • 1378 views

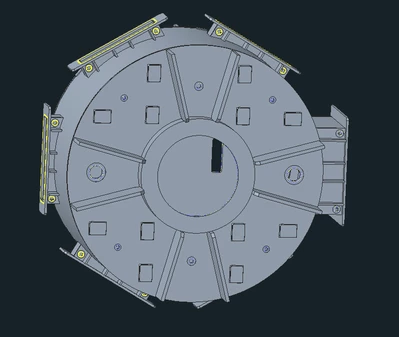

Vacuum pressure is applied into the center of the chamber as shown.

This pressure can distort the circle.

A fixed constraint will anchor the square plate. (12 locations in total)

Q) How do I give a fixed constraint? (You have to consider that the circle can be distorted.)

The Creo version I use is 7.0.

Creo super master please help





1 reply

S
SweetPeasHub17-Peridot
17-Peridot
May 1, 2023

This question is unclear. We do not know if you need help to apply a basic constraint to the model or if you are concerned about the situation with your specific model and what the correct way to constrain it might be. Also the description about the square plate being constrained is not clear. There are 12 rectangular features facing us and there is what appears to be a more square appendage facing right that might be held by 12 clamps or screws that we cannot see. If you are concerned about the constraints also preventing the distortion you expect then with some further conversation the community might be able to assist formulating the problem correctly. It has been a while so hopefully you figured it out or had some other help.
