stress / cross-section of a beam analysis

hi,

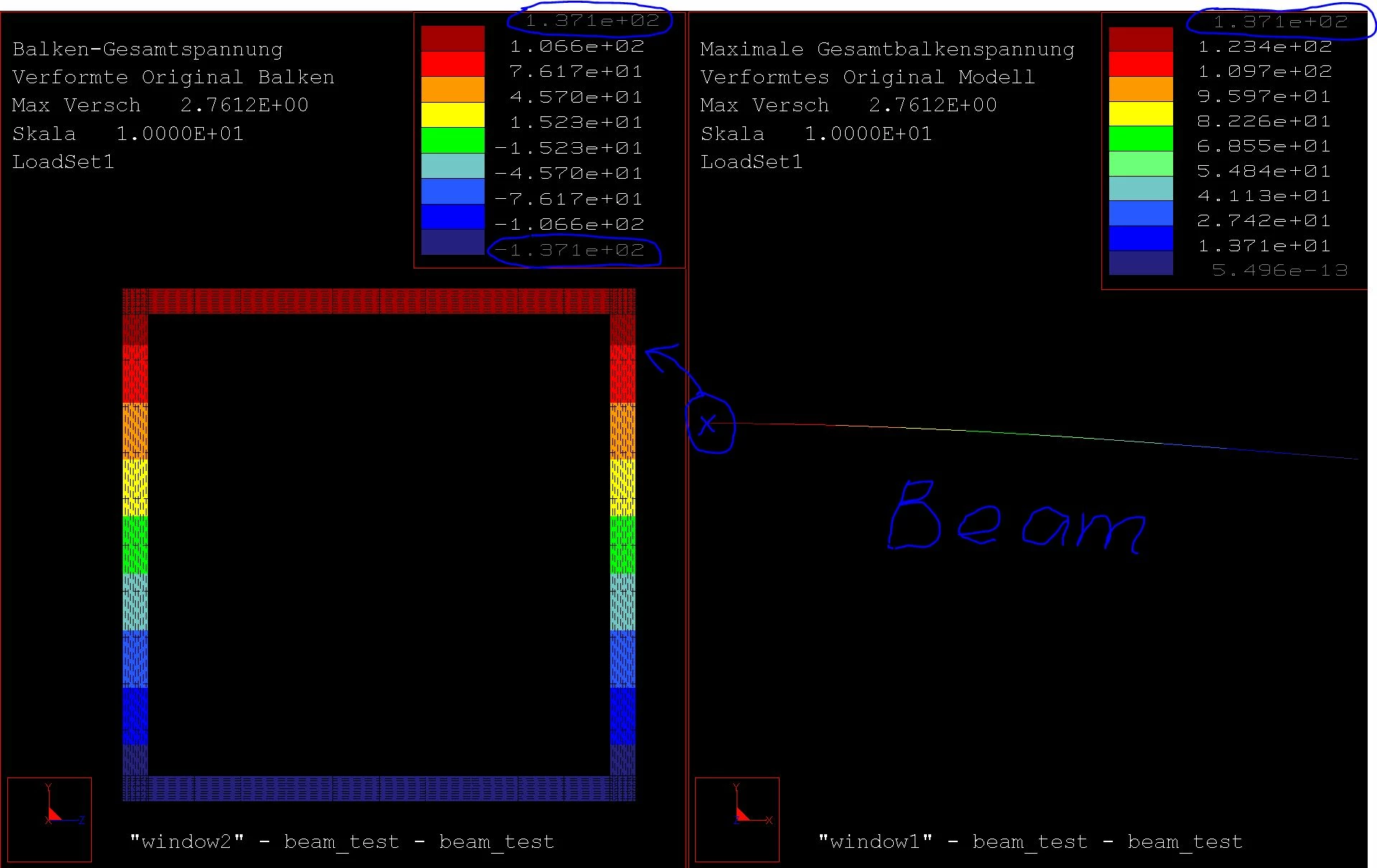

is it possible to display stresses in creo simulate 4 or 5 over the cross-section of a beam analysis (as previously possible in "old" MECHANICA)?

unfortunately i don't have creo simulate 4 and 5



regards

SweetPeasHubAnswer
17-Peridot
June 19, 2018

No, Creo 5 has no cross section view.

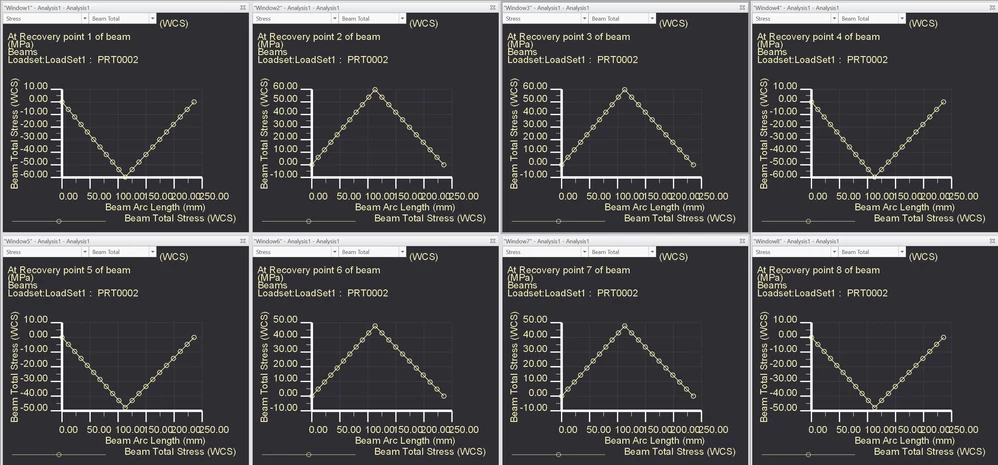

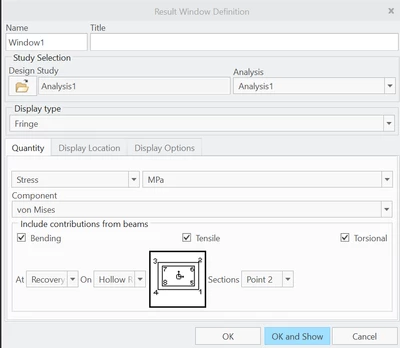

Instead stress recovery points vs. the length of the beam.

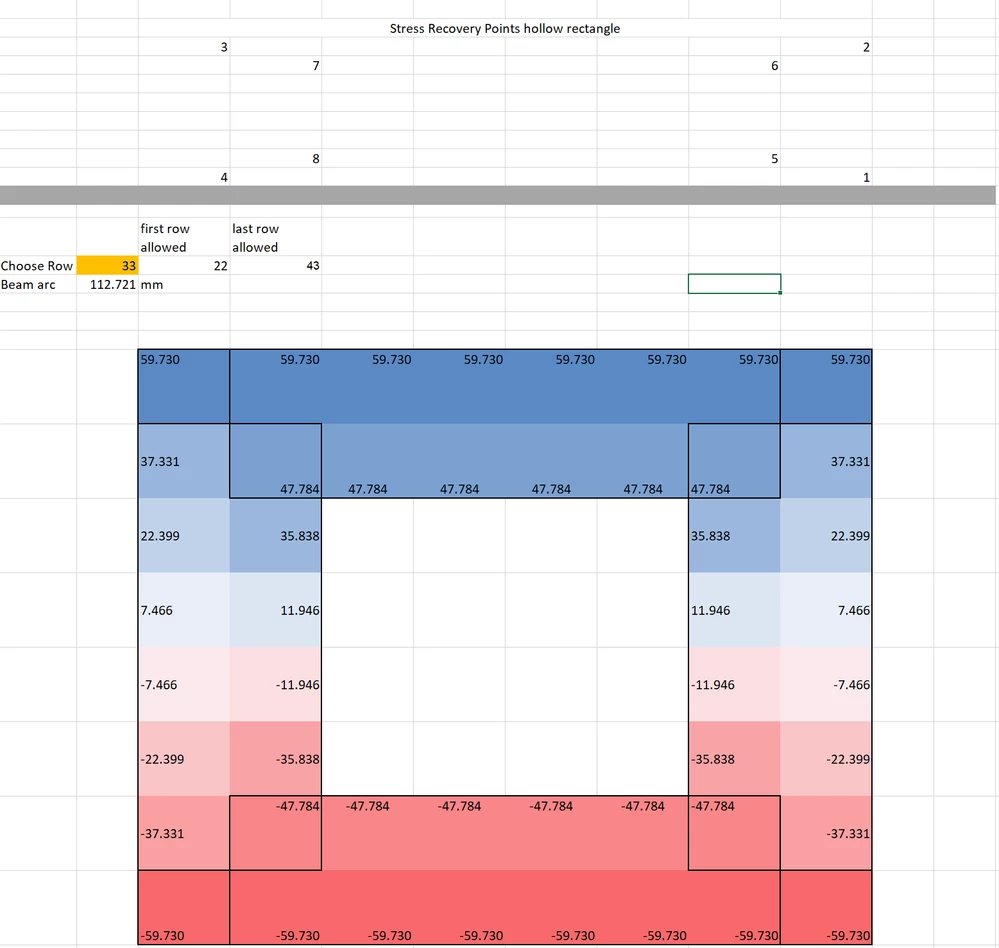

Attached example possible workaround using excel by exporting 1.xls, 2.xls etc. then use "Section Plot.xls"

(open all 1.xls, 2.xls etc. before open "Section Plot.xls")








View in thread

1 reply

SweetPeasHub17-PeridotAnswer
17-Peridot
June 19, 2018

No, Creo 5 has no cross section view.



Instead stress recovery points vs. the length of the beam.

Attached example possible workaround using excel by exporting 1.xls, 2.xls etc. then use "Section Plot.xls"

(open all 1.xls, 2.xls etc. before open "Section Plot.xls")
