Stress Simulation - Max displacement value

  • November 6, 2020
  • 1 reply
  • 1644 views

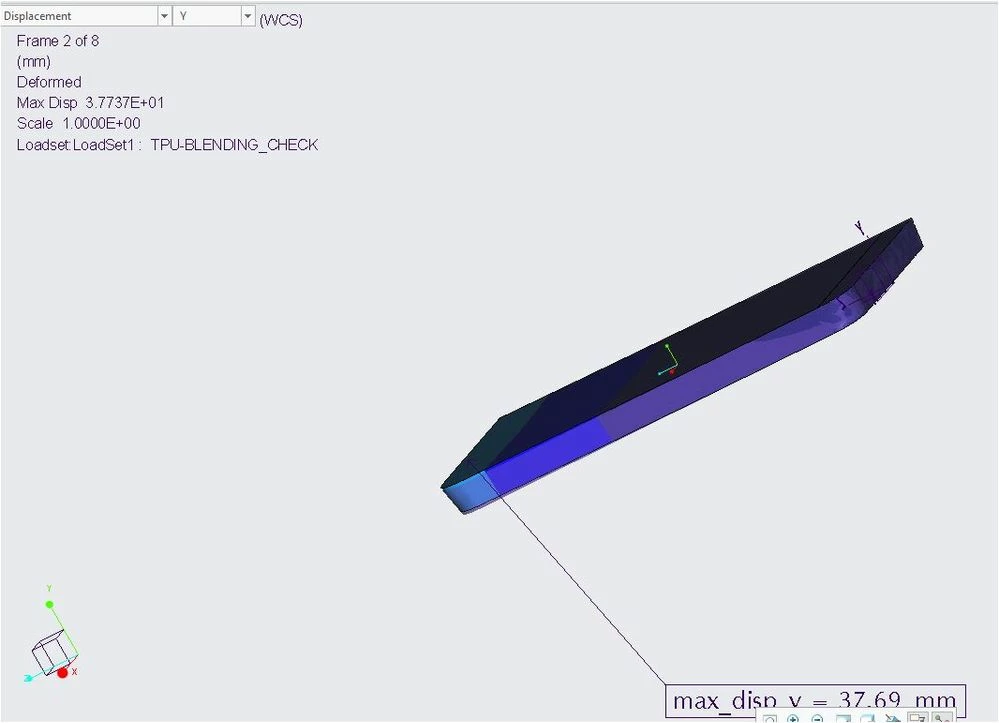

I have done simple stress simulation to check the max displacement of parts' blend amount from Y axis



It is shown the max_disp Y value is 37.69mm, but I see from the animate picture, the movement of parts is less than 3 mm. I had set the DISPLAY OPTION Scaling to 1


What does it mean of Max Displacement_Y value??



Thanks

1 reply

B
bschlosser1-Visitor
1-Visitor
November 10, 2020

The number in the upper left is 3.7e1.  It is the same 37 mm displacement as your annotation.  Are you referring to some other value or result that isn't shown?
