Surface/volume regione in cylinder geometry

  • March 17, 2020
  • 1 reply
  • 4695 views

Hi,

I have difficult to define a surface/volume regione at 3D part with cylindrical geometry

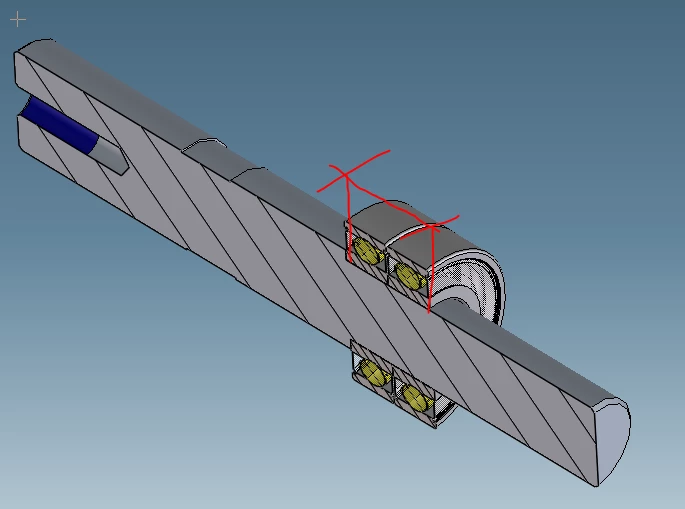

For example ( in attached file), I would like to apply a bearing load on a surface regione ugual to sum of width of two bearings.

can you help me about it?



Thank you.



Have a nice day





1 reply

tbraxton
22-Sapphire II
22-Sapphire II
March 17, 2020

Create a surface in the model that represents the contact area of the bearing race and shaft. You can then apply the load to that region when defining the boundary conditions.



You can copy the outer surface of the shaft and then trim that to match the bearing interface.

14-Alexandrite
March 17, 2020

it's not possible without modification of the 3D model?

16-Pearl
March 17, 2020

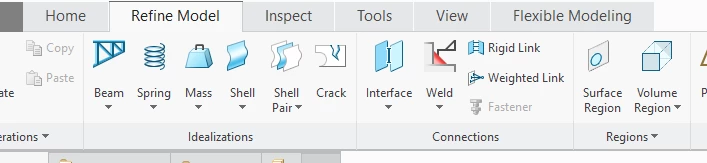

You can add a surface region to the OD from within Simulate. This way you only modify the geometry as part of the analysis only. Look for the tool that allows you to create a "Surface Region" from within the "Refine Model" tab:






Make sure you also use the "Bearing" load option so the load distribution will be more realistic.
