Threaded bolt - FEM calculation

Hello, I would like to calculate the bolts, but I don't know exactly how to set the constraints.

Should the thread also be designed?

I'm hoping for a good idea.

Designed with Creo 10.

19-Tanzanite

OK, here V2

Author

12-Amethyst

I considered calculating the bolt on its own. There is a line contact between the casting and the bolt. The bolt is supported on the face side.

Translate

Author

12-Amethyst

Translate

19-Tanzanite

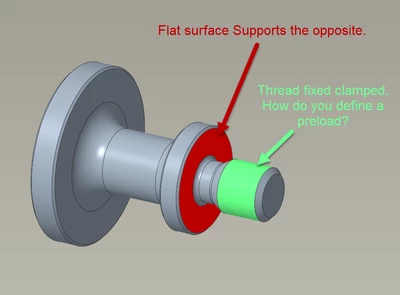

here my example
