Torque Measure in Creo Simulate

  • October 17, 2013
  • 1 reply
  • 2131 views

How do I set up a measure for torque at a constraint in Creo Simulate?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

N
neomechanikos1-Visitor
1-Visitor
October 17, 2013

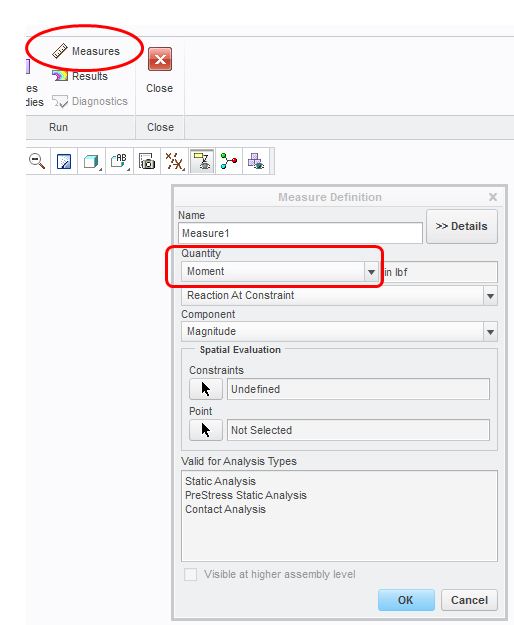

By using the word torque, I'm assuming you mean a moment reaction at a contstraint in a static or contact analysis. Within the simulate application, go to the home tab, run section, and select Measures. In the new window choose moment for quantity and choose whether you want a magnitude or a certain component realtive to the world coordinate system. Then click the arrow next to contraints and select your constraint. Then click the arrow next to points and select the point at which you want the moment evaluated. Hit OK.
