Use a measure to calculate force in simulate

  • March 18, 2016
  • 3 replies
  • 5849 views

Hello,

I want to conduct a drop test using simulate. I can calculate the energy on the component when it hits the floor using the formula mgh (mass x gravity x height). However, it's difficult to convert this to impact force. The impact force is given by energy divided by deflection. I need to get the deflection in order to apply force, but I need to apply force to get deflection.. Catch-22, mutually dependent condition.

I thought of a solution would be to create a measure for deflection, then use this deflection in a formulae to apply force.

Anyone know how to do this?

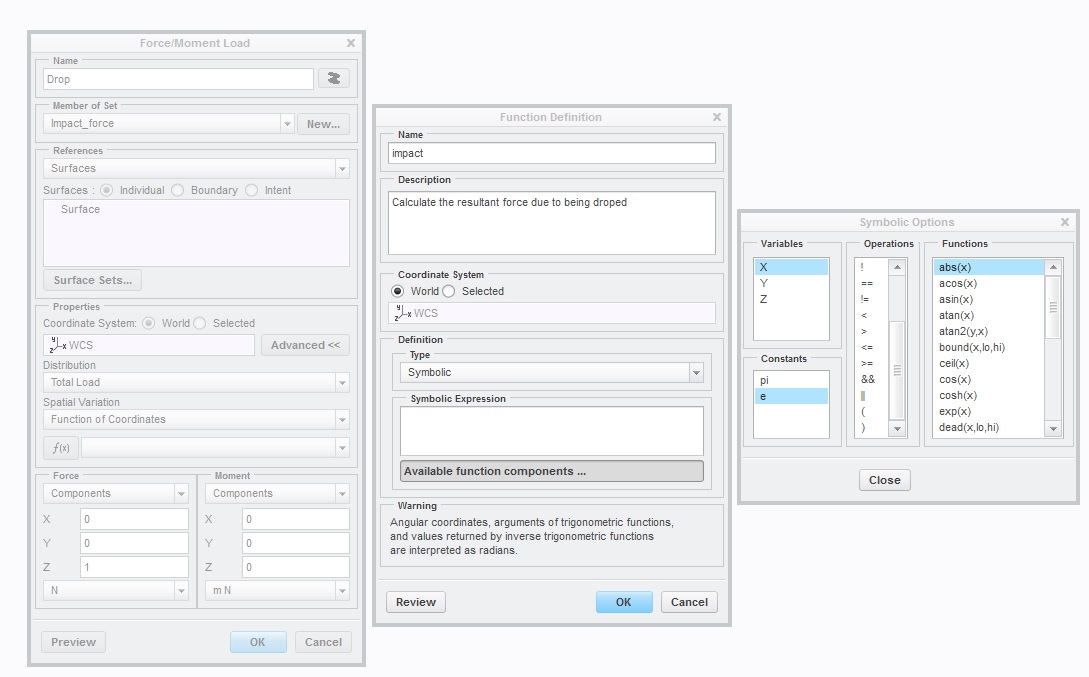

Below is the Load as function page in simulate where am trying to do this.

Cheers.



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by kmacharia

Thanks all for your help. I came up with a solution,

Just to clarify the question. The part am analysing does not come into contact with the floor. It's a sheet metal part mounted inside a rugged plastic case (Pelicase). The sheet metal deflects when the plastic case hits the floor.

My solution was to guess the deflection and use it to calculate the impact force. I then compared the deflection from Creo simulate to my guessed deflection. From this I made a better guess of the deflection and run the analysis again. I did this till I got the accurate deflection.
