Welding console Constraint

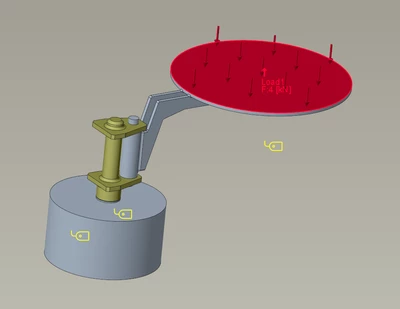

I would like to calculate the welding bracket correctly. But I have not yet found the right approach.

Or should I simplify the model first?






Load: 4kN


*********************************************************************************

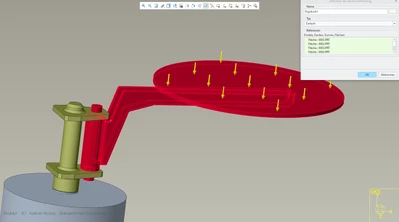

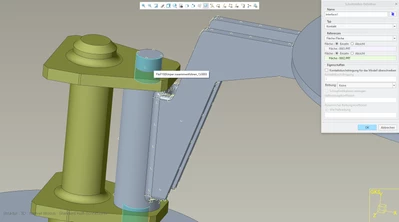

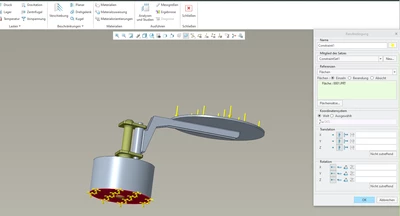

ptc2788381_3-1719907366690.pngptc2788381_4-1719907556945.pngptc2788381_5-1719907600797.png



JohnWickAnswer
12-Amethyst
Jul 3, 2024 12:22 PM UTC

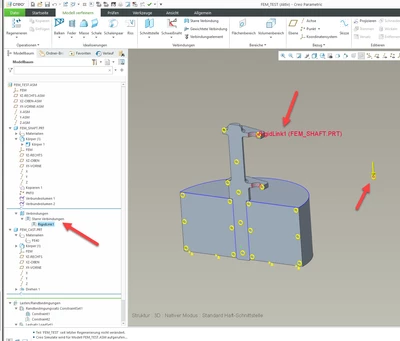

Thank you for your help. I didn't know that the rigid connection was defined in the part.  👌




View in thread

13 replies

skunks
skunks19-Tanzanite
19-Tanzanite
Jul 2, 2024 11:06 AM UTC

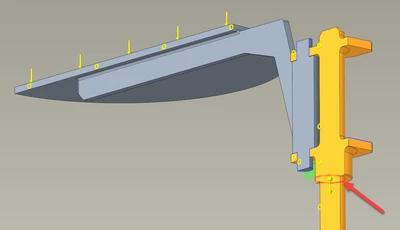

my example to start with

Translate
JohnWick12-AmethystAuthor
12-Amethyst
Jul 2, 2024 11:29 AM UTC

Why did you delete the radius here?








Translate
JohnWick12-AmethystAuthor
12-Amethyst
Jul 2, 2024 11:37 AM UTC

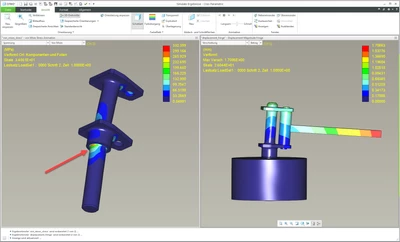

I have started another experiment.

Here in the radius I have increased mechanical stresses.










Translate
