Am trying to rotate an illustration in Isodraw with callouts so that I can import to Arbortext Editor.The problem is that although the illustraion is easily rotated the callout numbers remain the same. I could save the illustration in another format but then I will lose the intelligence in the callouts.

    1 reply

    D
    DmitryTsarev17-Peridot
    17-Peridot
    May 12, 2011

    Louise

    Are you working with 3D or 2D objects? Can you provide a video or screenshot illustrating the issue?

    P
    ptc-31051541-VisitorAuthor
    1-Visitor
    May 12, 2011

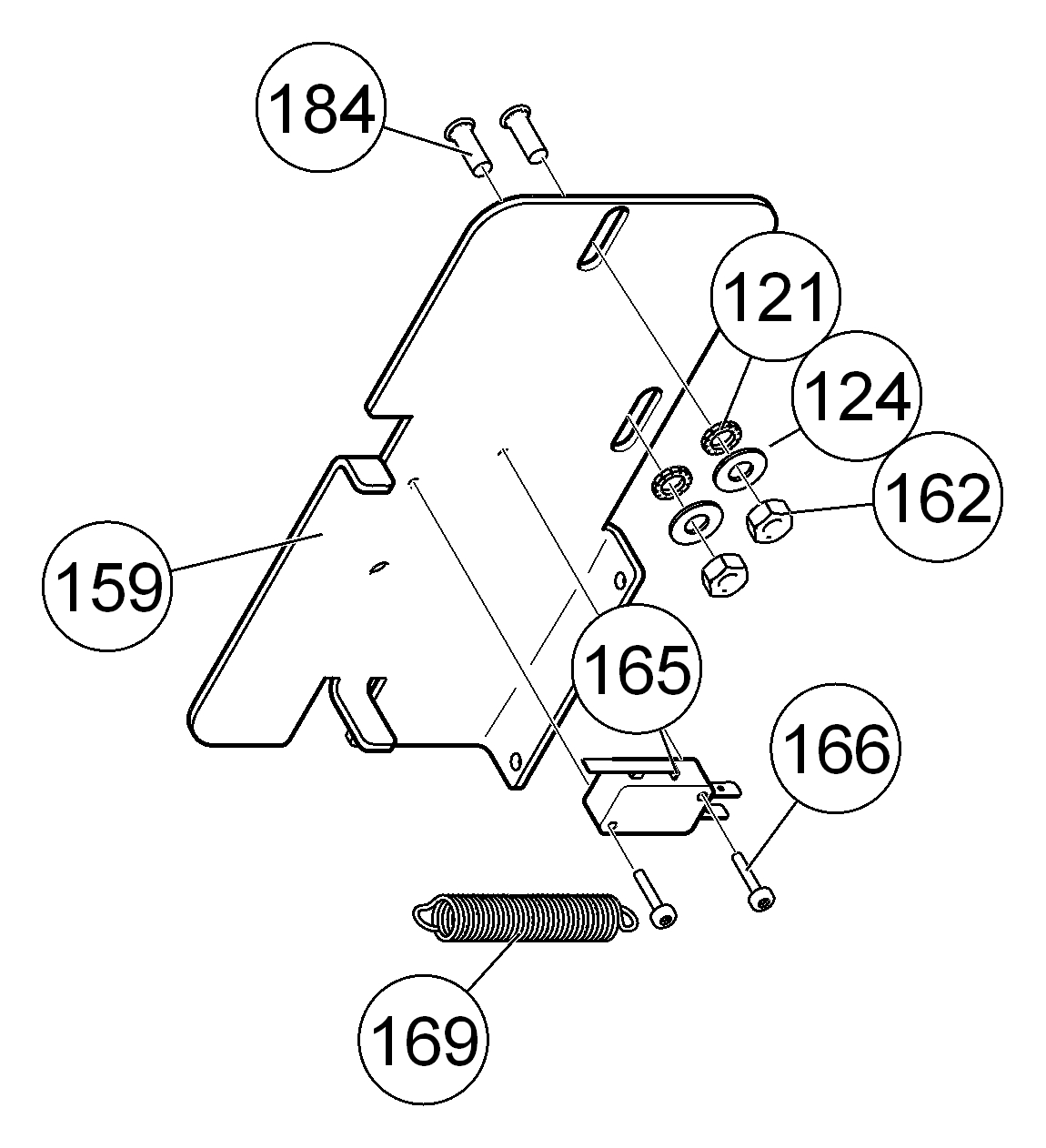

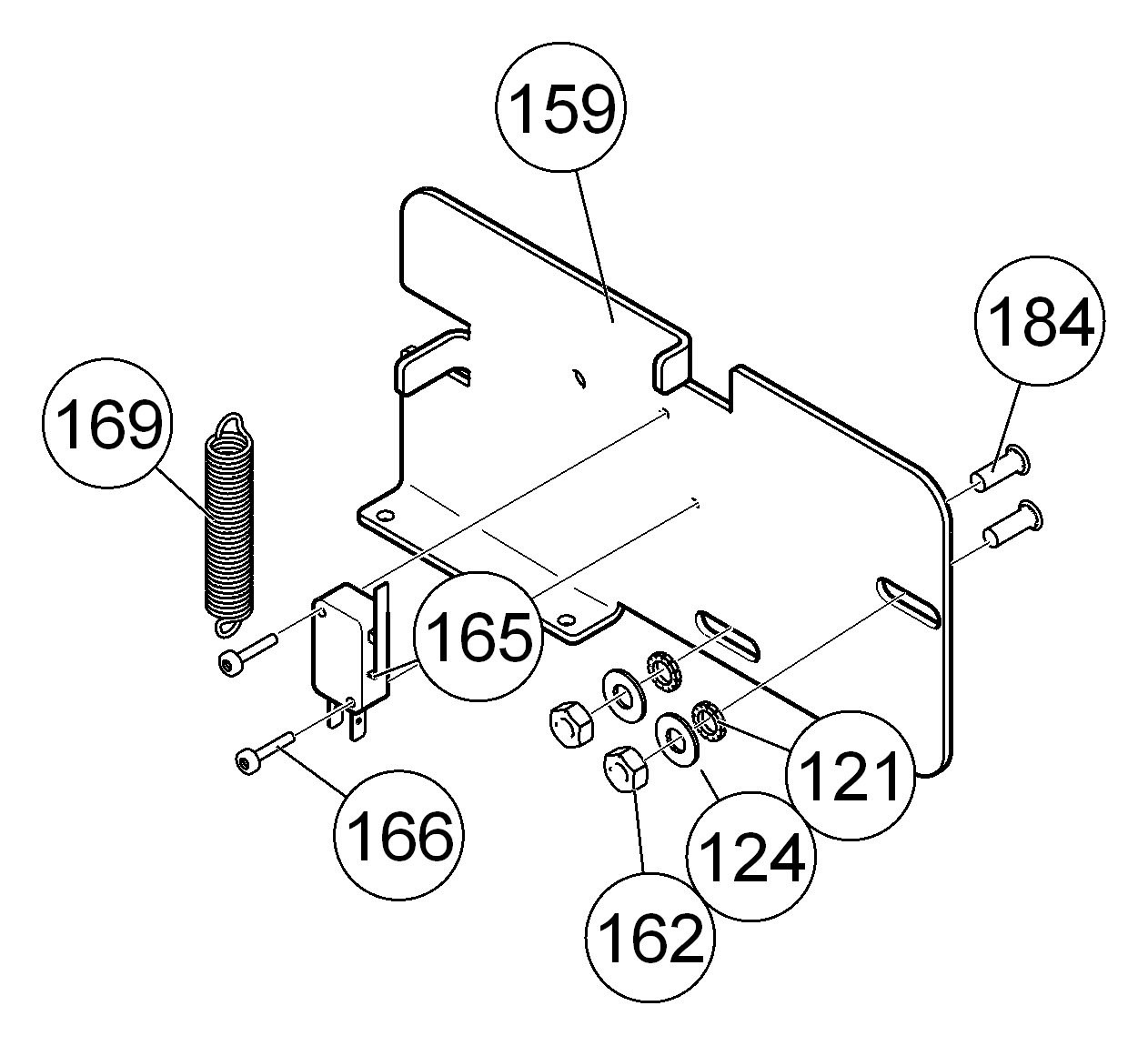

    Thank you for your quick response! I am working with 2D objects. Please find attached as 2 JPs (if that is ok). As you can see the callouts remain the same when the illustration is rotated. The problem is that I want to insert this into Arbotext as shown in “rails un-rotated” but with the callouts written in the right direction. I want to avoid change the style sheet in Abortext Editor. The first image is rotated.

    Best regards,

    Louise Walker

    D
    DmitryTsarev17-Peridot
    17-Peridot
    May 16, 2011

    Louise

    I don't think I understand the issue. How do you want callouts to change?
