Question

Can you change the distance between lines in Isodraw hatching?

  • September 10, 2012
  • 1 reply
  • 2449 views

I have an illustartion with lots of hatching and thought it would be great to just have different gaps between the hatching lines.

I couldn't find a way to change the gaps, so decided to create my own hatching styles.

I copied the hatchings in the DeafultHatchings.iso illustration, then doubled up all the lines to make smaller hatchings of each type, ensuring that I cropped any lines outside the box and gave each hatching an object name.

Seemed to work fine - hatching adds to illustration OK.

But when I print, I get an error message:

Error: undefined

Command: get

Stack: /

The last character after the word Stack: I can't reproduce - it's more like the accent over a letter than a forward slash.

If I change all my new hatchings to standard Isodraw or CGM ones, it prints fine.

Anyone know what I could have done wrong, or alternatively if there is any way to specify line gaps in standard hatching.

    1 reply

    V
    24-Ruby III
    VladimirN24-Ruby III
    24-Ruby III
    September 11, 2012

    Hello,

    Can you provide this hatching example? And what version of Arbortext IsoDraw are you using?

    T
    TimSharp1-VisitorAuthor
    1-Visitor
    September 11, 2012

    I've just discovered what was wrong with my hatching - one of them had fill switched on for the bounding box. Once I switched fill off, the illustration printed OK.

    My original question remains though - is there any way to set the line gap rather than having to make lots of similar hatchings just because you want different gaps.

    If not, is there any way to expand the hatching menu so that the list of hatchings is longer? When I stretch the menu, the list stays the same size, only showing 4 hatchings with a scroll bar.

    V
    24-Ruby III
    VladimirN24-Ruby III
    24-Ruby III
    September 12, 2012

    Tim Sharp wrote:

    ...My original question remains though - is there any way to set the line gap rather than having to make lots of similar hatchings just because you want different gaps...

    1. You can use macro example ("MACRO Generate_Hatchings") that create hatchings with diagonal lines of a defined distance from each other for IsoDraw: http://communities.ptc.com/servlet/JiveServlet/download/182842-38438/HatchGenExample.txt.zip

    2. Try to edit "Cgmhatchings.cgm" by using any text editor:

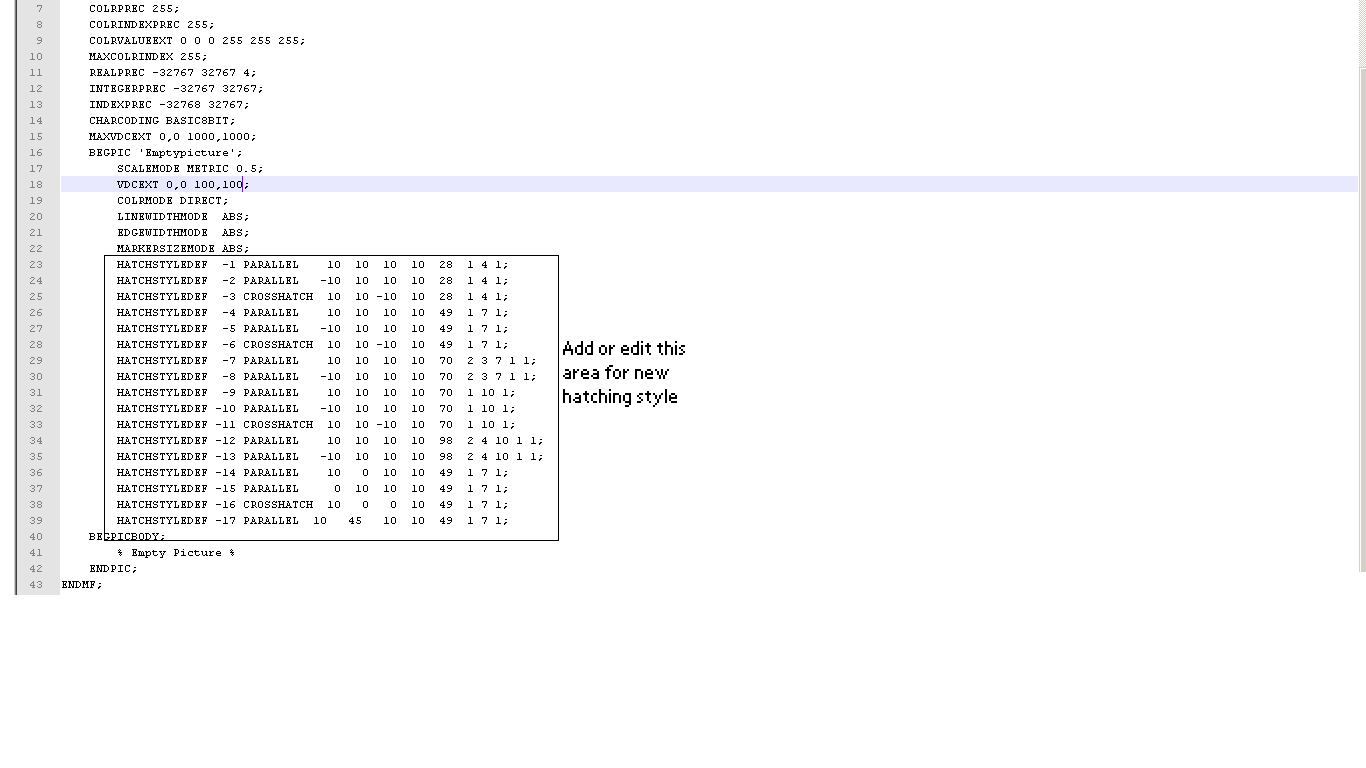

    http://communities.ptc.com/servlet/JiveServlet/showImage/2-183315-33585/CGM_HAtch.PNG

    More comments can be found in this topic: http://communities.ptc.com/thread/38562

    Tim Sharp wrote:

    ...If not, is there any way to expand the hatching menu so that the list of hatchings is longer? When I stretch the menu, the list stays the same size, only showing 4 hatchings with a scroll bar...

    Such possibility isn't present.
