Question

Create a custom line style using a bit pattern

  • December 21, 2011
  • 1 reply
  • 2230 views

Hi,

Is there a way to create custom line styles? I need to generate a box in which the line style is a gray bit pattern. The pattern I'm seeking is similar to the 15% gray in the pattern section of the fill window. I already have the box (using the rectangles tool) and have set the correct line width. I just can't seem to be able to customize the dot pattern.

Thanks

    1 reply

    V
    24-Ruby III
    VladimirN24-Ruby III
    24-Ruby III
    December 22, 2011

    Hello!

    Ken Hurst wrote:

    ...Is there a way to create custom line styles? ...

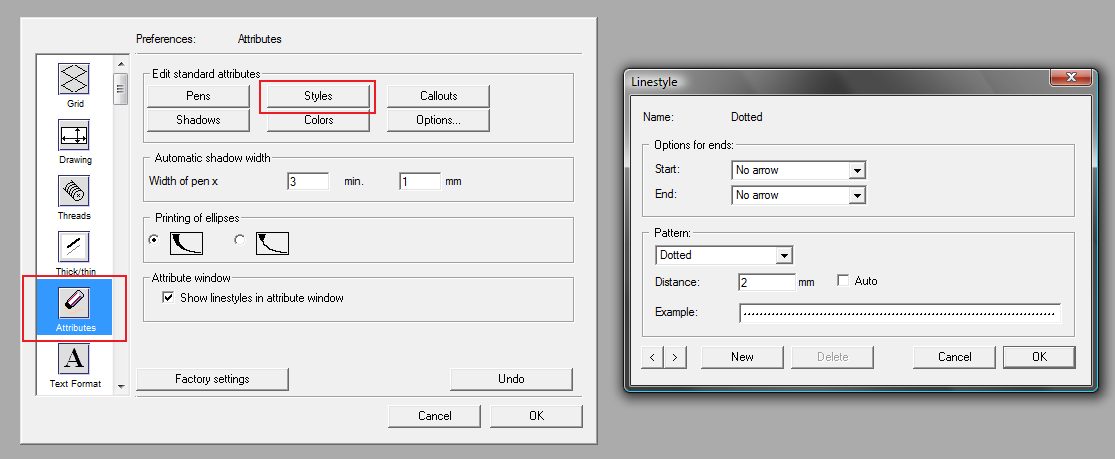

    1. Close all active documents in a window. Then go to "Edit" -> "Preferences" -> "Attributes" -> "Styles":

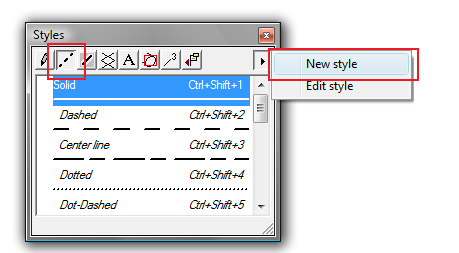

    2. In active document. Go to "Window" -> "Show attribute window" -> "Styles" -> "New style":


    P.S. What version of Arbortext IsoDraw are you using?

    S
    swri7-BedrockAuthor
    7-Bedrock
    January 28, 2012

    I'm using version 7.01

    V
    24-Ruby III
    VladimirN24-Ruby III
    24-Ruby III
    January 28, 2012

    The screenshots (above) were created in version 7.1.
