Question

Generating contour....

  • July 4, 2012
  • 1 reply
  • 1587 views

Good day all,

I have a .cgm file which contains illustrations related to manuals. It has lot of nodes in it. My aim is to create an single boundary for the entire illustration up to its extents. some of the lines are not joined correctly in the extents. If i apply generate contour, i am not able to get an proper boundary. Help me out in this situation. Thanks in advance.

    1 reply

    V
    24-Ruby III
    VladimirN24-Ruby III
    24-Ruby III
    July 4, 2012

    Hello,

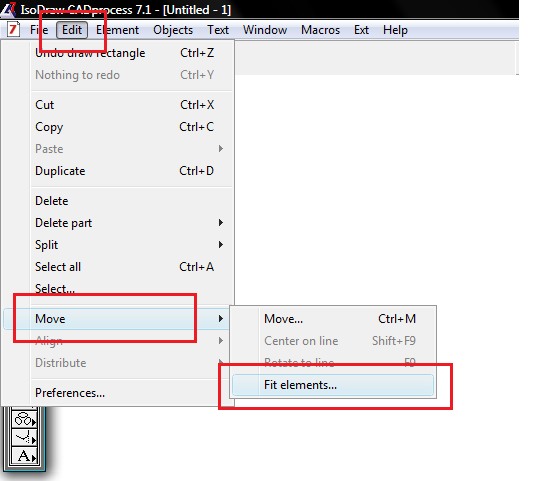

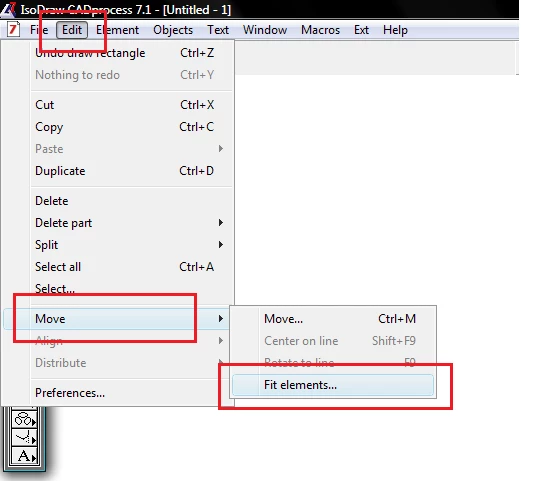

    Try to use "Fit elements" command (in main menu go to "Edit" -> "Move" -> "Fit elements"):



    M
    mano1-Visitor
    1-Visitor
    March 17, 2014

    Hello,

    Is it possible to creater contour with these two steps in 7.1? I thought creating outerline(contour) in 7.1 is impossible?

    Manoj
