IGES import

Hello,

pardon my inexperience. I have very simple question. I can open IGES file from File>Open menu.

BUT if I open the IGES file by doublecliking it, the IsoDraw program opens blank document with nothing imported.

Anybody has an idea what it could be? Users require import of igs by doubleclicking the file.

Thank you for any response.

Milos

VladimirNAnswer
24-Ruby IV
Nov 3, 2014 6:45 PM UTC

I can recommend you the following:

1. Install the latest service release of Arbortext IsoDraw 7.3 M031.

2. Report about your issue to PTC's technical support ("Create a New Support Case"): https://support.ptc.com/apps/case_logger_viewer/auth/ssl/log

View in thread

8 replies

VladimirN24-Ruby IV
24-Ruby IV
Aug 13, 2014 6:49 AM UTC

You need to set an association with the IGES file for Arbortext IsoDraw. Right-click on the file: "Open with" -> "Arbortext IsoDraw" (you will need to specify on the application by selecting the path to the executable file: for example, "C:\Program Files\PTC\Arbortext IsoDraw 7.3\Program\IsoDraw73.exe") -> "Always use the selected program to open these files".

Translate
MilosP1-VisitorAuthor
1-Visitor
Aug 13, 2014 7:06 AM UTC

Thank you for your reply.

Well that is what I have. The program will start but does nothing. New document is created (e.g Untitled-1 but nothing is imported and no import dialog opened.


However if I go to File>Open and select the igs file it is imported - with or without the dialog window based on the IGES Import preferences.

Translate
VladimirN24-Ruby IV
24-Ruby IV
Aug 14, 2014 6:35 AM UTC

Try to test it file from attachment ("Part.igs"). It works fine for me (using the procedure described by me above).

Translate
MilosP1-VisitorAuthor
1-Visitor
Oct 31, 2014 5:55 AM UTC

Seems like nobody has this problem, but it really is annoying that everything is setup as it suppose to be and IsoDraw is still opening blank document instead of importing. Import from file menu works fine, file association is setup the same way as VladimirN is describing. Anyone?

Translate
VladimirN24-Ruby IVAnswer
24-Ruby IV
Nov 3, 2014 6:45 PM UTC

I can recommend you the following:

1. Install the latest service release of Arbortext IsoDraw 7.3 M031.

2. Report about your issue to PTC's technical support ("Create a New Support Case"): https://support.ptc.com/apps/case_logger_viewer/auth/ssl/log

Translate
    MilosP1-VisitorAuthor
    1-Visitor
    Dec 29, 2014 9:03 AM UTC

    Well the ticket was open with PTC Support to resolve the issue and we have not heard back.

    Translate
    psshetty171-Visitor
    1-Visitor
    Jun 16, 2018 7:16 PM UTC

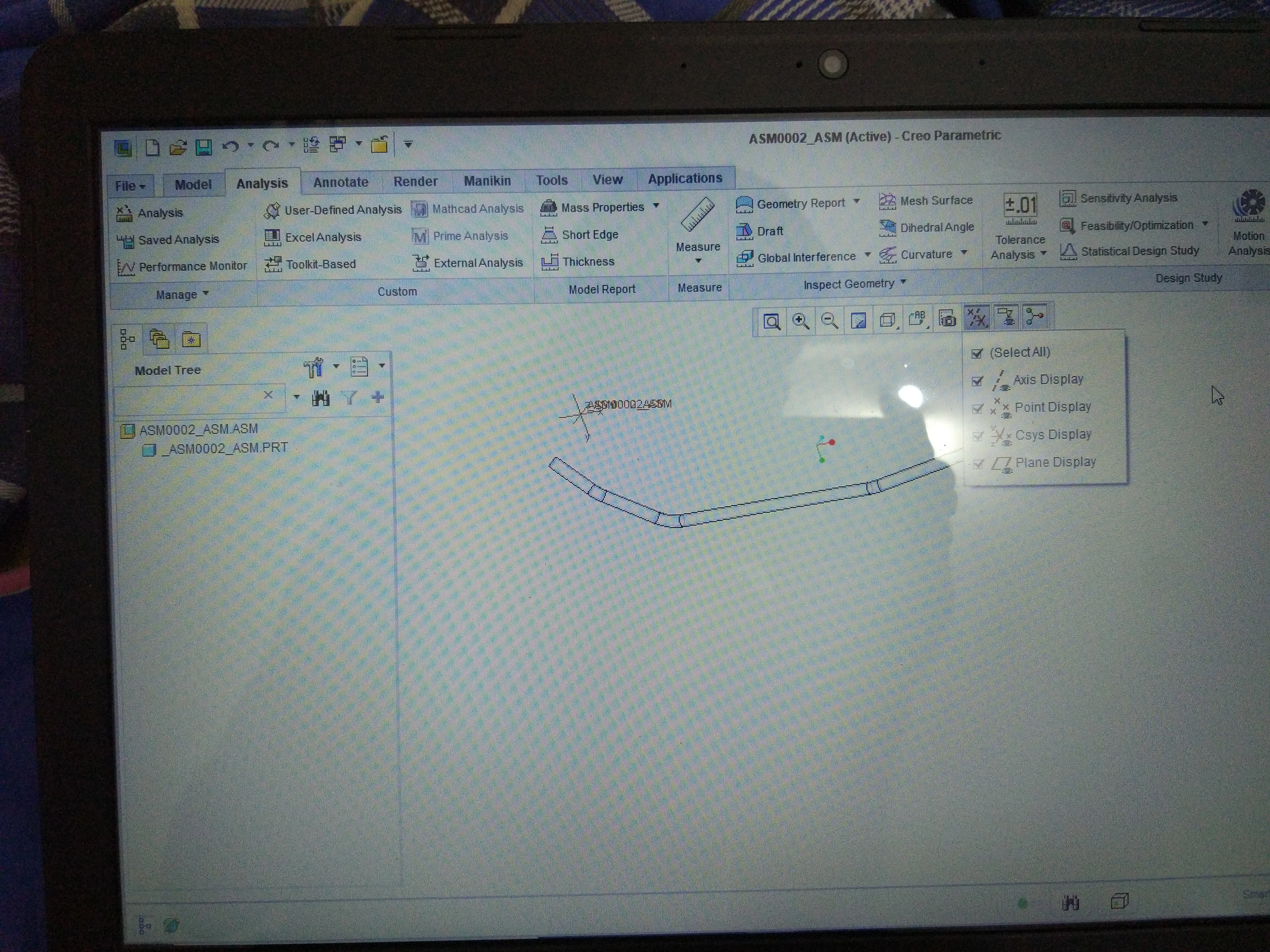

    How to edit these types of drawings can't view the plances
