Question

Isometric view Problem

  • November 24, 2012
  • 2 replies
  • 1462 views

Dear friends,

I have some pro-E Assembly, when i was open the assembly in Isodraw 7.1 that was not set Isometric view 30/30. How can i fit correrct view.

Thanks

    2 replies

    M
    mbalko1-Visitor
    1-Visitor
    November 26, 2012

    For better understanding, please let us see a screenshot ...

    P
    ptc-46297791-VisitorAuthor
    1-Visitor
    November 26, 2012

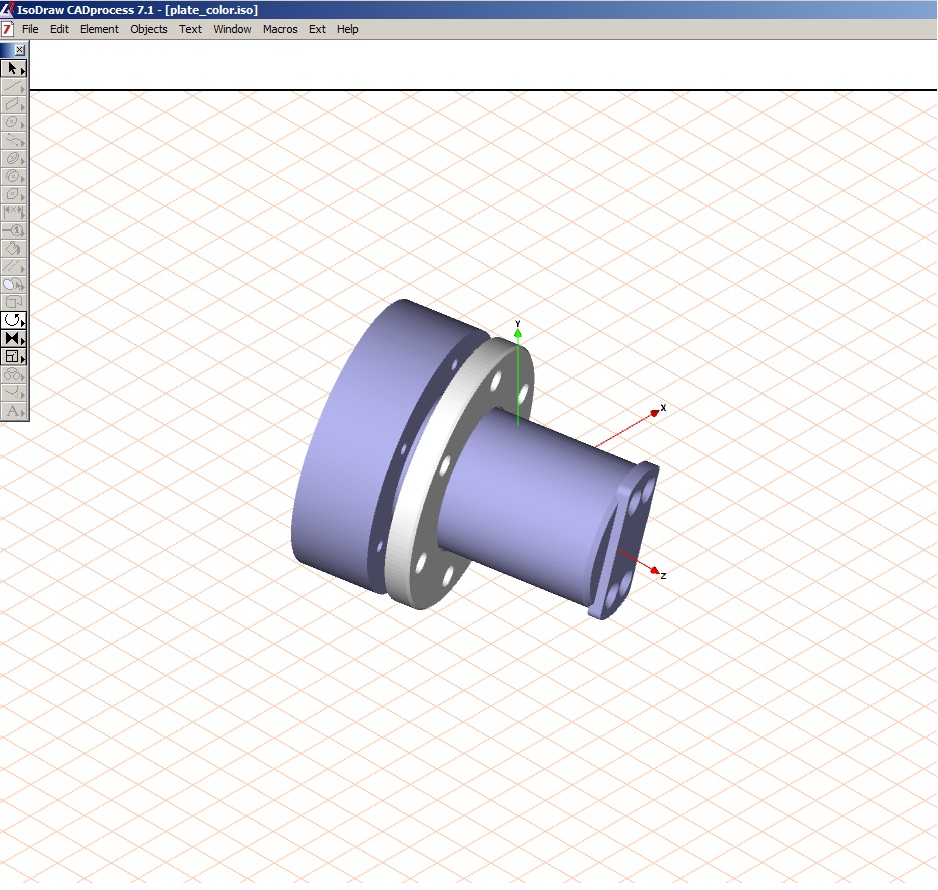

    I have attached screen shot, See the model that was not fit in correct isometric view 30/30.

    M
    mbalko1-Visitor
    1-Visitor
    November 26, 2012

    it is shown in isometric view - it is just a little bit rotated ...

    The problem is, that the model has been saved in mounting position (I think in the construction office).

    There are two possibilities: either you rotate it until it is in the correct position. Or you ask in the construction office to save the modell in correct position.

    P
    ptc-46297791-VisitorAuthor
    1-Visitor
    November 26, 2012

    Thank you markus,

    I will discuss my Engineer.
