3D annotation visibility

Well, I just created a note not a feature. I duplicated the notation in a annotation feature however with the same results except when I select the annotation feature, it highlights the surface the notation is attached to (even tho the notation itself does not appear). I also checked all my layers, and the only layer hidden is the "Hidden Items" layer which does not contain my notations.

Right clicking the annotation feature - info brings up the normal feature ID and parent info. Right clicking the notation only gives me info for the model and nothing is highlighted.

Just checked out a weld symbol ... that works normally as well. I can see all 3D annotations except 3D notes.

Look for the config option "model_note_display no" in your Current Session. I have that in place so that all my standard hole notes don't clutter my screen. I also forgot it was there. I changed it to "yes" and anotation notes became visible.

In Reply to Dustin Hase:

Running WF5 M140, I cannot seem to create a visible 3D notation, yet dimensions work fine. I create and place the note (flat to screen or otherwise), it shows up in the model tree as shown and not hidden, but does not appear in the model in any set orientation. I have annotation datums visible, display_annoation set to yes by default, and visible_annotations_scope set to all. The notation doesn't even highlight in the model when I select it in the model tree.

Anyone know what I might be missing?

David H. Heipel, CAD Administrator
Zin Technologies, Inc.
NASA Glenn Research Center
21000 Brookpark Road, MS 86-10
Cleveland, OH 44135

That particular option doesn't seem to exist in WF5 M140. Strange. I seem to recall setting that option before as well.

In Reply to Dave Heipel:

Look for the config option "model_note_display no" in your Current Session.

David H. Heipel, CAD Administrator
Zin Technologies, Inc.
NASA Glenn Research Center
21000 Brookpark Road, MS 86-10
Cleveland, OH 44135

SOLUTION:

"Hello Dustin,

There is a separate switch for 3D notes. I have an icon on my toolbar that I put there a while ago. I have been trying to figure out where this resides in the menu structure and I can’t find it. I think it used to be in the TOOLSà ENVIRONMENT menu. Help doesn’t even find it. But if customize your toolbar by TOOLS à CUSTOMIZE SCREEN.

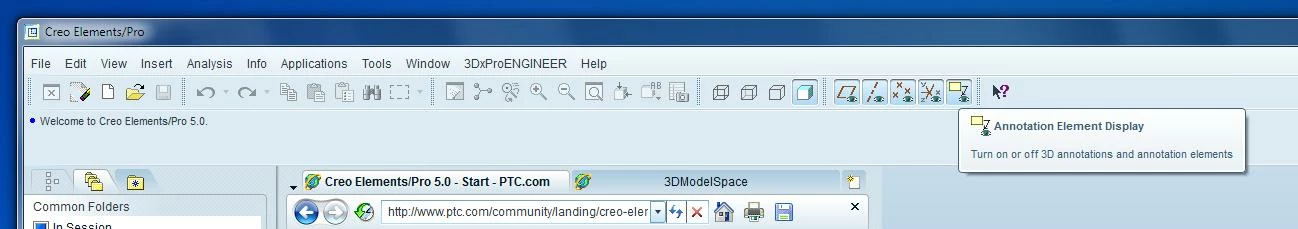

Then going to the COMMANDS tab, the VIEW Category and about half way down is the icon for 3d Notes Display.

That must be activated to see 3D notes (such as thread call outs for tapped holes).

I hope this helps."--Karl Krahmer

As far as I can tell, there isn't a way to accomplish this without the command button in your interface. I can't find an option to do this or a menu option. Logic would suggest it should reside in either VIEW-->DISPLAY SETTINGS-->MODEL DISPLAY or VIEW-->DISPLAY SETTINGS-->DATUM DISPLAY, but this particular display toggle is a ghost.

Thank you everyone for your assistance!

In Reply to Dustin Hase:

There used to be a check box in the Environment dialog box for the 3D notes Display. For some reason it's been removed. This is what the config option was turning on or off. As mentioned, the config option also no longer shows up on the options list. But since these legacy things are retained, it still works. The customize screen approach seems to be the only way to get this button back now.

That particular option doesn't seem to exist in WF5 M140. Strange. I seem to recall setting that option before as well.

In Reply to Dave Heipel:

Look for the config option "model_note_display no" in your Current Session.

David H. Heipel, CAD Administrator
Zin Technologies, Inc.
NASA Glenn Research Center
21000 Brookpark Road, MS 86-10
Cleveland, OH 44135

SOLUTION:

"Hello Dustin,

There is a separate switch for 3D notes. I have an icon on my toolbar that I put there a while ago. I have been trying to figure out where this resides in the menu structure and I can’t find it. I think it used to be in the TOOLSà ENVIRONMENT menu. Help doesn’t even find it. But if customize your toolbar by TOOLS à CUSTOMIZE SCREEN.

Then going to the COMMANDS tab, the VIEW Category and about half way down is the icon for 3d Notes Display.

That must be activated to see 3D notes (such as thread call outs for tapped holes).

I hope this helps."--Karl Krahmer

As far as I can tell, there isn't a way to accomplish this without the command button in your interface. I can't find an option to do this or a menu option. Logic would suggest it should reside in either VIEW-->DISPLAY SETTINGS-->MODEL DISPLAY or VIEW-->DISPLAY SETTINGS-->DATUM DISPLAY, but this particular display toggle is a ghost.

Thank you everyone for your assistance!

Dave

Coincidently, the same day this thread started I had a student taking the 3D drawing course for WF4, but in CEP5 M140 and the notes were a problem. Still haven't found a solution.
