Any way to import excel/notepad files as spline points or points in 2.0?

Forum|Forum|11 years ago
December 9, 2014
1 reply
5848 views

Hi everyone,

I am having a ton of troubles with trying to use data points from any kind of file to create a curve or set of points. The idea is this: I have the coordinates for an airfoil shape in a .xlsx, .txt, .pts, .sec, you name it, and I want to import that data into a sketch. Then, using that sketch, I would extrude a very simple wing. The trouble is, every time I try to either modify a spline and import a file or do any other kind of fix that I have searched online for, it just does not work. Mostly with these fixes, the bottom-left message bar says, "the spline points have not been changed." I would love to know if anyone has any tips for this problem whatsoever. I can't believe it's harder to do tasks like this than when it was Pro-E still. Thanks for the help. -John

Parametric

Best answer by TomD.inPDX

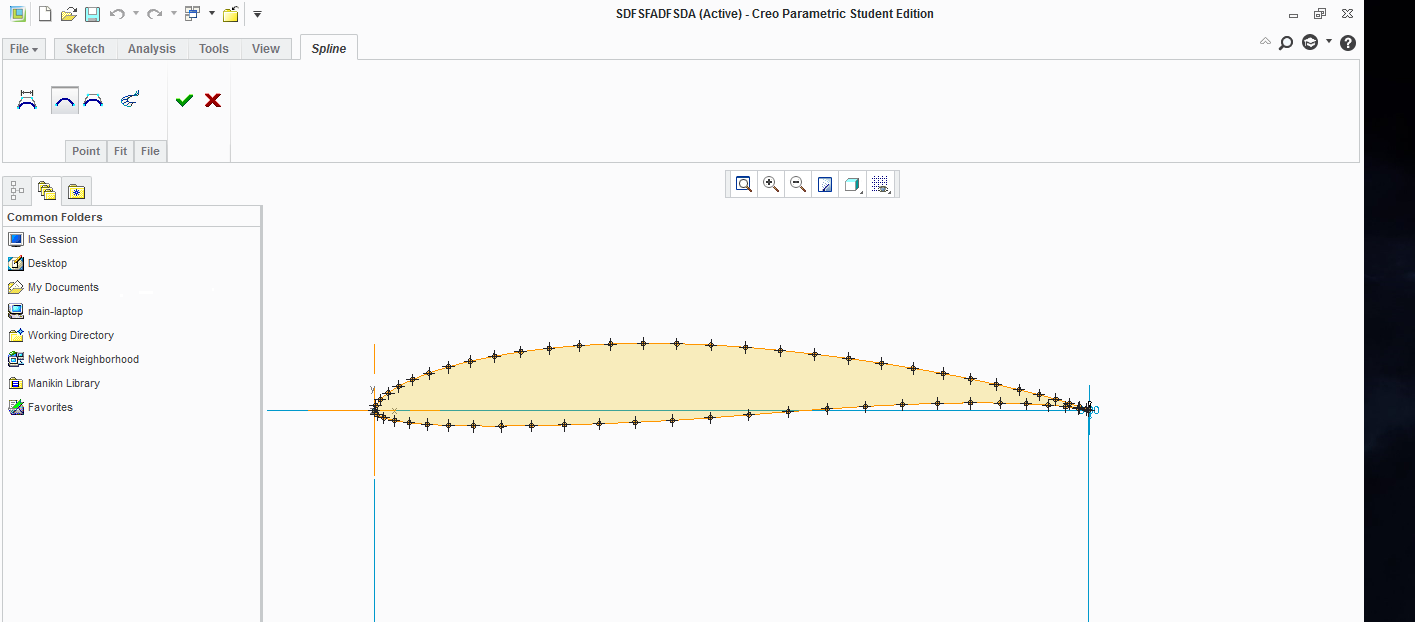

If the <filename>.pts file is 3 coordinate values, it can be imported as a *.pts file.

once imported, you can reference these points for subsequent operations.

Feel free to attach the point file to a message. You can attach files using the advanced editor to confirm your file conforms (upper right of the message screen).

Here is quick sample of a pts entry... no headers!

2.3026 1.4849 -0.1258

2.3131 1.4998 -0.1283

2.3155 1.4994 -0.1284

2.3175 1.4988 -0.1285

2.3236 1.5006 -0.1288

2.3249 1.4993 -0.1288

2.3205 1.5066 -0.1305

2.3291 1.5102 -0.131

2.3284 1.5078 -0.1309

2.3294 1.5064 -0.1309

2.3332 1.5068 -0.1311

2.3285 1.5016 -0.1307

2.3266 1.5105 -0.1326

2.3281 1.5095 -0.1327

2.3309 1.5094 -0.1328

2.3311 1.5075 -0.1327

2.3339 1.5073 -0.1329

2.3308 1.5031 -0.1326

2.3301 1.5128 -0.1346

2.3278 1.5093 -0.1344

...and welcome to the forum!
