Break Line?

  • January 7, 2014
  • 1 reply
  • 2439 views

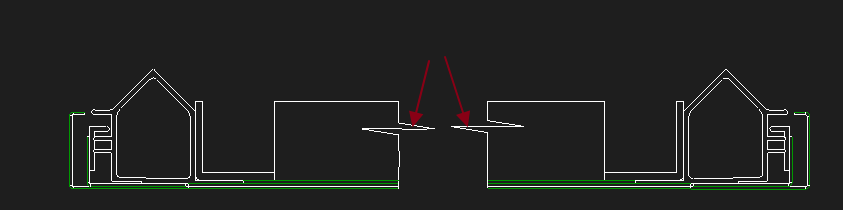

I know there is a setting to change the size of the of the break line, but I can't remember what it is. Can someone please help?


    Best answer by kvanboerdonk

    According to PTC case CS97503

    Set the drawing option witness_line_offset to a desired value

      • The drawing_units drawing setup file option determines the unit of measurement for the witness_line_offsetdrawing setup file option
      • About this option: Sets offset between a dimension line and object being dimensioned. Also controls the size of the line break at the intersection of witness lines

    1 reply

    K
    kvanboerdonk1-VisitorAnswer
    1-Visitor
    January 27, 2015

    According to PTC case CS97503

    Set the drawing option witness_line_offset to a desired value

      • The drawing_units drawing setup file option determines the unit of measurement for the witness_line_offsetdrawing setup file option
      • About this option: Sets offset between a dimension line and object being dimensioned. Also controls the size of the line break at the intersection of witness lines
