Change outer diameter in cylinder with curved slot

Regards,

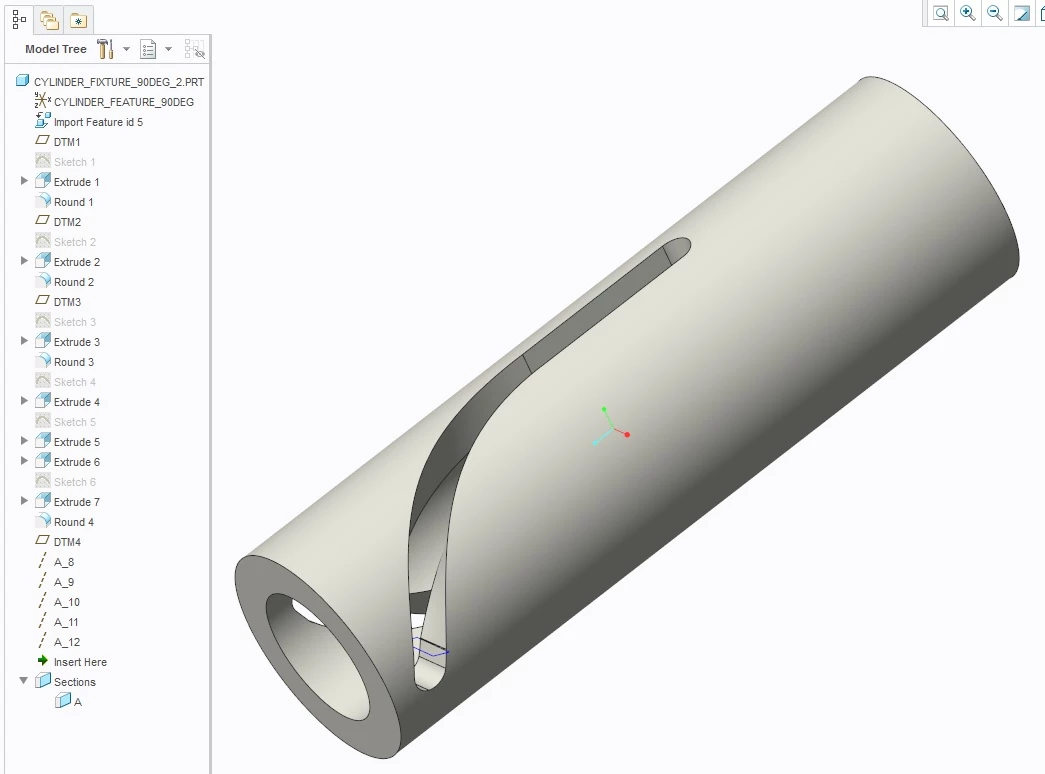

I have done everything I could in order to change the OD=1.600 to OD=1.770 in this model, but every time I try, I loss the slots and curves.

I would like to have the same exact slots shapes and measurements with an OD=1.770.

Please be kind enough to help!

CC

    3 replies

    manjunathrv17-Peridot
    17-Peridot
    May 25, 2016 3:23 PM UTC

    See attached model that i changed but at Dia 1.78.

    Also you may need to fix a round that failed.

    Translate
    ccruz1-VisitorAuthor
    1-Visitor
    May 25, 2016 3:35 PM UTC

    Looks good Manjunath RV, thanks! May I ask how you did it?

    Translate
    manjunathrv17-Peridot
    17-Peridot
    May 26, 2016 4:06 AM UTC

    You need to go to Edit Definition for the import feature and enter into the Import Data Doctor.

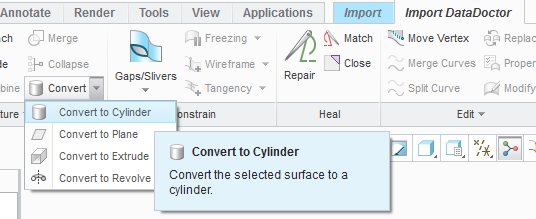

    then select the outer surfaces and select Convert to Cylinder:

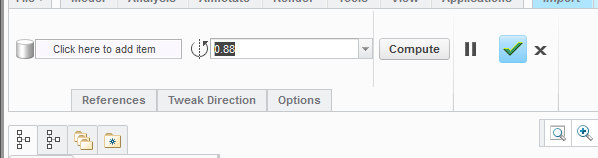

    and enter appropriate value to match your requirement, click Done and complete:
