Colored surfaces in a draw

  • January 3, 2014
  • 2 replies
  • 7590 views

Hi everyone,

I recently try to show colored surfaces of a model into a draw in order to show milled surfaces.

The fact is I did not managed to do it, even with the option "color from model".

Can somebody can help me with this problem please?

I actually work with Creo 1.0

Best answer by MartinHanak

Gilles,

you have bad luck . Color from model is displayed on the drawing only if you color whole model (not specifiic model faces).

In Part mode you can select specific model faces and create their copy (CTRL+C, CTRL+V). This way you will create Surface quilt which is displayed in Quilt color on the drawing.

Martin Hanak

2 replies

P
PedroNeves1-Visitor
1-Visitor
January 3, 2014

Hi,

are you asking for a shaded view ?!


P
ptc-42967401-VisitorAuthor
1-Visitor
January 6, 2014

Hi Pedro,

I was not asking about a shaded view (in fact I did not even think about trying to show surfaces into a shaded view).

I was asking about a simple view (front, left, right, etc...) but I guess a colored shaded view will do the job.

Thank you for the thought! 😉

P
PedroNeves1-Visitor
1-Visitor
January 6, 2014

Hi Gilles,

you can use shaded representation in all kind of views (Front, back...)

If you are using the display style as "hidden",the option "color from model" will only colored the edges of the view.

Best regards

Pedro Neves

P
ptc-42967401-VisitorAuthor
1-Visitor
January 7, 2014

Hi Pedro.

Your method works but in my case, I did not apply a color directly on the part but on specific surfaces.

Do you know if there is a way to get colors in a front view (for exemple) when only few surfaces are colored and the display style is set on "hidden"? Because I do not manage to do it and would like to know if it is possible or not.

P
PedroNeves1-Visitor
1-Visitor
January 7, 2014

Hello again,

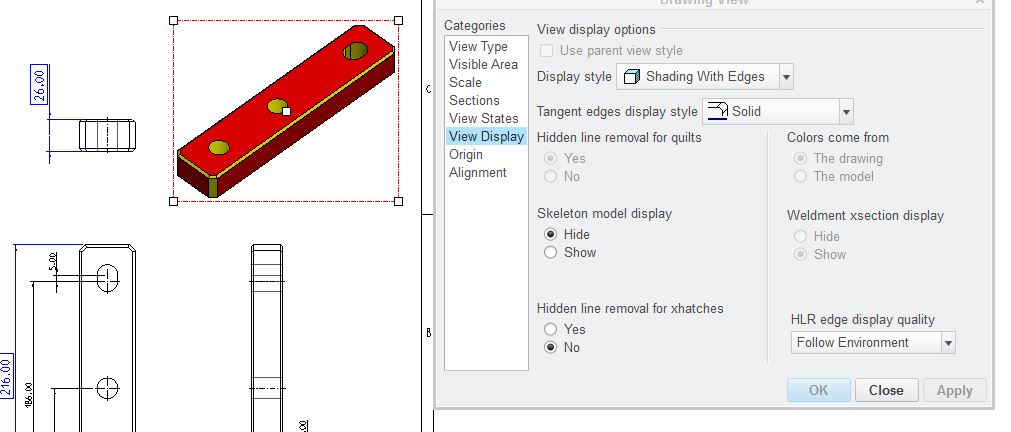

i'm not sure if i understand what you want to do, but when i want to show the colors of the surfaces and at the same time other features, i use a shaded view with transparency.

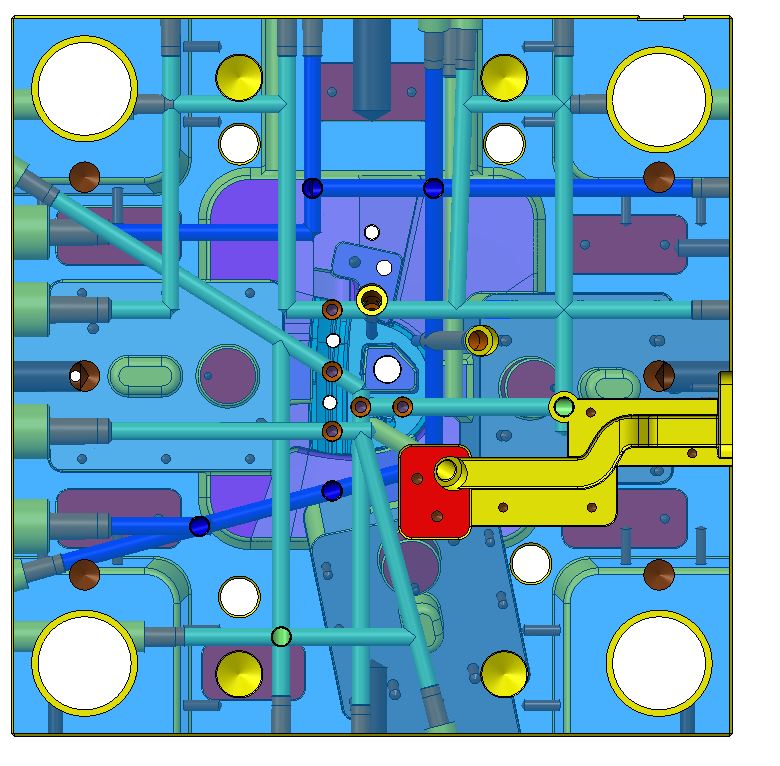

Top view

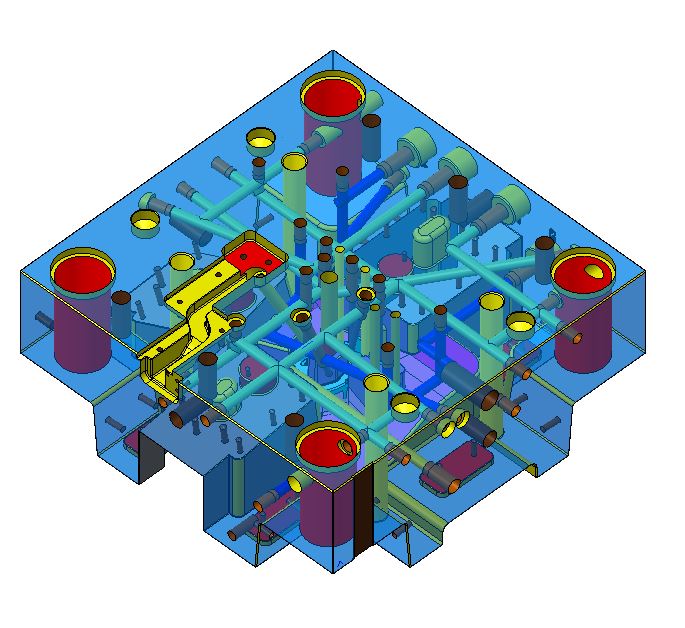

iso
