how do i create/save a combined state

    2 replies

    1-Visitor
    December 21, 2009
    In WF3, View > View Manager > All tab. The only thing that really tells
    you it's a combined state is that the default name is "Comb0001" when
    you created a new view there.



    Hope this helps.

    Tyler
    1-Visitor
    December 21, 2009
    To follow up on Tyler's suggestion, you can modify the new state by

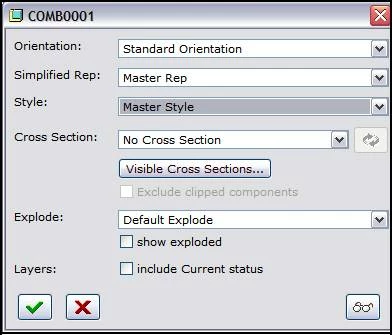

    clicking edit --> redefine. You'll get this pop up:







    Combined states are very useful for setting up an exploded view drawing
    of simp reps. When you add a new drawing view you'll be prompted for
    the combined state and your view will already be set up for view,
    exploded state, and simp rep state.





    -Matt





    Matt Gortner | Mechanical Engineer

    CHASEDESIGN, LLC
