Connect 3d curves? Removal of material?

I'm sorry to be asking for basic help but I seem to be having a hard time.

Edit: 3d curve is referred to as wireframe in other cad programs?

I am attempting to make a body with space hollowed out inside.

I've created a circle and pulled it a distance through the body which hollowed out an area.

I then moved the work plane down and created the internal shapes I need... Except now the material is not being removed from the outer body (no internal space created).

How do I remove material from a body using 3d curves?

Also how to I attach 3d curves to each other.
Arrows in my image are pointing to where there is a disconnect between features.
I've also attached my wip so feel free to get me going in the right direction.

Thanks for the help.

Truly appreciated.

    FriedhelmKAnswer
    17-Peridot
    January 29, 2015

    Hello Charles

    i dont know how to

    >How do I remove material from a body using 3d curves?

    But there are other ways to achive the Goal.

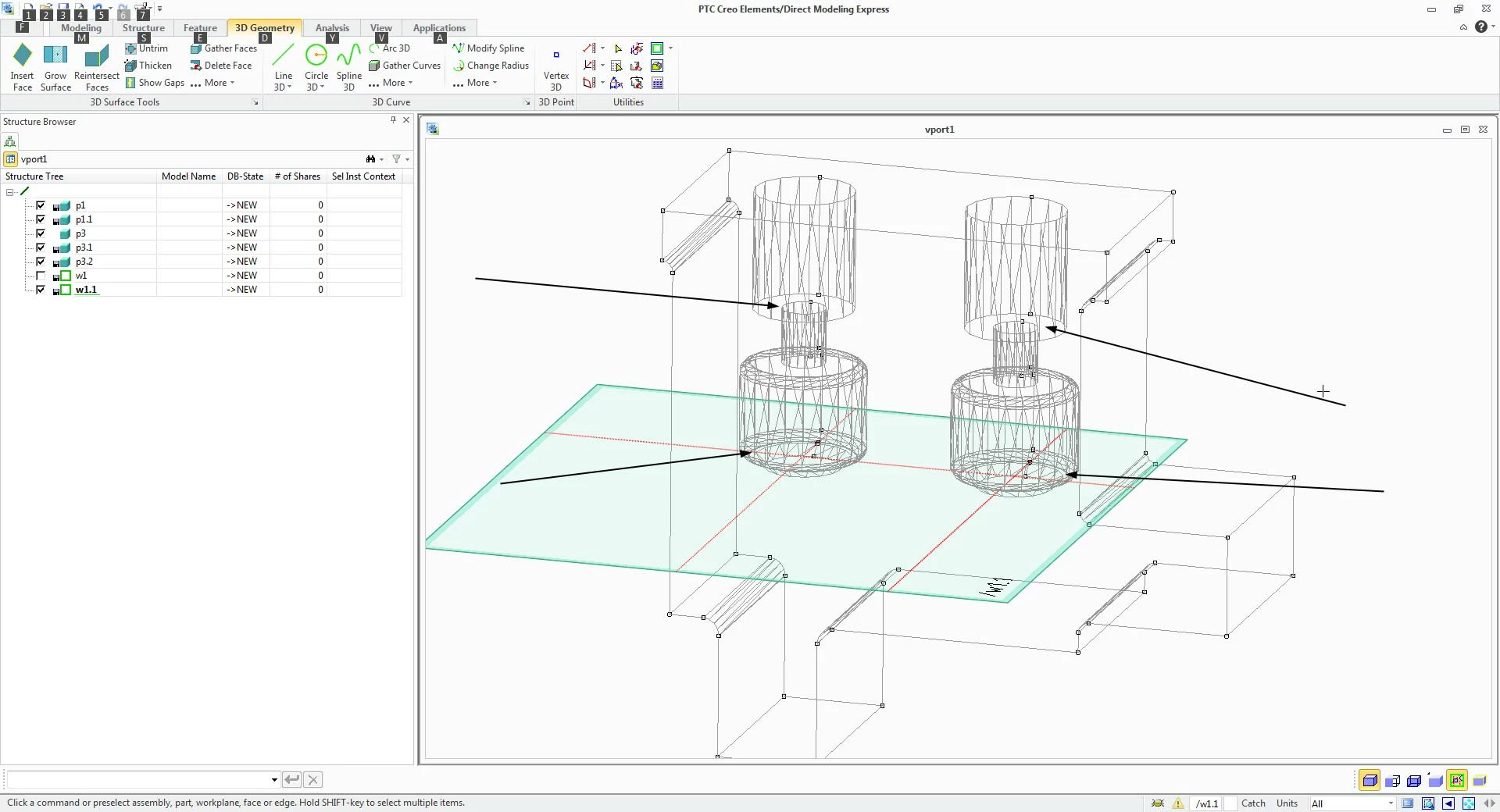

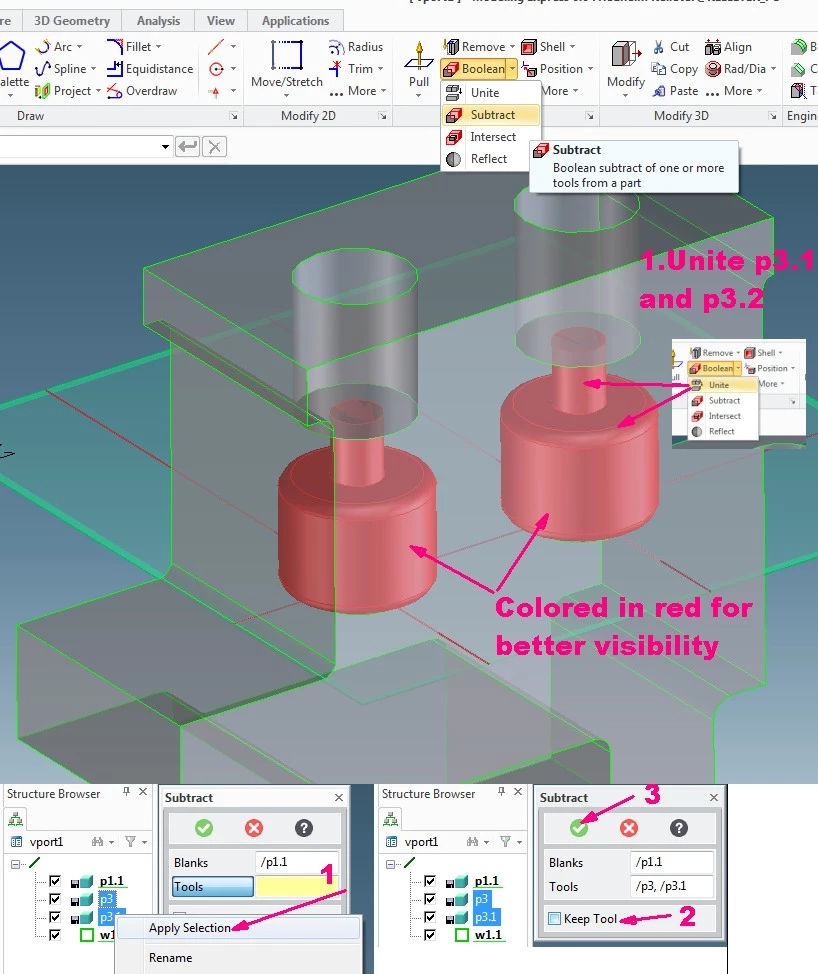

    Have a look at the attached pictures.

    Much success and fun with the program

    View in thread

    3 replies

    FriedhelmK17-PeridotAnswer
    17-Peridot
    January 29, 2015

    Hello Charles

    i dont know how to

    >How do I remove material from a body using 3d curves?

    But there are other ways to achive the Goal.

    Have a look at the attached pictures.

    Much success and fun with the program

    Translate
      CJB_JHB1-VisitorAuthor
      1-Visitor
      January 30, 2015

      Thank you!

      Simpler than I expected.

      Now I'm having to make a feature that I can't figure out how to create.

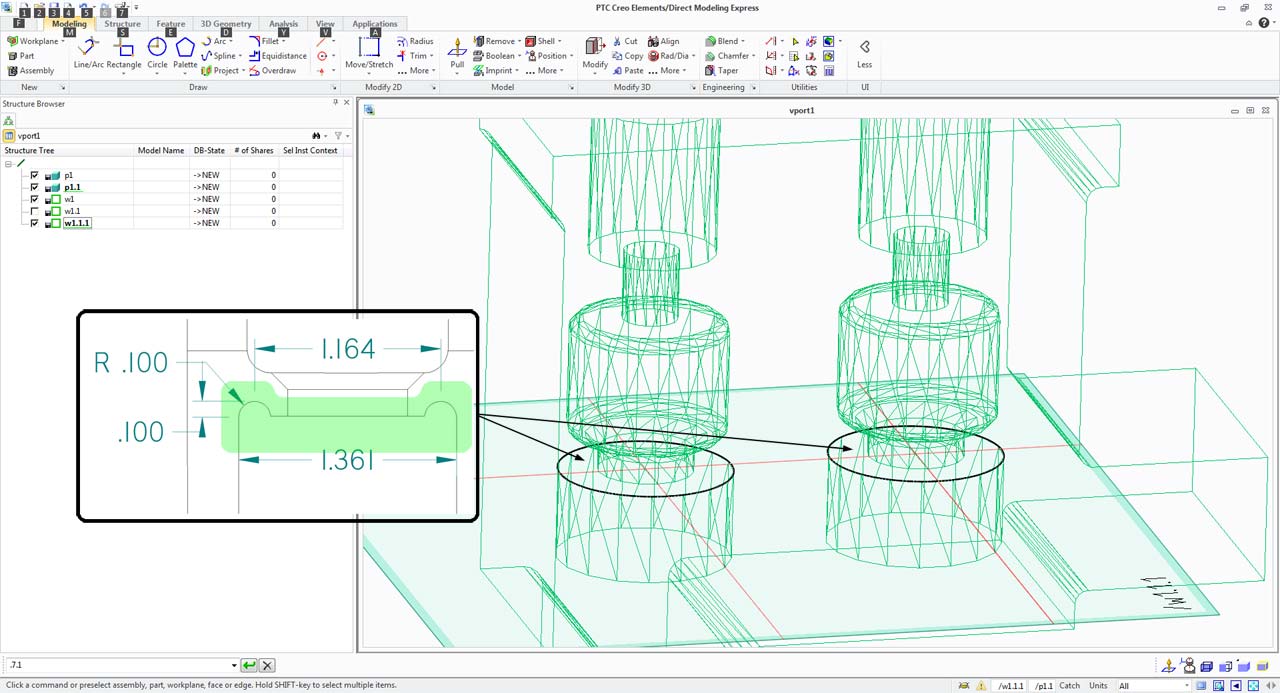

      Can I make this feature with circles?

      Image and file attached. feature3.jpg

      Translate
      FriedhelmK17-Peridot
      17-Peridot
      January 30, 2015

      Hello Charles

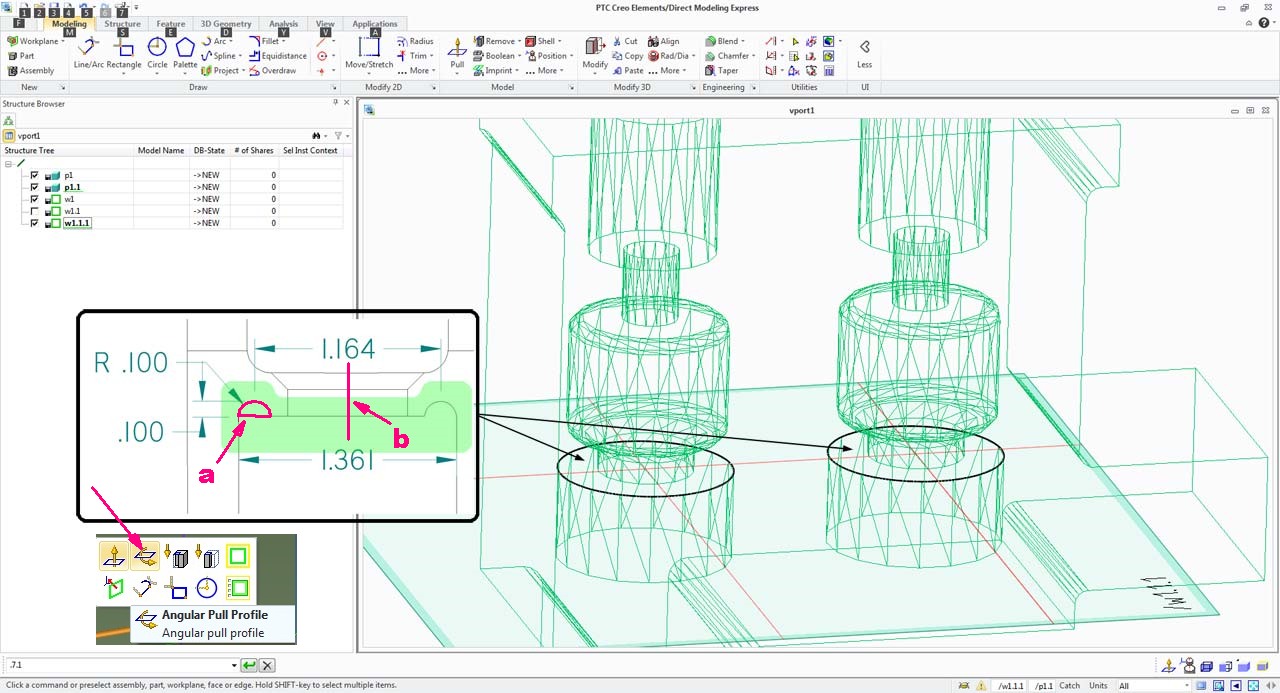

      you could again remove with angular pull.

      Create a new workplane on axis of the inner form.

      Then get the existing elements like in te following picture.

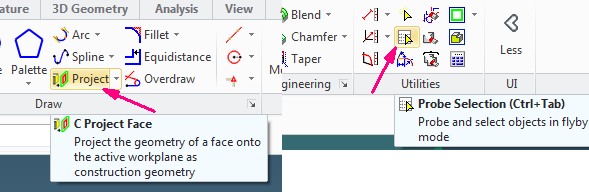

      With the Probe Selection it is possible to catch elements inside of a part.

      Push the button, klick on the part where is the element what you want to get.

      A table comes up and wen you go slowly with the cuser over them, the elements will by highligted.

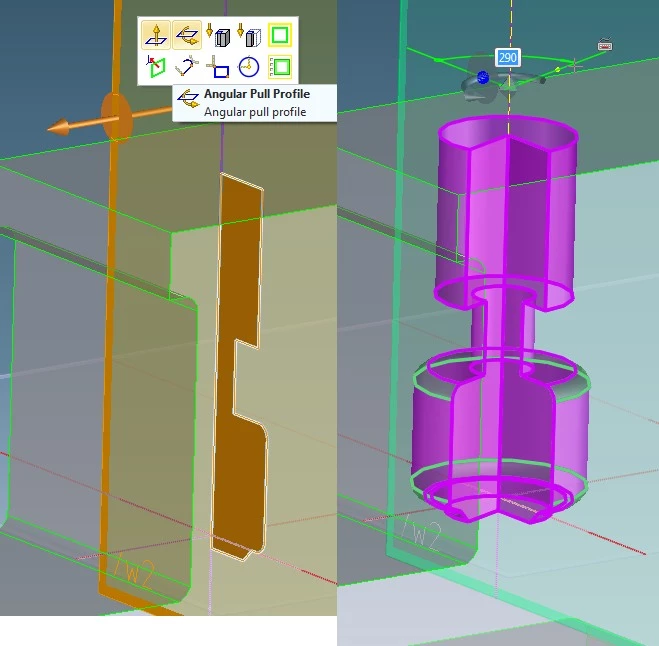

      Then switch of the part, draw geometry a and remove material with angular pull arround axis b.
