Constant force spring model

  • September 16, 2010
  • 2 replies
  • 8438 views

Does anyone have a model of a constant force spring? See image. How would you model this in Pro/E?


    Best answer by DavidButz

    For example:


    This was started with a Curve From Equation / Cylindrical with the relations:

    x=2+t*2

    r=t*360*5

    z=0

    Then create a Sketched Curve, copy the first Curve with Use Edge, add the end details, and use this Curve to create a Sweep.

    2 replies

    D
    DavidButz1-Visitor
    1-Visitor
    September 16, 2010

    Probably the easiest way is to create a Curve by Equation for the spiral and build from there.

    D
    DavidButz1-VisitorAnswer
    1-Visitor
    September 16, 2010

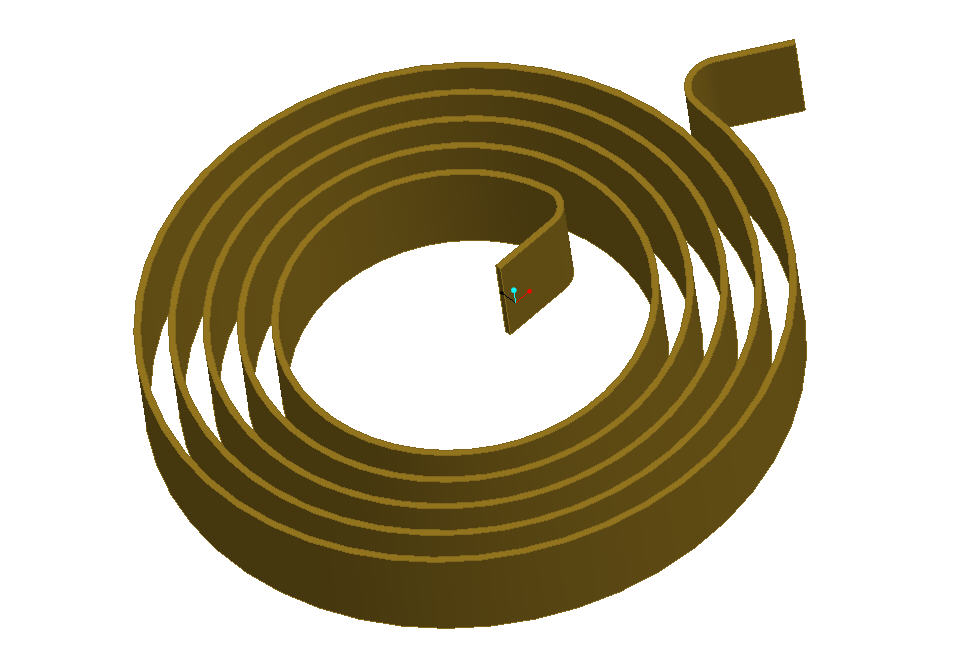

    For example:


    This was started with a Curve From Equation / Cylindrical with the relations:

    x=2+t*2

    r=t*360*5

    z=0

    Then create a Sketched Curve, copy the first Curve with Use Edge, add the end details, and use this Curve to create a Sweep.
