Counter bore hole customization

  • February 11, 2015
  • 2 replies
  • 3729 views

Hi everyone.

can anyone tell me how to modify a counter bore hole havong custom size.........

I wanted a CBR hole having dimensions D=0.218 deep=0.051: d=0.157 through.

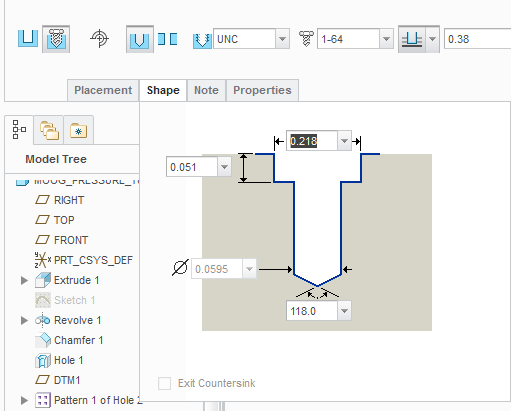

In creo the option to enter 'd' value wasn't highlighted.

Please someone help me out here.

Thanks in advance.

    2 replies

    B
    bvinay1-VisitorAuthor
    1-Visitor
    February 11, 2015


    T
    TomD.inPDX17-Peridot
    17-Peridot
    February 12, 2015

    Tapped holes are driven by hole tables which fixes the drill size for the tap.

    You would create a second through hole using the normal hole rather than tapped.

    You have to play a little with teh dialog. There is alot hidden under those buttons. It includes standard clearance holes for certain bolt sizes, countersinks, and other stuff.

    B
    bvinay1-VisitorAuthor
    1-Visitor
    February 19, 2015

    Thank you guys.

    I got the way to do it.

    Thank you.
