Create chamfer with constant width

  • March 10, 2016
  • 1 reply
  • 1276 views

Is there an easy way to create a chamfer with a constant width?

I would like to control the distance from edge to edge of a chamfer between varying surfaces.

    1 reply

    T
    TomD.inPDX17-Peridot
    17-Peridot
    March 11, 2016

    For now, you probably have to leverage the new capability of rounds in Creo 3.

    Use the round as a surface and use its edges to guide a sweep/cut as a variable section sweep.

    T
    TomD.inPDX17-Peridot
    17-Peridot
    March 11, 2016

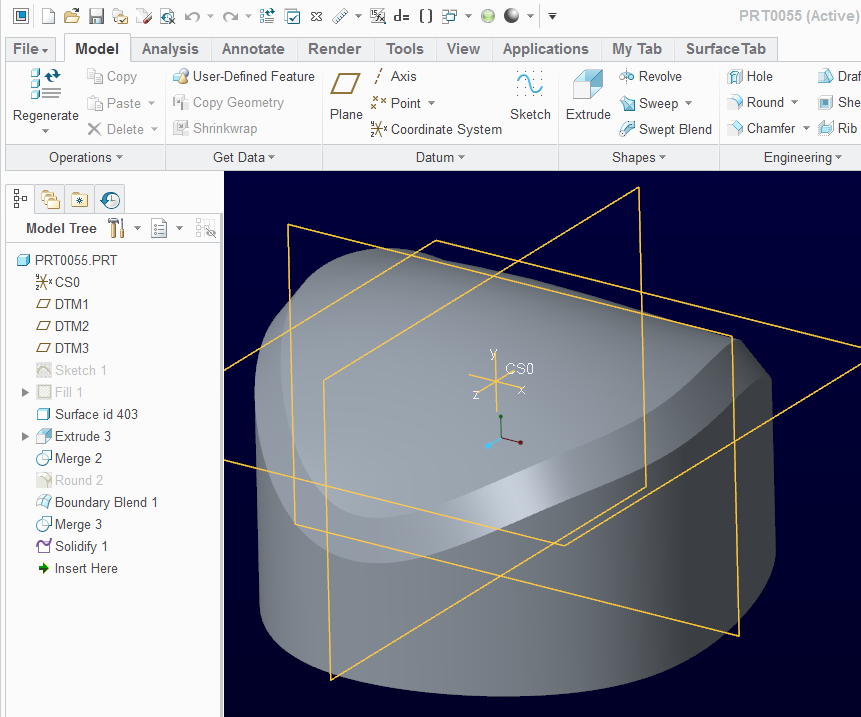

    ...Or this (Creo 3 commercial version attached)
