Creo 3 Detail View Question

  • December 7, 2015
  • 2 replies
  • 4920 views

How can I edit the attachment point of my "SEE DETAIL ?" note when I use the ellipse boundary type on the parent view in Creo 3? I've tried right mouse clicking, and there's no option there.

Thanks in advance for your help,

Geoff

Best answer by mender

I see Edit Attachment there, whether I'm in Layout or Annotate or Sketch tab, so I don't know what's different about your case (other than that I'm running a more recent version, which seems unlikely to be the cause).  If you file an SPR, should be simple to figure it.

2 replies

M
mender12-Amethyst
12-Amethyst
December 7, 2015

RMB with the mouse over the leader line for Edit Attachment.

G
gbaxter1-VisitorAuthor
1-Visitor
December 7, 2015

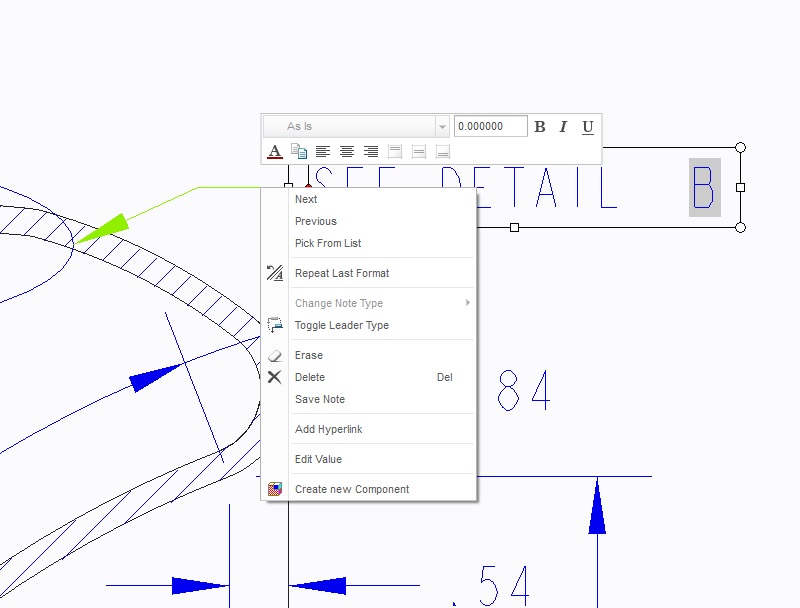

Not seeing it. Do I have to be in a specific ribbon? I'm using M030.


M
mender12-Amethyst
12-Amethyst
December 7, 2015

You're showing the RMB menu for the note.  You want the one for the leader.  To get this, put your mouse over the angled line that ends in the arrow and RMB (but not over the arrow itself, which will get the arrow's RMB for changing the arrow style).

D
dnordin16-Pearl
16-Pearl
December 8, 2015

Geoff,

As an FYI, in the earlier build codes of CP3, you can change the attachment of the arrow on non-circular detail view boundaries via ANNOTATE > ATTACHMENT.  It is additional work to switch tabs to change the attachment.  If the right click is back in the newer build codes of CP3, that's great.

Regards,

Dan N.

    G
    gbaxter1-VisitorAuthor
    1-Visitor
    December 9, 2015

    Ugh, so obvious, and yet, not obvious. Thanks, Dan!
