Question

Cross Section Area

  • August 11, 2005
  • 4 replies
  • 6266 views
OK, I'm using this thing a lot today.

Does anyone know if it is possible to get the area of a Cross Section from
Pro/E?

Thanks,

Erik Olsen

    4 replies

    B
    bgruman1-Visitor
    1-Visitor
    March 3, 2015
    Hi All,
    I'm sure I'm missing something simple, but it has been a few years since I
    have done this and am suffering from "old-timers".

    I've created a cross-section of a solid. How do I measure the area of
    that section?

    TIA!
    Bernie

    --
    Bernie Gruman
    Owner / Designer / Builder
    www.GrumanCreations.com
    B
    bgruman1-Visitor
    1-Visitor
    March 3, 2015
    OK, so I can pick the section, right click and select "create a curve".
    Then create a "fill" feature using that curve, then measure that new
    surface... Do I really need to go to that much work? I thought there
    used to be a simple "Measure Area" tool that would let you pick cross
    sections...

    On Tue, Mar 3, 2015 at 2:37 PM, Bernie Gruman <->
    wrote:

    > Hi All,
    > I'm sure I'm missing something simple, but it has been a few years since
    > I have done this and am suffering from "old-timers".
    >
    > I've created a cross-section of a solid. How do I measure the area of
    > that section?
    >
    > TIA!
    > Bernie
    >
    > --
    > Bernie Gruman
    > Owner / Designer / Builder
    > www.GrumanCreations.com
    >
    >
    D
    dmartin11-Garnet
    11-Garnet
    March 4, 2015

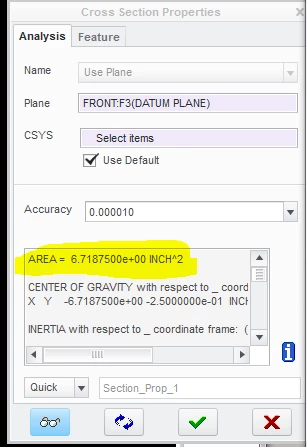

    Btw measuring the area of a closed loop in a sketch is on our wishlist. We had to follow the process you mentioned (complete the sketch, create a fill surface, and then measure the area of the fill surface, just to get the area of the closed loop in the sketch. (We hadn't generated a solid yet, so the Cross Section Mass Properties wasn't available to us.)


    David R. Martin II


    Senior Mechanical Design Engineer


    Amazon Prime Air
