Hi guys

I havnt used creo for a while and i need to model a washer with a curved slot on the od to a depth. The washer is 50dia 12mm thk. The slot is 6wide 4deep and rotates 30 degrees. Thanks mick

    2 replies

    B
    23-Emerald III
    BenLoosli23-Emerald III
    23-Emerald III
    March 14, 2016

    Model the washer, then add datum planes for the slot thickness (6mm) and sketch it, extrude with material removal.

    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    March 17, 2016

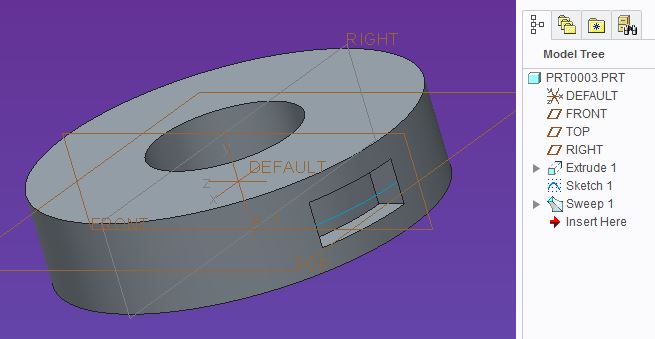

    Are you looking to do something like this.  The washer is centered on the top plane.  The sketch is on the top plane with 30 degrees of the edge projected.  The sweep is 6 mm X 4 mm.


    There is always more to learn.
