Detailed view sectioned while view it's taken from is not.

  • April 25, 2013
  • 1 reply
  • 6535 views

There may be a simpler way to do this. If so, enlighten me.

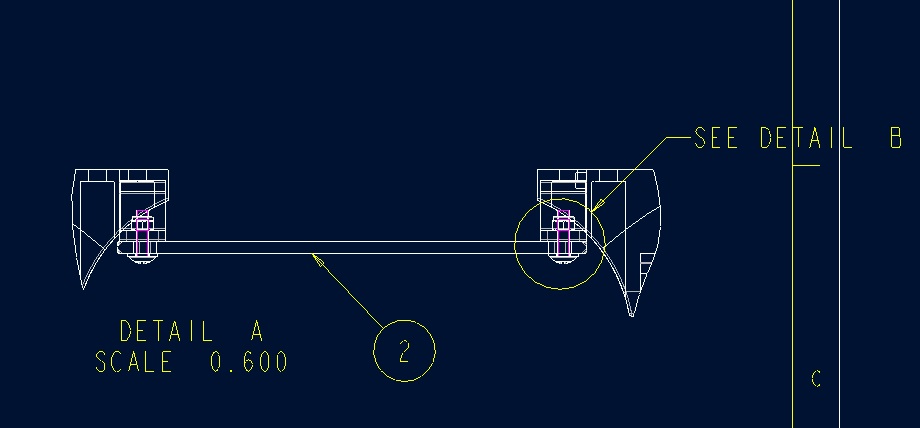

I am making a detailed view (actually of a detialed view - but I digress).

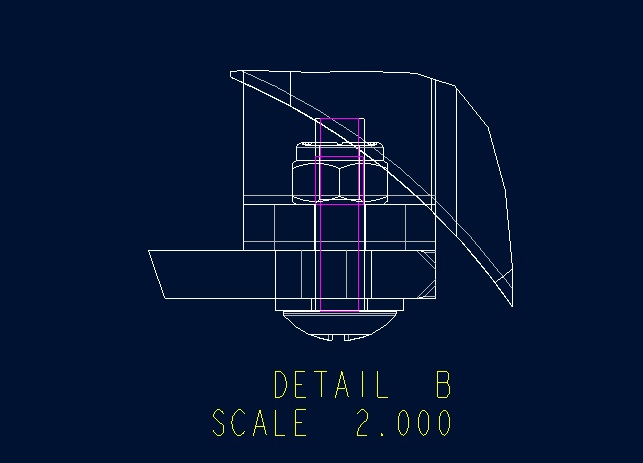

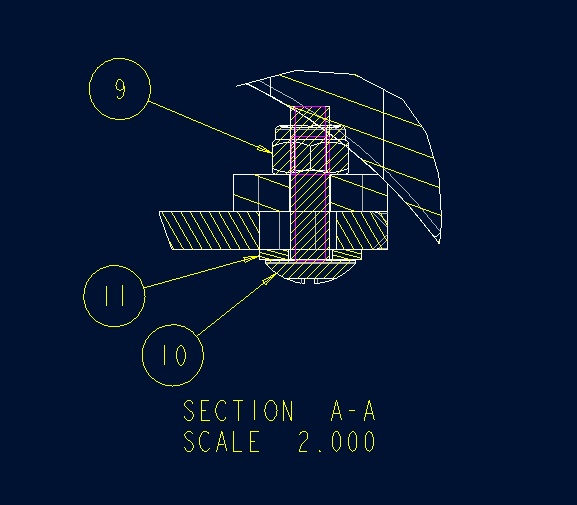

I would like to make detailed view B to be sectioned (showing cross hatching) through the centerline of the screw but I can't seem to do this.


But I can make a general view, but it then doesn't have the detailed view circle.


Thanks,

Dale

    Best answer by StephenW

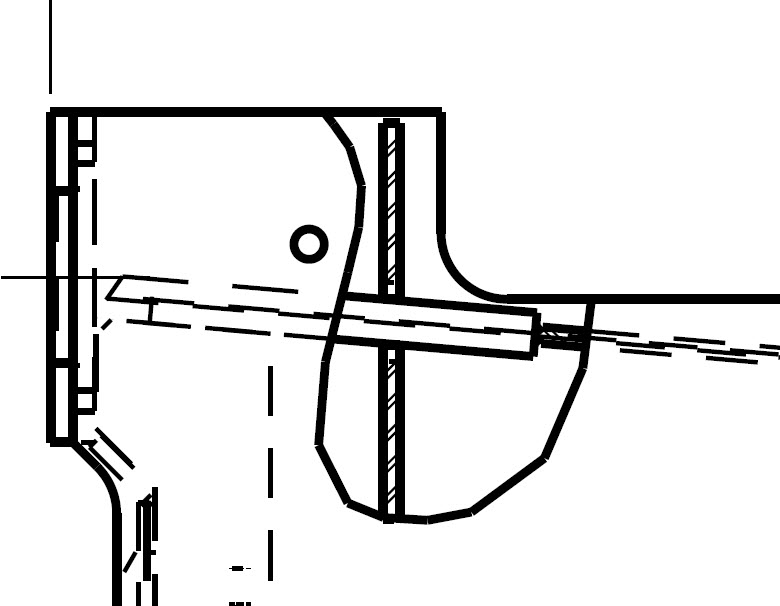

    Since the detail view is just a scaled up area of the original view, you will have to add the cross section to the original view (in your case, the view where detail A comes from. Make it a LOCAL cross section (breakout) so it only shows up in the area you need it and not the entire view.


    1 reply

    S
    23-Emerald III
    StephenW23-Emerald IIIAnswer
    23-Emerald III
    April 25, 2013

    Since the detail view is just a scaled up area of the original view, you will have to add the cross section to the original view (in your case, the view where detail A comes from. Make it a LOCAL cross section (breakout) so it only shows up in the area you need it and not the entire view.


      Dale_Rosema
      23-Emerald III
      Dale_Rosema23-Emerald IIIAuthor
      23-Emerald III
      April 25, 2013

      Is there then a way to turn it off in either the parent view &/or Detail A?

      S
      23-Emerald III
      StephenW23-Emerald III
      23-Emerald III
      April 25, 2013

      Nope, since it's a real detail view, you are stuck with it coming from the original view.
