functionality missing in Creo 2.0?

  • February 12, 2013
  • 1 reply
  • 1214 views

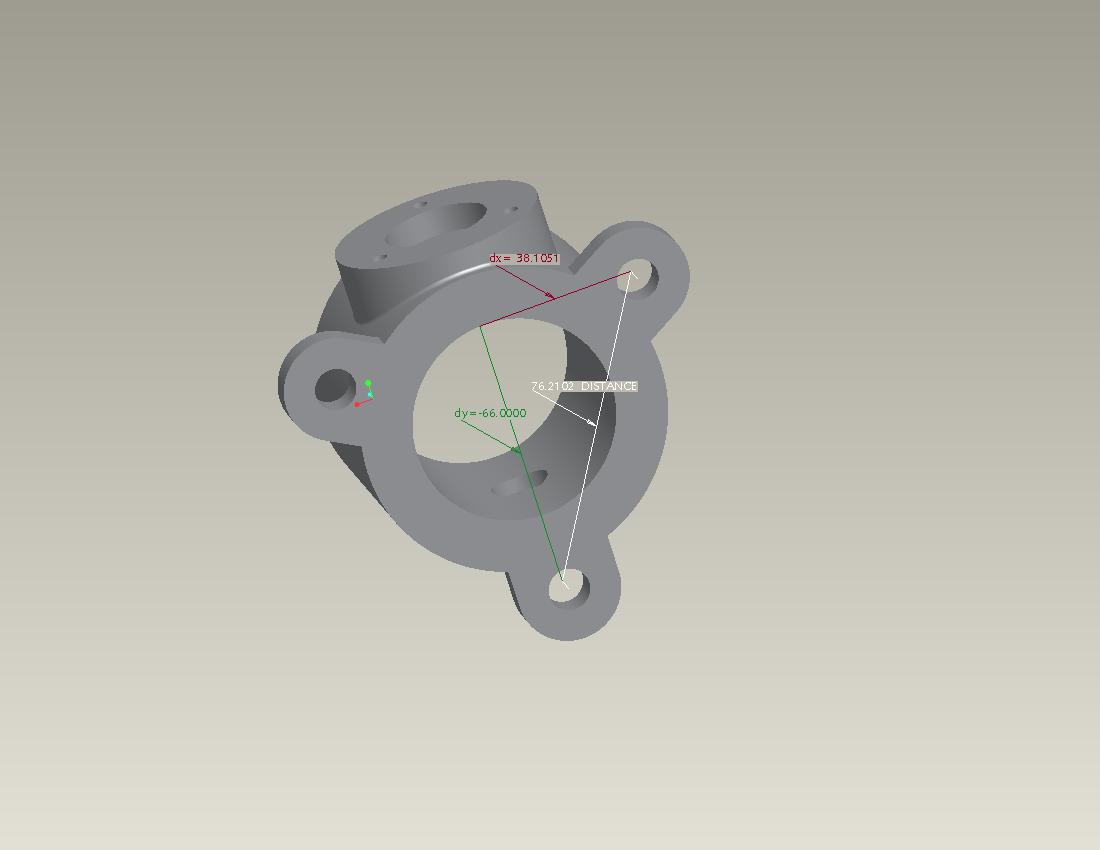

previously while using the measure option ( proe 4 or proe 5) i could do this, to get the measurement along coordinate system.

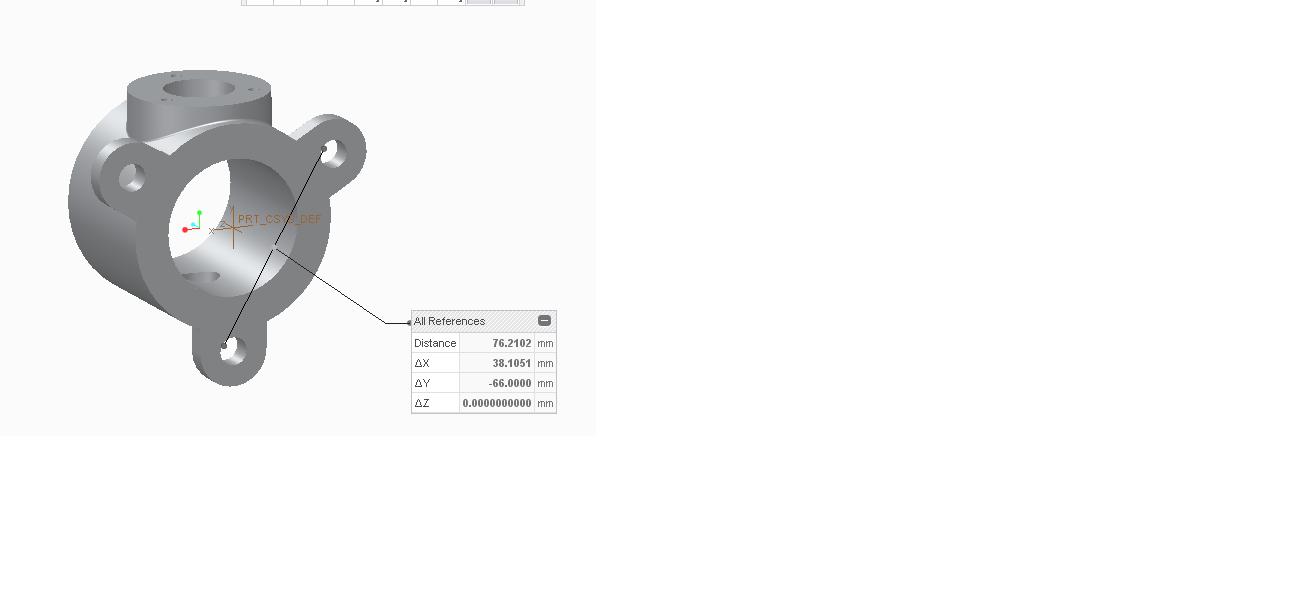

but know in creo 2.0 , it does not give the reference of x and y along coordinate system.

it just gives the measurement in a box.


    1 reply

    T
    TomD.inPDX17-Peridot
    17-Peridot
    February 12, 2013

    That is what those delta references are in the dialog.

    It is using the CSYS projection reference from the expanded measure distance dialog box

    R
    rohit_rajan15-MoonstoneAuthor
    15-Moonstone
    February 12, 2013

    thanx for the reply.

    i know those dimensions are shown in that box....but as you can see the reference line in the image from proe 5.....those reference lines are missing in creo 2.0...

    T
    TomD.inPDX17-Peridot
    17-Peridot
    February 12, 2013

    True. I am not impressed with the new measuring scheme at all.

    If you use a datum plane as a projection reference, it will at least draw dashed lines to show what the reference is related to.
