Solved

Help with curve and meaning of symbol in parametric

  • September 9, 2015
  • 3 replies
  • 2599 views

Hello i need help with an easy task. I should do an curve witch i think exist of three arcs, but it should be done Exactly like in the first Picture(same symbols, same numbers and so on). As u can see, ON the two arcs in the first picture it is an symbol witch looks like a spline, what does it mean and how should I proced to make this like they do in the first pic?

First Picture:

http://imgur.com/rLLMPFr,N9hk6Ty

Second Picture (where I am)

http://imgur.com/rLLMPFr,N9hk6Ty#1

    Best answer by MartinHanak

    Bjorn,

    reference geometry can be selected from the same part or from another one in context of assembly. See picture.


    Martin Hanak

    3 replies

    J
    jchen-61-Visitor
    1-Visitor
    September 10, 2015

    你好，我不知道。我也想学习Creo 2.0

    T
    TomD.inPDX17-Peridot
    17-Peridot
    September 10, 2015

    That is a projected curve from an external source.

    M
    MartinHanak24-Ruby IIIAnswer
    24-Ruby III
    September 10, 2015

    Bjorn,

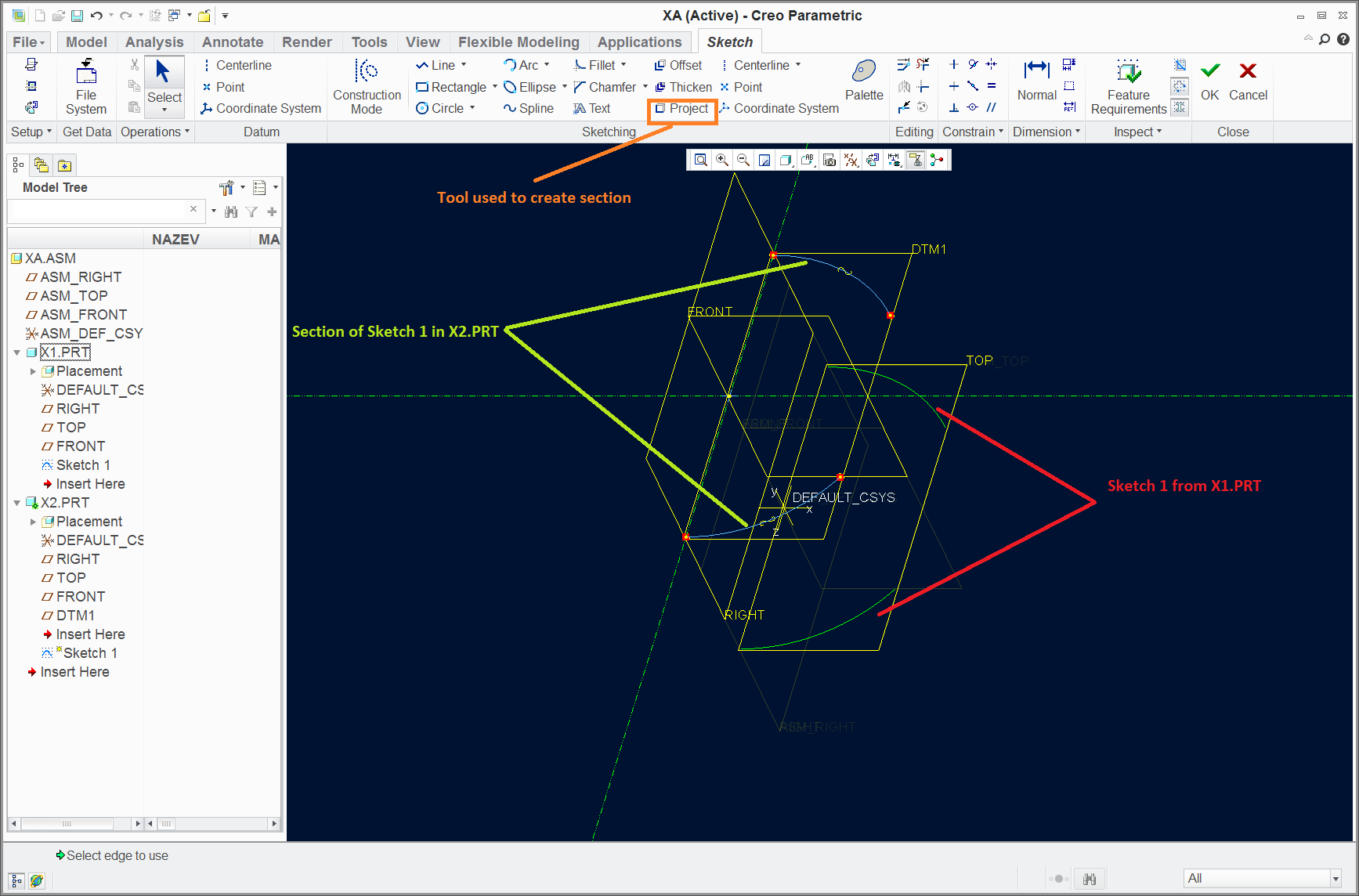

    reference geometry can be selected from the same part or from another one in context of assembly. See picture.


    Martin Hanak

    B
    bbrannerud1-VisitorAuthor
    1-Visitor
    September 12, 2015

    Okey, but there is not any curve that I can Project there?

    T
    TomD.inPDX17-Peridot
    17-Peridot
    September 15, 2015

    There were... maybe hidden?

    In a sketch, projected curves can be trimmed or extended.

    The seed curve could be smaller.
